EMC MEMBRANE PANEL
Operator Controls
EMERGENCY STOP Button
Pressing this red button stops the dryer immediately (the
controller will remain on). Once activated, the dryer cannot
be restarted until this button is manually reset. Turn clock-
wise to reset.
START Button
Push button that activates the controller functions and starts
the dryer (i.e. the Dryer On LED lights).
STOP Button
Push button that deactivates the controller and stops the
dryer (i.e. the Dryer On LED is off).
Up and Down Buttons
Used to change the display for the right-hand column of
LEDs when the DISPLAY SELECT button is pressed. These
buttons are also used to select the temperature display
units (see Fahrenheit and Celsius LED descriptions) when
the display is showing the Process Control Temperature.

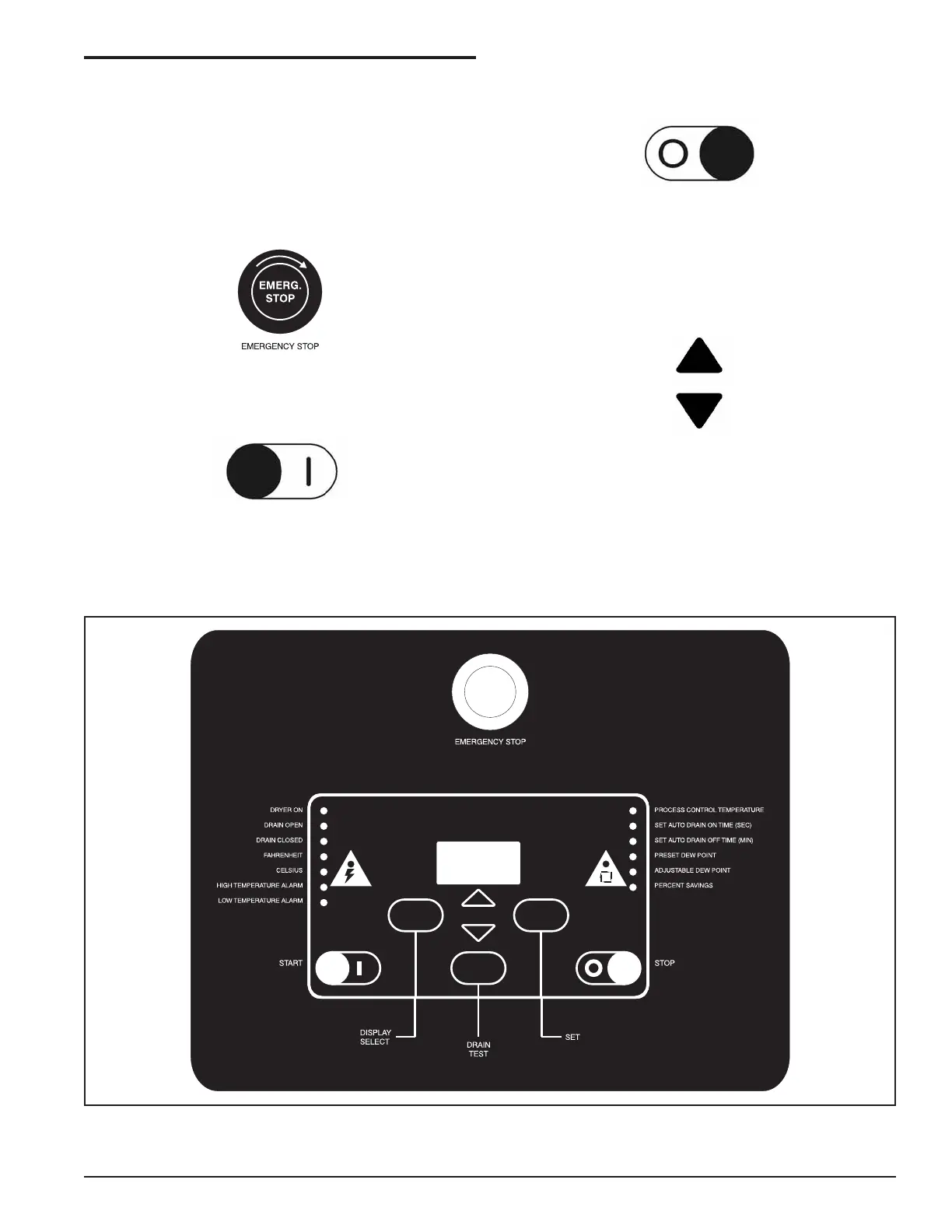

Figure 3
Energy Management Controller Membrane Panel
