Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 53
Parts required:
1. Pt. No. 40C1241 Door arm guide
Brief description:
It has been identified that in transit and under some operating conditions the door arm can lift and
become jammed behind the lever on Microswitch SW1. The subsequent door arm operation then
permanently damages the microswitch arm and the oven becomes unusable.
When fitted, the door arm guide protects the microswitch lever and prevents this condition from
occurring.
This part is fitted as standard on all models from Serial No. 144460505, May 2005
Switch oven off and isolate from mains supply prior to carrying out
this modification.
1. Remove the top cover and Left hand side panel
When to perform this upgrade:
On inspection of the oven if the microswitch arm has been damaged by the door arm.
( Ovens manufactured before Serial No. 144460505, May 2005 )
2. Undo the 2 self tapping screws holding fuse bracket
(F5 & F1).

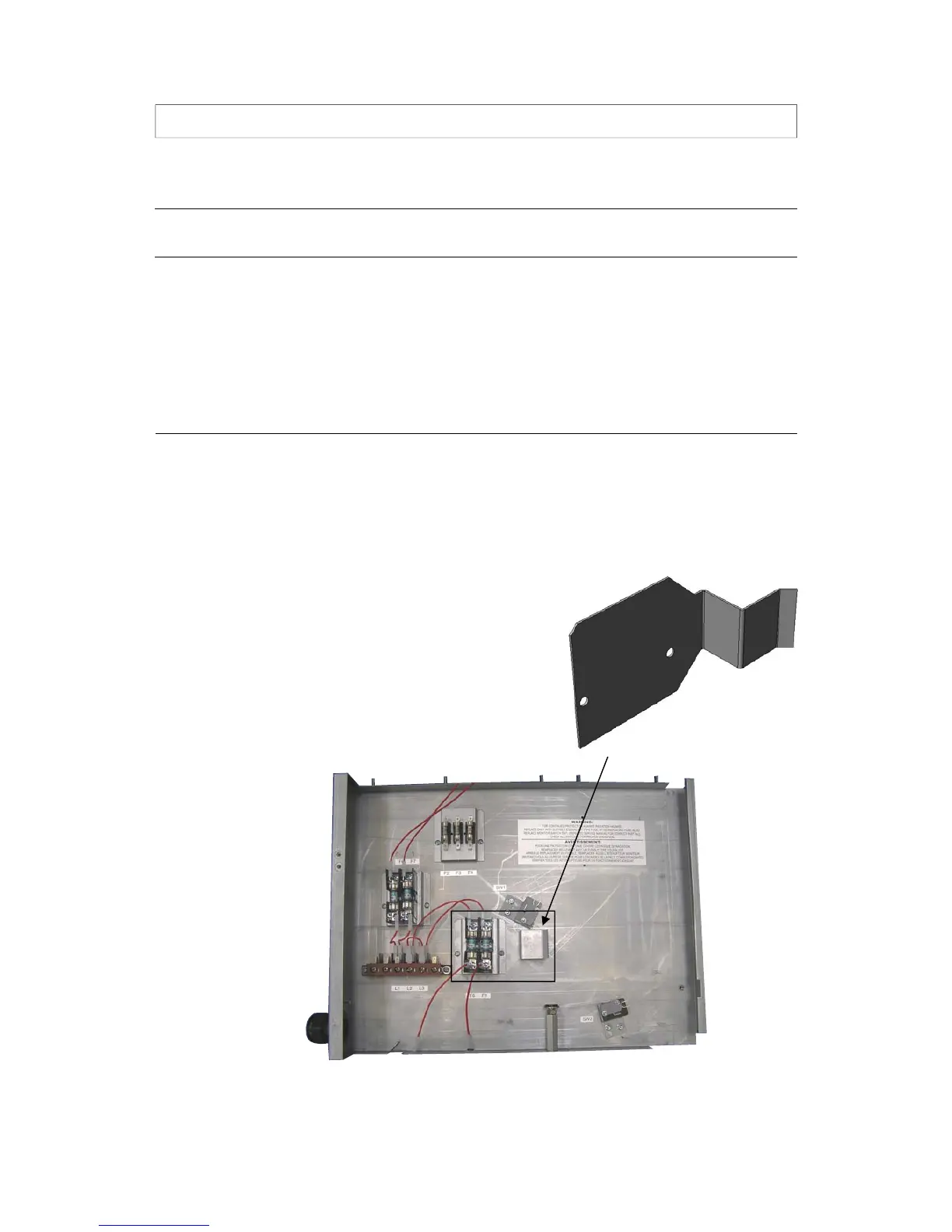

Slide the Door arm guide behind the fuse
bracket assembly and align the holes.
Secure in place with the 2 self tapping screws.
3. Replace covers and screws
Part No.
40C1241
LH side only
Door arm & spring not shown for clarity
APPENDIX 8: Door arm guide
Door arm guide upgrade
Ovens manufactured before Serial No. 144460505, May 2005
