Garland Mealstream CTM3 User Manual

Mealstream Ovens Pt. No. 32Z3403 Issue 16
Page 9
14
12
Left side
13
11
1A
2A
3A
6
1
2
3
4A
4
5A
7
9
8
No Description 208V 240V
1 Fuse holder 30Z0231 30Z0231
1A Fuse 10 amp 30Z0217 30Z0217
2 Fuse holder 30Z0231 30Z0231
2A Fuse 10 amp 30Z0217 30Z0217
3 Fuse holder 30Z0285 30Z0285
3A Fuse 1 amp 30Z0957 30Z0957
4 Fuse holder 30Z1178 30Z1178
4A Fuse 20 amp 30Z1177 30Z1177
5 Fuse holder 30Z1178 30Z1178
5A Fuse 20 amp 30Z1177 30Z1177
6 Electrical supply terminal block 31Z0149 31Z0149
7 Filter ( Heater circuit ) 30Z0997 30Z0997
8 Filter ( Microwave circuit ) 30Z0997 30Z0997
9 Door spring 40C1141 40C1141
9 Door spring
A
Modification Kit 10C0177 10C0177
10 Door arm stop assembly
C
11C0279 11C0279
11 Microswitch ( Primary ) 30Z0240 30Z0240
12 Door hinge assembly ( LH )
B
11C0167 11C0167
13 Door arm assembly 11C0300 11C0300
14 Microswitch ( Monitor ) 30Z0240 30Z0240
112 Internal Filter LHS 40C0962 40C0962
118 Microswitch support bracket 40C0851 40C0851
Note B:
See page 17 for
parts
5
Note A:
Ovens before
June 2003

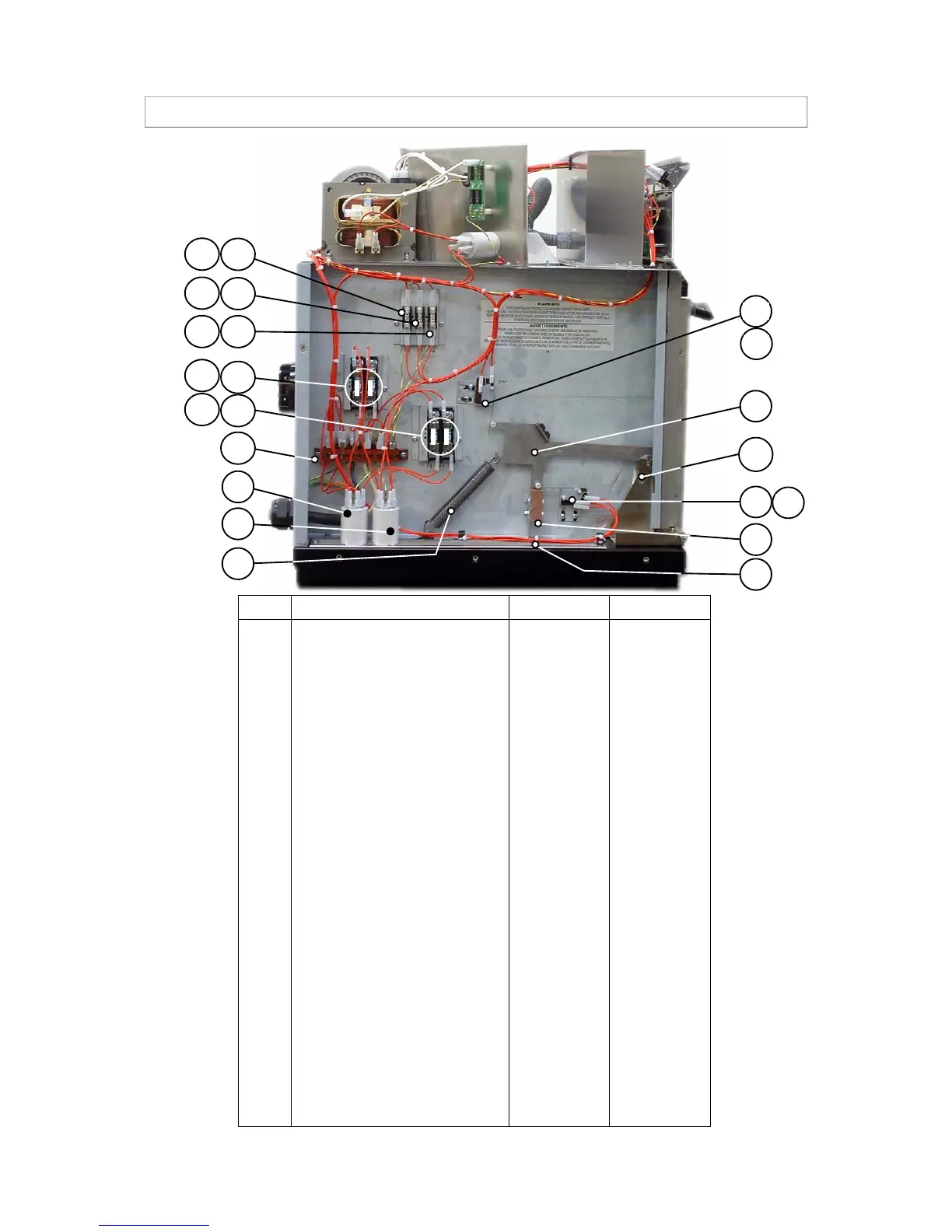

PRINCIPAL COMPONENTS
10
112
118
118
Note C:
For ovens later
than May 2005
See Appendix 7
