Garland S680 SERIES Installation And Service Manual

Part # P152 Rev 1 (01/13/10) Page 27

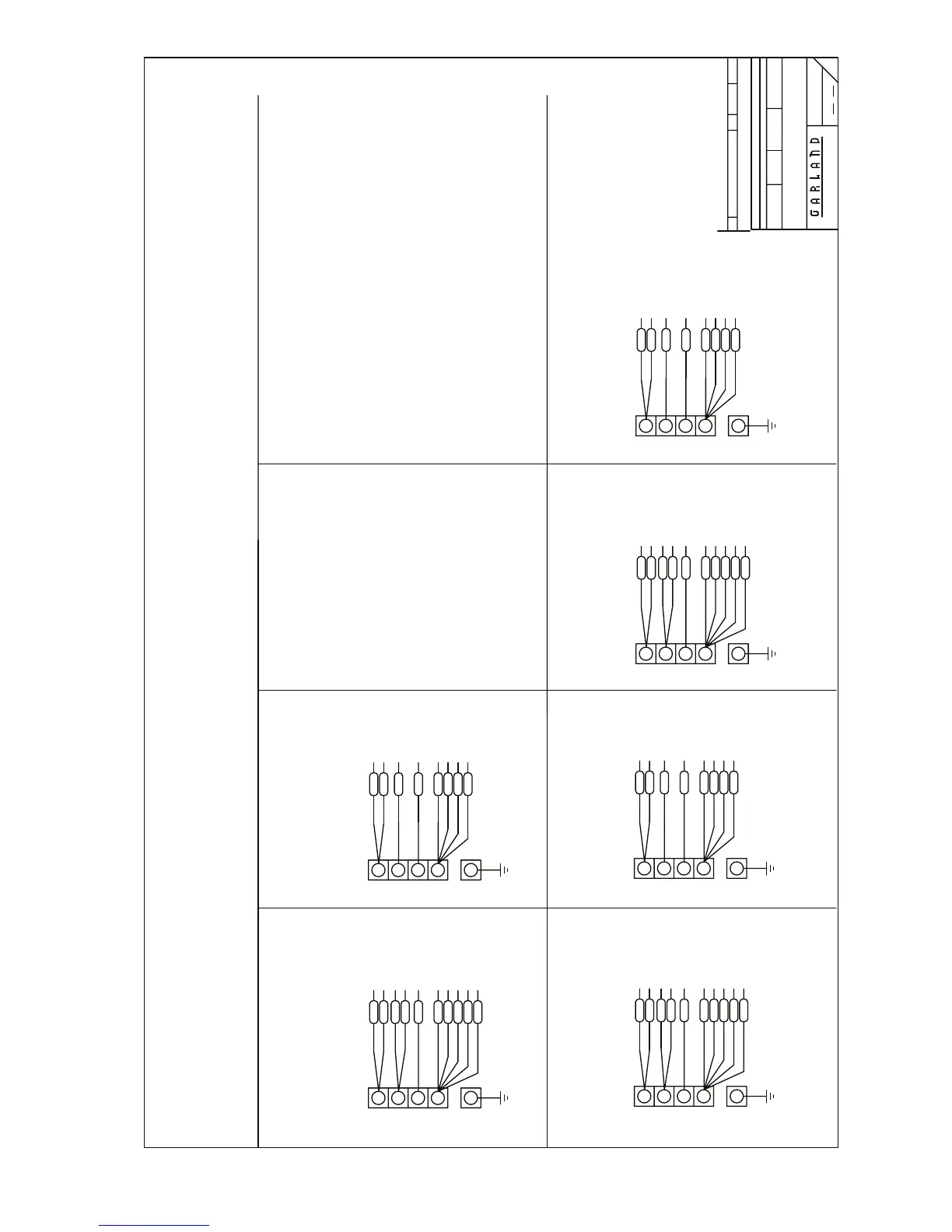

WIRING DIAGRAM SU686RC
S680 SERIES
APR 26,1999NAVC
32
2693201
:
ALL DIMENSIONS ARE IN INCHES
TOLERANCE ±0.015" UNLESS OTHERWISE SPECIFIED
COMMERCIAL RANGES LIMITED
MISSISSAUGA, ONTARIO, CANADA
:
:
:
TITLE:
DATE
SCALE
DR.
SHT OF
CHK. BY
REV
REV.#
DATE
DR.DESCRIPTION
REVISIONS
E N
L3
L2
3 PHASE
L1
E N
L3
L2
3 PHASE
L1
SU686RC Models: -1C-12R, 24R, -2R
GROUP 1 WITH SALMANDER
O1(1) T2(1) T3(1) T1(1)
OVEN 1 RED TOP 1 RED TOP 3 RED TOP 2 RED
GROUP 1 NO SALMANDER
GROUP 2 WITH SALMANDER
GROUP 2 NO SALMANDER
GROUP 3 WITH SALMANDER
GROUP 3 NO SALMANDER
E N
L3
L2
3 PHASE
L1
SALAMANDER RED SALAMANDER BLACK
SU686RC Models: -STD, -12L, -1C-12L, -1L, 1L-24R, -1R-24L, -2L, -2L-12R, -2R-12L, -36
S(2) T3(2) T2(2)
O1(2)
T1(2) S(1)
TOP 2 BLACK TOP 1 BLACK TOP 3 BLACK OVEN 1 BLACK
E N
L3
L2
3 PHASE
L1
E N
L3
L2
3 PHASE
L1
SU686RC Models: -12R, -1L-12R, -1R, -1R-12L, -24L
E N
L3
L2
3 PHASE
L1
OVEN 1 BLACK
T3(1)
TOP 3 RED
T1(2) T3(2) T2(2)
O1(2)
O1(1)
TOP 1 BLACK TOP 3 BLACK TOP 2 BLACK OVEN 1 RED
T2(1) T1(1)
TOP 2 RED TOP 1 RED
TOP 2 RED TOP 3 RED OVEN 1 RED TOP 1 RED TOP 2 BLACK TOP 3 BLACK TOP 1 BLACK OVEN 1 BLACK
T2(1) O1(1) T2(2) T3(2) T1(2)
O1(2)
T3(1) T1(1)
SALAMANDER RED OVEN 1 BLACK SALAMANDER BLACK
T3(1)
TOP 3 RED
S(2) T1(2) T3(2) T2(2)
O1(2)
O1(1)
S(1)
TOP 1 BLACK TOP 3 BLACK TOP 2 BLACK OVEN 1 RED
T2(1) T1(1)
TOP 2 RED TOP 1 RED
SALAMANDER RED OVEN 1 BLACK SALAMANDER BLACK
T1(1)
TOP 1 RED
S(2) T1(2) T3(2) T2(2)
O1(2)
O1(1)
S(1)
TOP 1 BLACK TOP 3 BLACK TOP 2 BLACK OVEN 1 RED
T3(1) T2(1)
TOP 3 RED TOP 2 RED
TOP 1 RED TOP 3 RED OVEN 1 RED TOP 2 RED TOP 2 BLACK TOP 3 BLACK TOP 1 BLACK OVEN 1 BLACK
T1(1) O1(1) T2(2) T3(2) T1(2)
O1(2)
T3(1) T2(1)
SU686RC Models: -STD, -12L, -1C-12L, -1L, 1L-24R, -1R-24L, -2L, -2L-12R, -2R-12L, -36
SU686RC Models: -12R, -1L-12R, -1R, -1R-12L, -24L
SU686RC Models: -1C-12R, 24R, -2R
