Part # P152 Rev 1 (01/13/10)Page 28

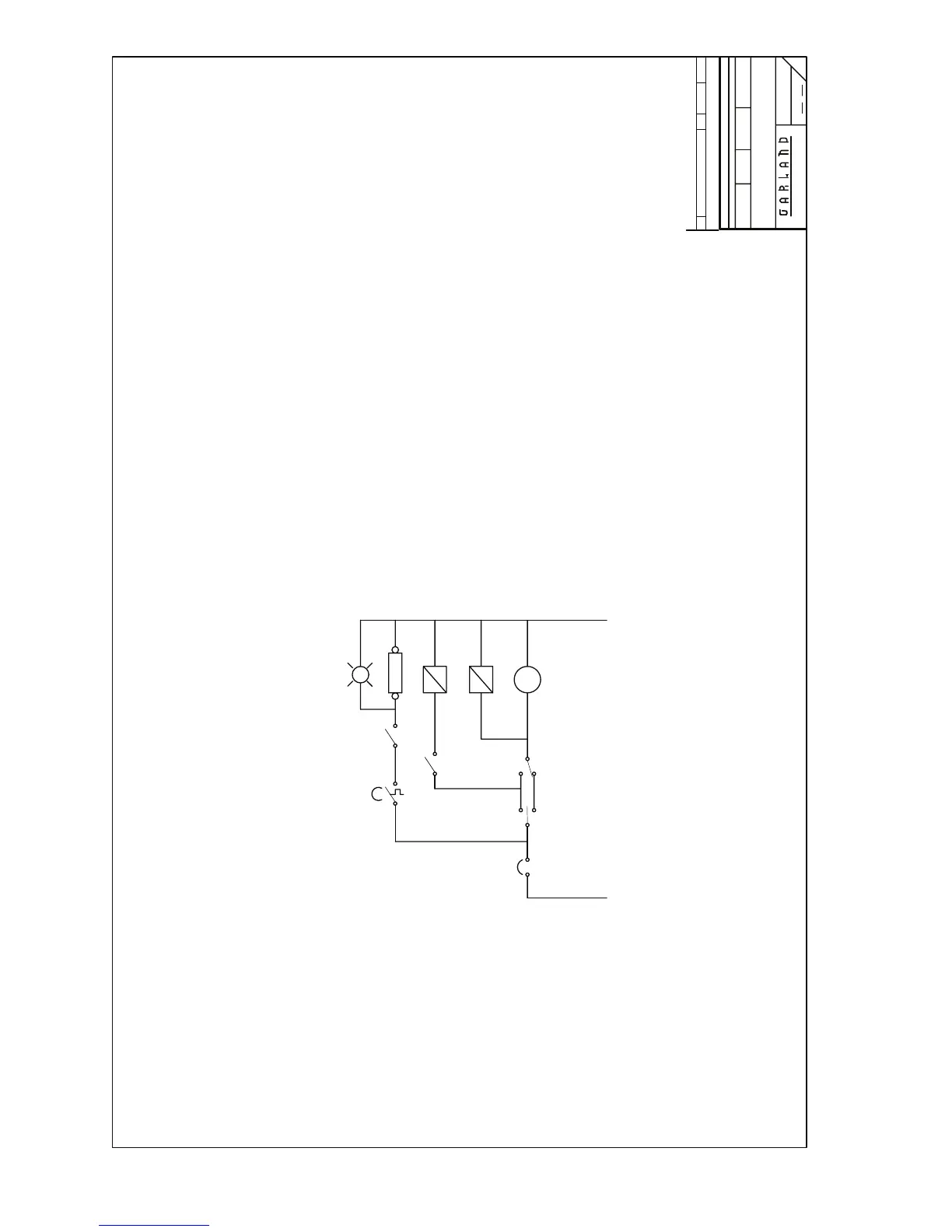

RC OVEN SCHEMATIC SU686RC
S680 SERIES
APR 26,1999NAVC
L
N (COM)
40A
OVEN THERMOSTAT
FAN
SWITCH
DOOR
SWITCH
RL2
M
~
RL2
RL1
5kW
RL1
FAN INTERLOCK CIRCUIT OPERATION
HEAT POSITION:
THE FAN SWITCH MUST BE IN THE HEAT POSTION,
THE DOOR MUST BE CLOSED (THERMOSTAT CLOSED) BEFORE
THE OVEN HEATING ELEMENTS ARE ENERGIZED.
COOL POSITION:
THE FAN SWITCH MUST BE IN THE COOL POSITION, THE DOOR
MUST BE OPEN. THE FAN WILL OPERATE BUT THE HEATING
ELEMENTS WILL NOT ENERGIZE.
33
2693201
:
ALL DIMENSIONS ARE IN INCHES
TOLERANCE ±0.015" UNLESS OTHERWISE SPECIFIED
COMMERCIAL RANGES LIMITED
MISSISSAUGA, ONTARIO, CANADA
:
:
:
TITLE:
DATE
SCALE
DR.
SHT OF
CHK. BY
REV
REV.#
DATE
DR.DESCRIPTION
REVISIONS
