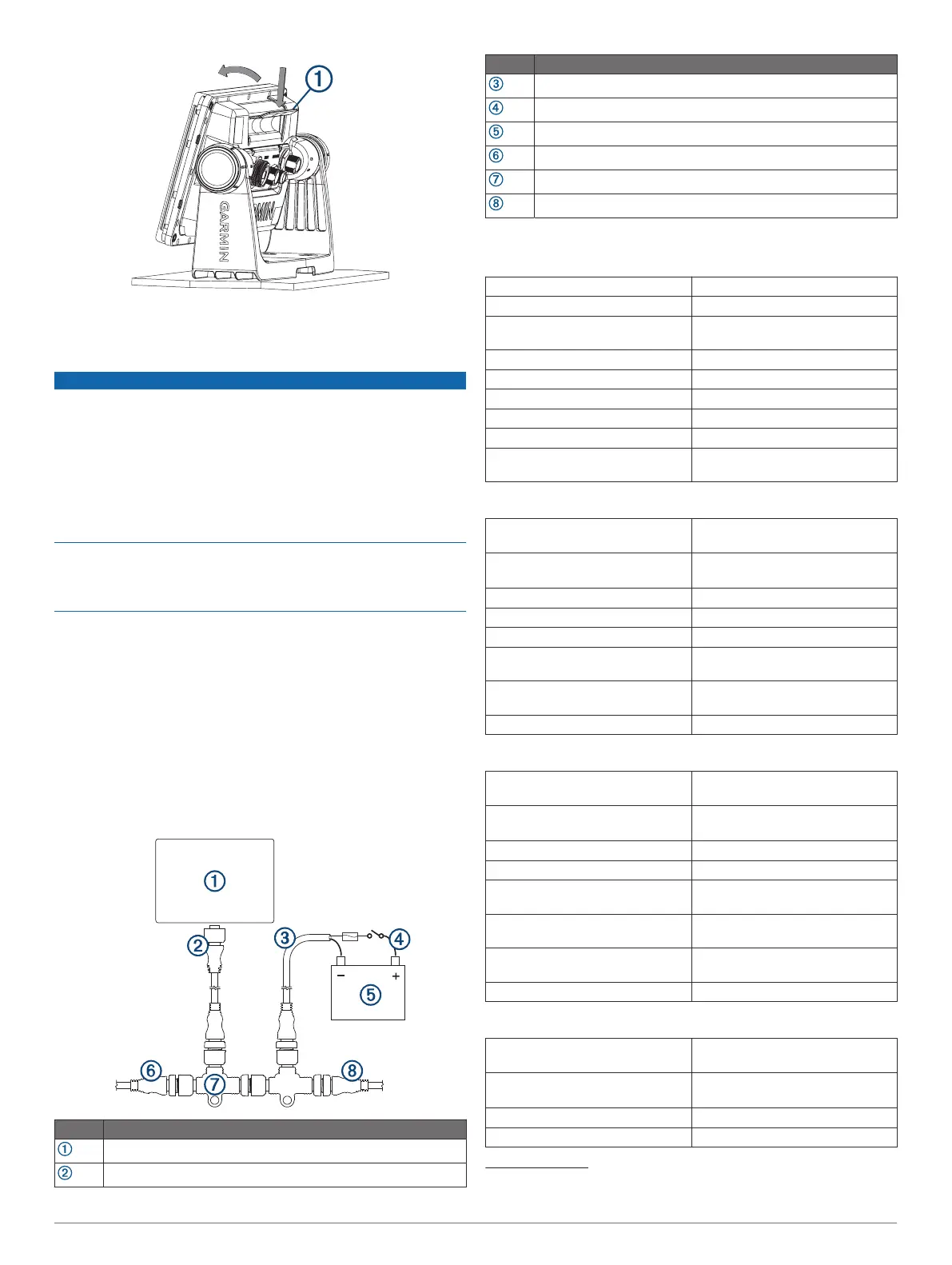

Tilt the device forward, and lift it out of the cradle.
NMEA 2000
®
Considerations
NOTICE
If you are connecting this device to an existing NMEA 2000
network, the NMEA 2000 network should already be connected
to power. Do not connect the NMEA 2000 power cable to an
existing NMEA 2000 network, because only one power source
should be connected to a
NMEA 2000 network.
If you are connecting this device to an existing NMEA 2000
network or engine network by another manufacturer, you should
install a NMEA 2000 Power Isolator (010-11580-00) between
the existing network and the Garmin devices.
If you are installing a NMEA 2000 power cable, you must
connect it to the boat ignition switch or through another in-line
switch. NMEA 2000 devices will drain your battery if the NMEA
2000 power cable is connected to the battery directly.
NOTE: NMEA 2000 is not available on all models.
NMEA 2000 compatible models can connect to a NMEA 2000
network on your boat to share data from NMEA 2000 compatible
devices such as sensors or a VHF radio. The necessary NMEA
2000 cables and connectors are sold separately.
If you are unfamiliar with NMEA 2000, you should read the
“NMEA 2000 Network Fundamentals” chapter of the Technical
Reference for NMEA 2000 Products. To download this
document, go to www.garmin.com and select Manuals on the
product page for your device.
The port labeled NMEA 2000 on the cradle is used to connect it
to a standard NMEA 2000 network.
Item Description
NMEA 2000 compatible Garmin device
NMEA 2000 drop cable
Item Description
NMEA 2000 power cable
Ignition or in-line switch
12 Vdc power source
NMEA 2000 terminator or backbone cable
NMEA 2000 T-connector
NMEA 2000 terminator or backbone cable
Specifications
All Models
Material Polycarbonate plastic
Water rating IEC 60529 IPX7
1
Temperature range From -15° to 55°C (from 5° to
131°F)
Input voltage From 9 to 18 Vdc
Fuse 3 A, 125 V fast-acting
Compass-safe distance 65 cm (25.6 in.)
NMEA 2000 LEN @ 9 Vdc
2
1
NMEA 2000 draw
2
75 mA max.
Memory card 1 microSD
®
card slot; 32 GB max.
card size
6-Inch Models
Dimensions (W x H x D) 21.8 x 13.0 x 6.2 cm (8.6 x 5.1 x
2.6 in.)
Display size (W x H) 13.7 x 7.7 cm (5.4 x 3.1 in.)
15.2 cm (6.2 in.) diagonal
Clearance to nearest obstruction 8 cm (3.1 in.)
Weight 0.75 kg (1.6 lb.)
Max. power draw at 10 Vdc 12 W
Typical current draw at 12 Vdc
(RMS)
0.7 A
Max. current draw at 12 Vdc
(RMS)
1.25 A
Wireless frequencies and protocols 2.4 GHz @ 17.2 dBm nominal
7-Inch Models
Dimensions (W x H x D) 25 x 13.9 x 5.1 cm ( 9.8 x 5.5 x
2.0 in.)
Display size (W x H) 15.5 x 8.6 cm (6.1 x 3.4 in.)
17.8 cm (7 in.) diagonal
Clearance to nearest obstruction 11.5 cm (4.5 in.)
Weight 0.77 kg (1.7 lb.)
Max. power draw at 10 Vdc 15 W, 9 W with a GT-52
transducer
Typical current draw at 12 Vdc
(RMS)
0.8 A
Max. current draw at 12 Vdc
(RMS)1
1.25 A
Wireless frequencies and protocols 2.4 GHz @ 18.5 dBm nominal
9-Inch Models
Dimensions (W x H x D) 11.4" x 6.5" x 2.4" (28.2 x 16.4 x
6.0 cm)
Display size (W x H) 19.9 x 11.3 cm (7.8 x 4.8 in.)
22.9 cm (9 in.) diagonal
Clearance to nearest obstruction 11.5 cm (4.5 in.)
Weight 1 kg (2.3 lb.)
1
The device withstands incidental exposure to water of up to 1 m for up to 30 min.
For more information, go to www.garmin.com/waterrating.
2
NMEA 2000 is available on ECHOMAP Plus 7x/9x models.
