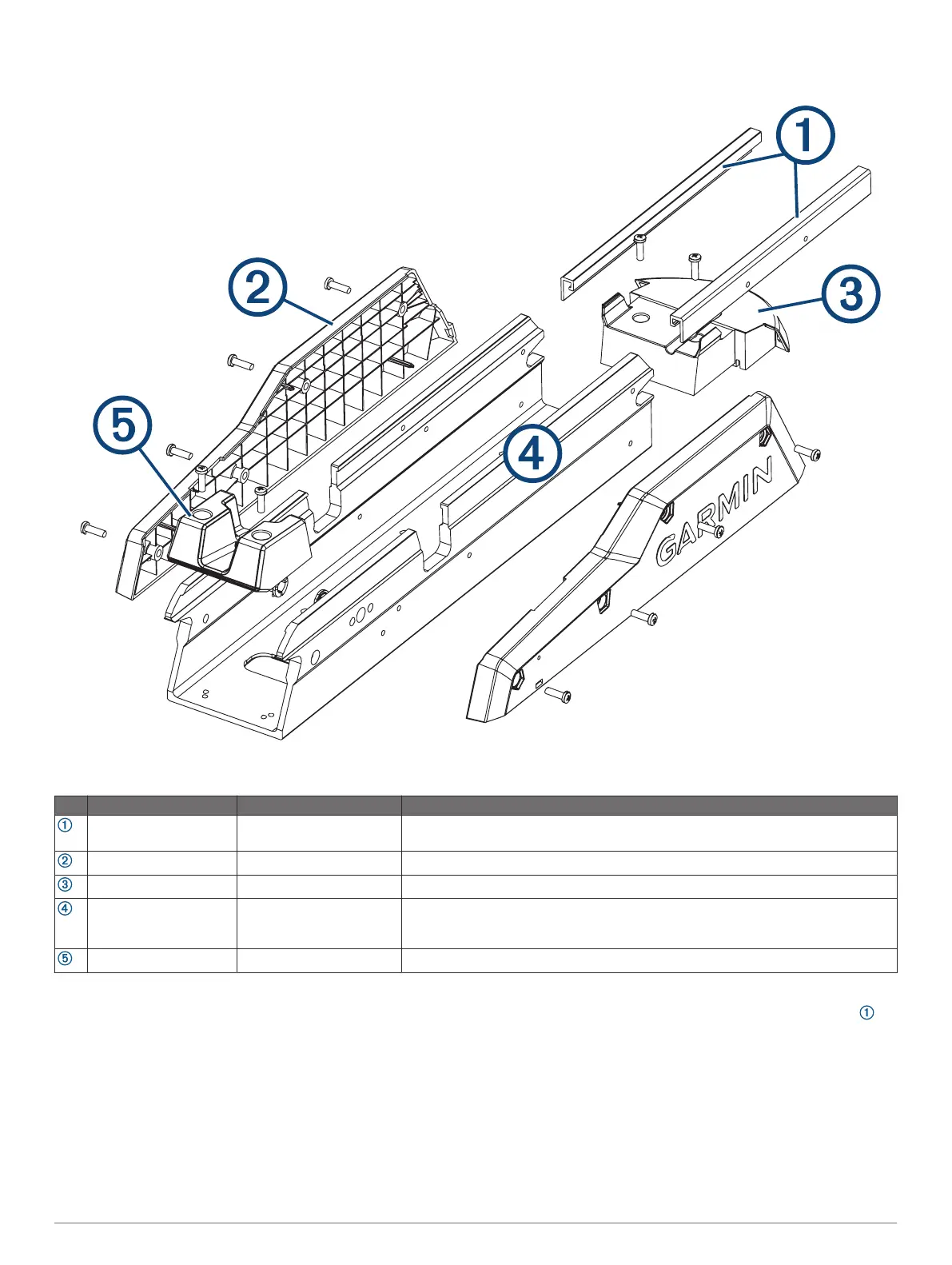

Mount Base Parts
Item Description Service Part Number Details
Mount base rails 50 in. model: S00-01000-33
57 in. model: S00-01000-34
Replacing the Mount Rails, page 25
Mount base shrouds S00-01000-14 Replacing the Mount Shrouds, page 24
Motor bumper S00-01000-19 Replacing the Mount Bumper, page 25
Mount base 50 in. model: S00-01000-05
57 in. model: S00-01000-10
This replacement part includes the base and all of the plastic parts, including the
shrouds, rails, stow support, and motor bumper, fully assembled.
Replacing the Mount Base, page 24
Mount base stow support S00-01000-47 Replacing the Stow Support, page 25
Service Procedures
Replacing the Pull Cable
You can replace the pull cable without disassembling the motor.
1
If necessary, remove the handle from the pull cable
(Removing the Pull Cable Handle, page 8).
2
Remove the pull cable from the mount (Removing the Pull
Cable, page 9).
3
Install the new pull cable on the mount (Installing a New Pull
Cable, page 9).
4
Install the handle on the new pull cable (Installing the Handle
on the Pull Cable, page 9).
Removing the Pull Cable Handle
1
Using a #1 Phillips screwdriver, remove the two screws
that secure top of the handle.
