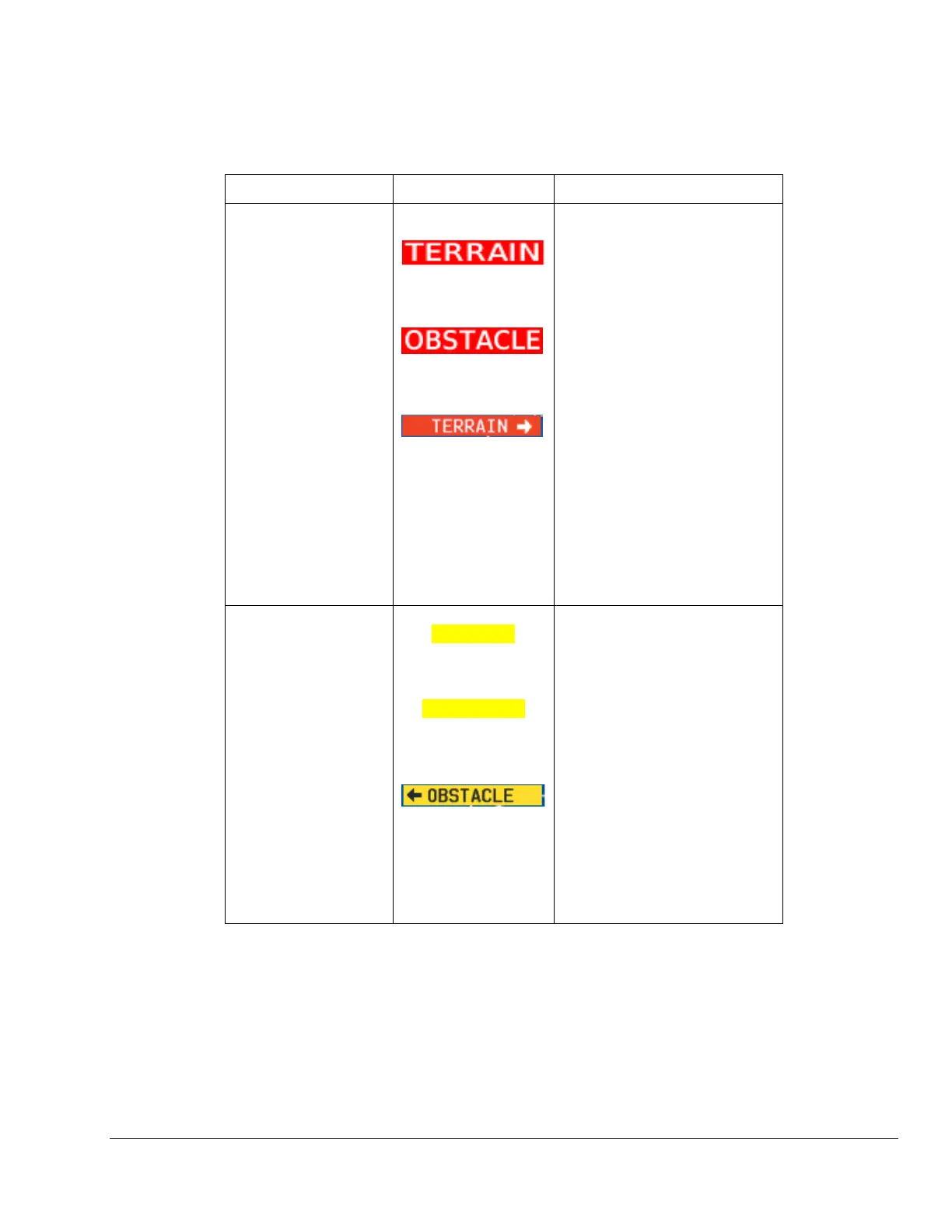

3.13 TERRAIN ALERTS
Aural Alert
Visual Alert
Action
“Terrain Ahead! Pull
Up!”
“Terrain, Terrain
Pull up! Pull Up!”
“Obstacle Ahead!
Pull Up!”
“Obstacle, Obstacle
Pull Up! Pull Up!”
“Sink Rate, Pull Up!”
“Pull Up!”
-OR-
-OR-
NOTE: The arrow
indicates the terrain
is outside the
Synthetic Vision field
of view.
Disconnect autopilot and
initiate maximum performance
climb (maximum takeoff power
and best angle of climb
airspeed)
NOTE: Only the climb
maneuver is recommended,
unless operating in VMC or it
is determined, based on all
available information, that
turning in addition climbing is
the safest course of action.
“CAUTION, Terrain”
“Caution, Terrain
Ahead”
“CAUTION, Obstacle”
“CAUTION, Obstacle
Ahead”
“CAUTION, Sink
Rate”
TERRAIN
-OR-
OBSTACLE
-OR-
NOTE: The arrow
indicates the
obstacle is outside
the Synthetic Vision
field of view.
Take corrective action until the
alert ceases. Using all
available information to
determine the appropriate
action, alter the flight path
away from the threat by
stopping descent, climbing,
and/or turning.
