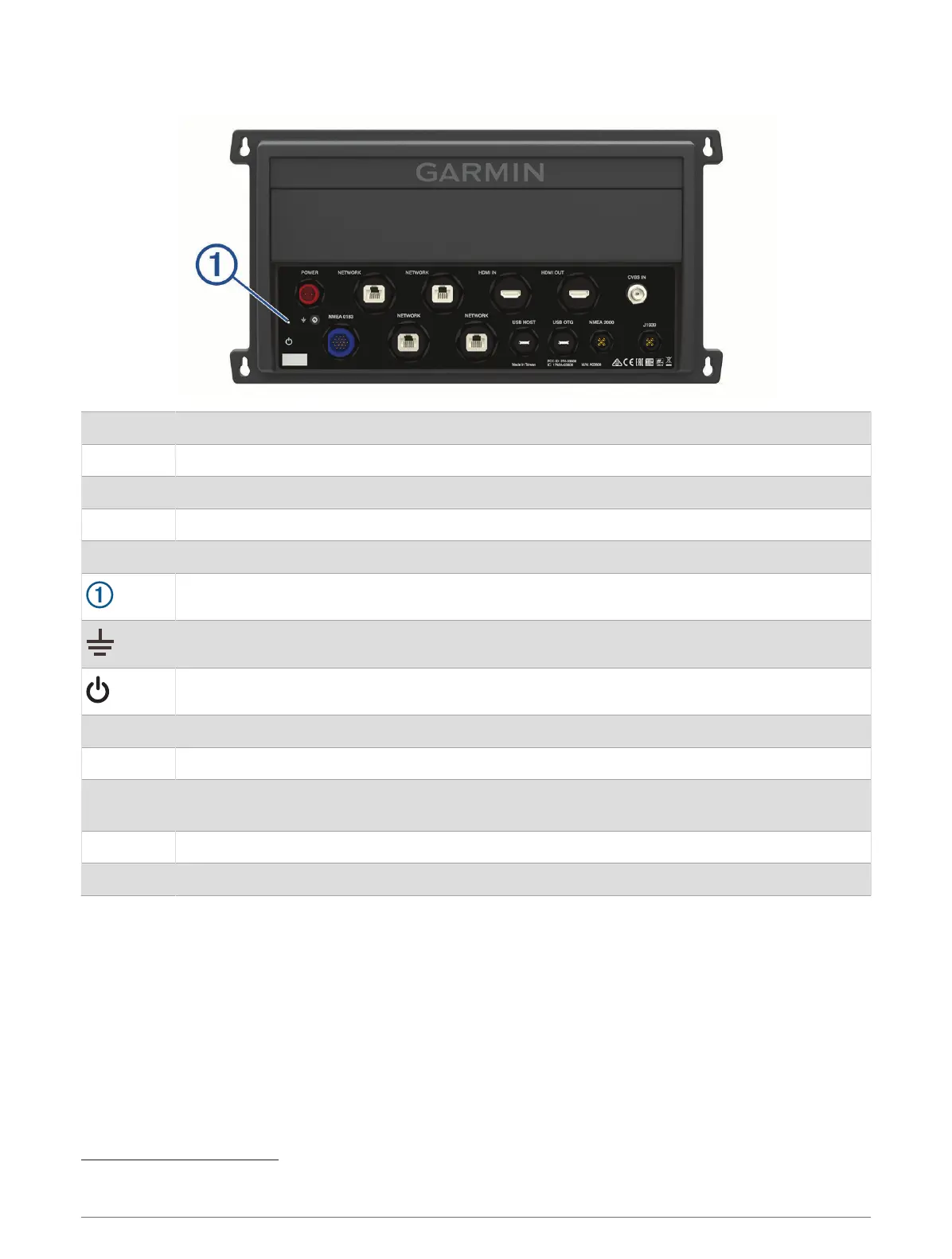

Connector View (8700 models)
POWER Power cable connection
NETWORK Garmin Marine Network
HDMI IN HDMI in
HDMI OUT HDMI out to connect the chartplotter to a monitor. Required for device functionality.
CVBS IN Composite video in
Status LED
Power ground
Power button
NMEA 0183 NMEA 0183 and audio out
USB HOST Micro-USB output for connecting a touchscreen monitor
USB OTG
Micro-USB input from compatible Garmin card reader
1
, computer, or other supported USB
accessory
NMEA 2000 NMEA 2000 network
J1939 J1939 network
1
Only compatible Garmin card readers recommended. Third-party card readers are not guaranteed to be fully compatible.
6 Introduction
