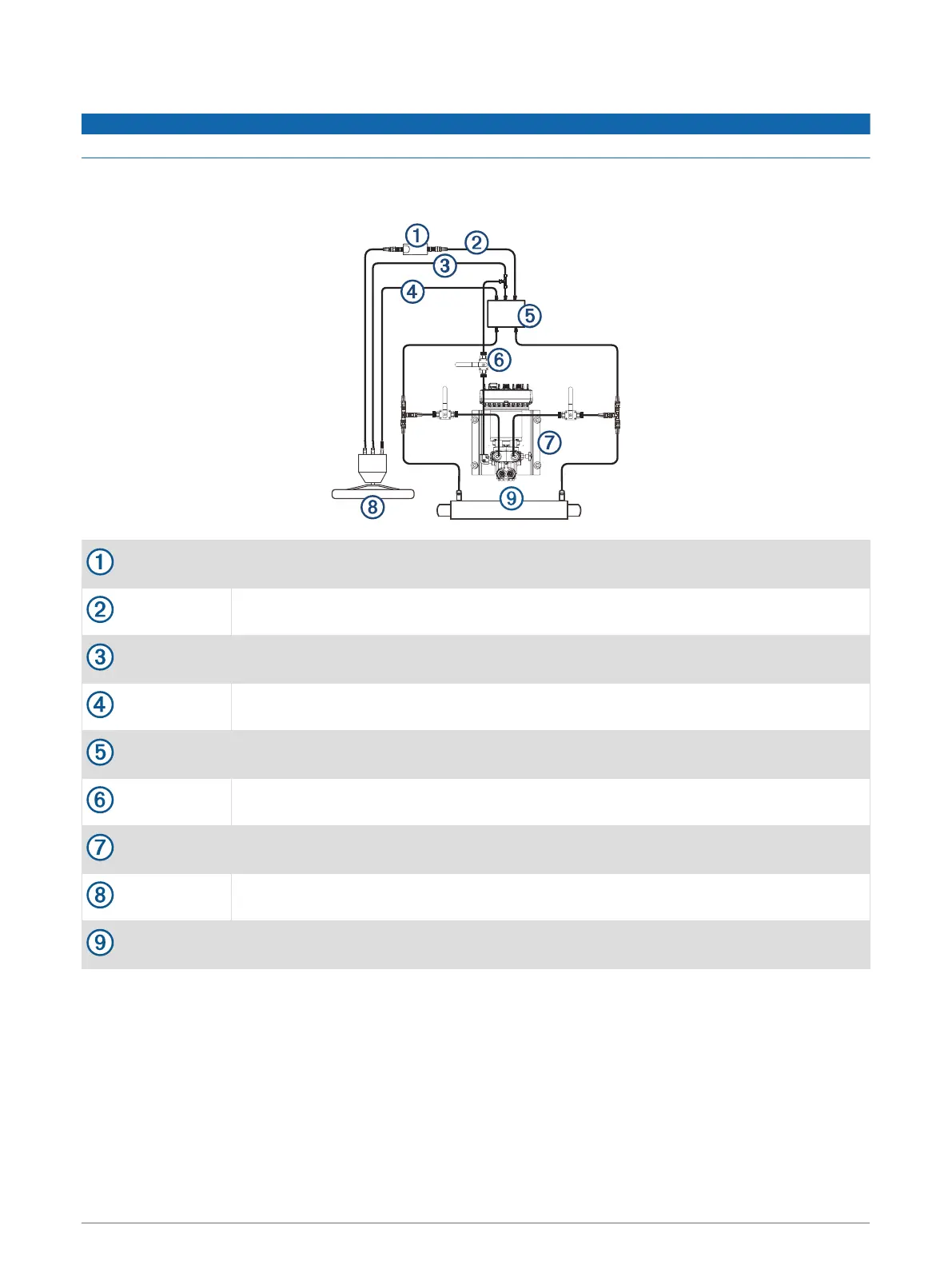

Single-Helm with Power Assist Layout
NOTICE
The pump must be installed between the cylinder and the power-assist module to function correctly.
NOTE: Removal of the power assist-module may be necessary to gain access to the fittings, hoses, and bleed-
tee fitting.
Shadow Drive
Starboard line
Return line
Port line
Power-assist module
Shut-off valves
Pump
Helm
Steering cylinder
