Garmin Smartpump - Dual-Helm with Uflex Masterdrive Layout

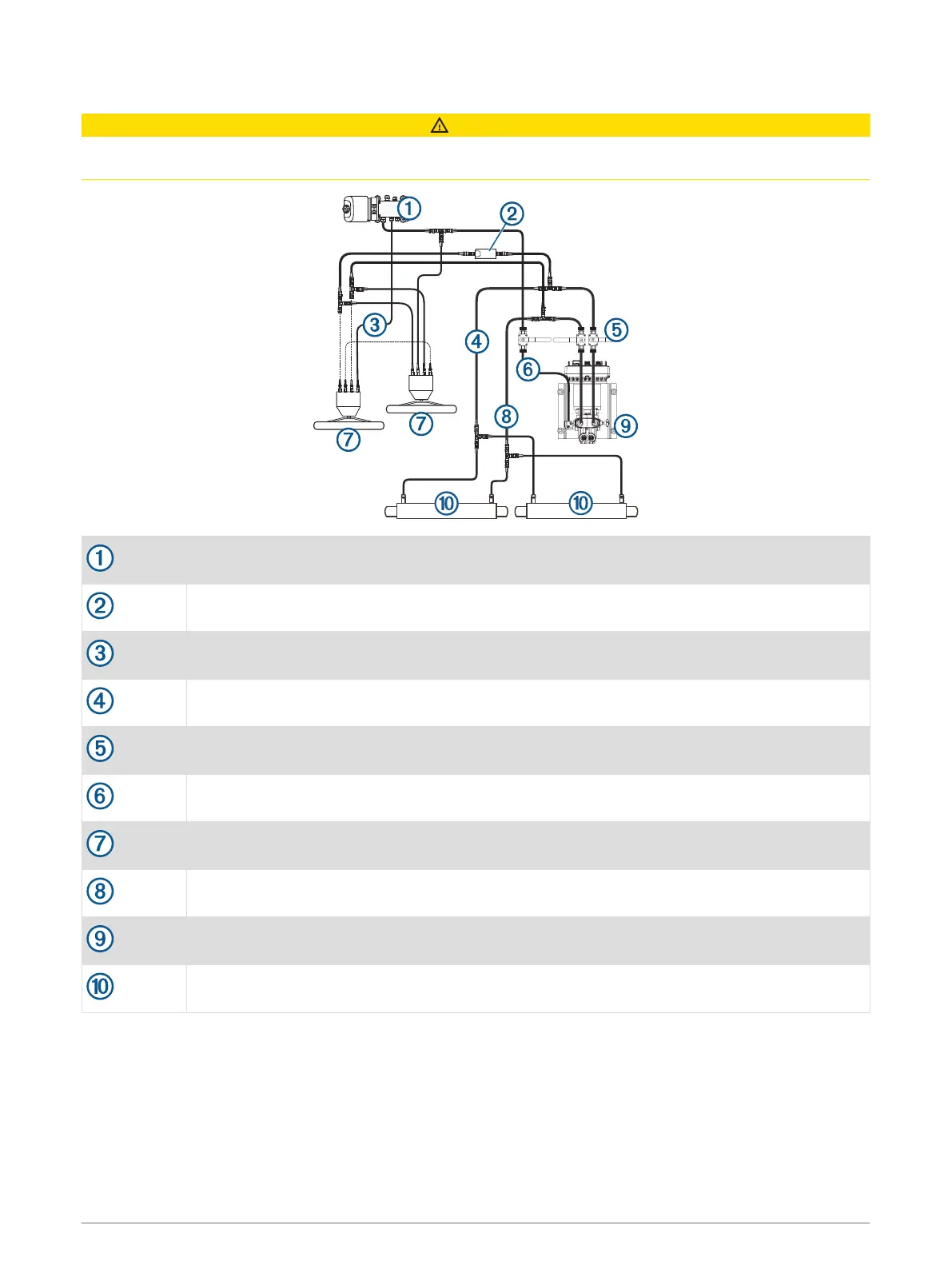

Dual-Helm with Uflex MasterDrive Layout
CAUTION
When installing the pump in a system with a Uflex MasterDrive, do not cut the high-pressure line connecting the
power unit to the helm to avoid injury or property damage.
P L T R
P L T R
Uflex MasterDrive power unit
Shadow Drive
High pressure line - DO NOT CUT
Starboard line
Shut-off valves
Return line
Helms
Port line
Pump
Steering cylinders
9
