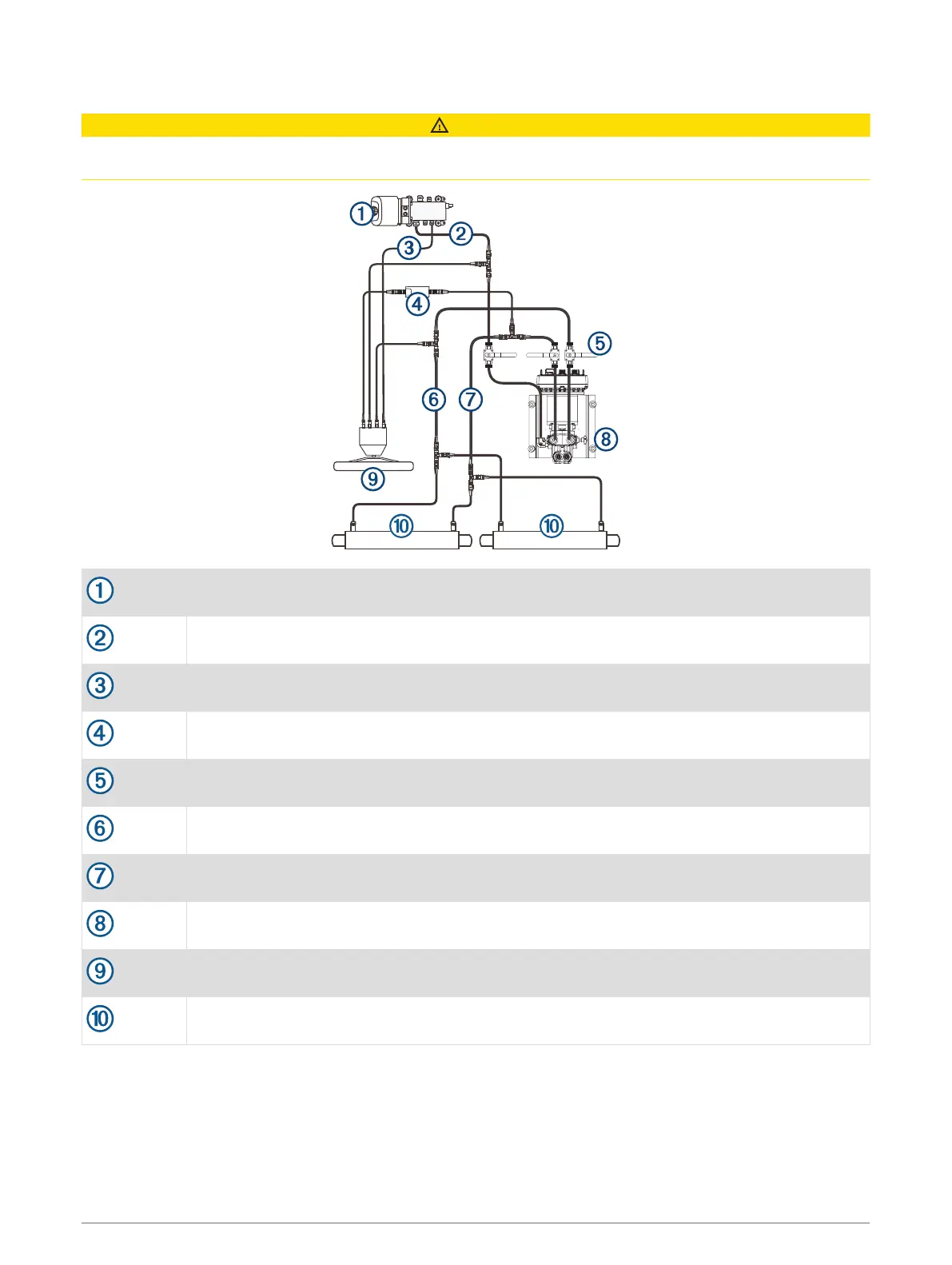

Single-Helm with Uflex
®
MasterDrive
™
Layout
CAUTION
When installing the pump in a system with a Uflex MasterDrive, do not cut the high-pressure line connecting the
power unit to the helm to avoid injury or property damage.
P L T R
Uflex MasterDrive power unit
Return line
High pressure line - DO NOT CUT
Shadow Drive
Shut-off valves
Port line
Starboard line
Pump
Helm
Steering cylinders
