GARO LS4 - Explanation of DLM Parameters

9
Explanation of DLM Master parameters
(With, or without, secondary meter)
Dynamic Load
Management
DLM Network ID
DLM Algorithm
EVSE Sub‐Distribution
Limit (L1/L2/L3)[A]
Operator EVSE Sub‐
Distribution Limit
(L1/L2/L3)[A]
External Input 1 Config
External Input 2 Config

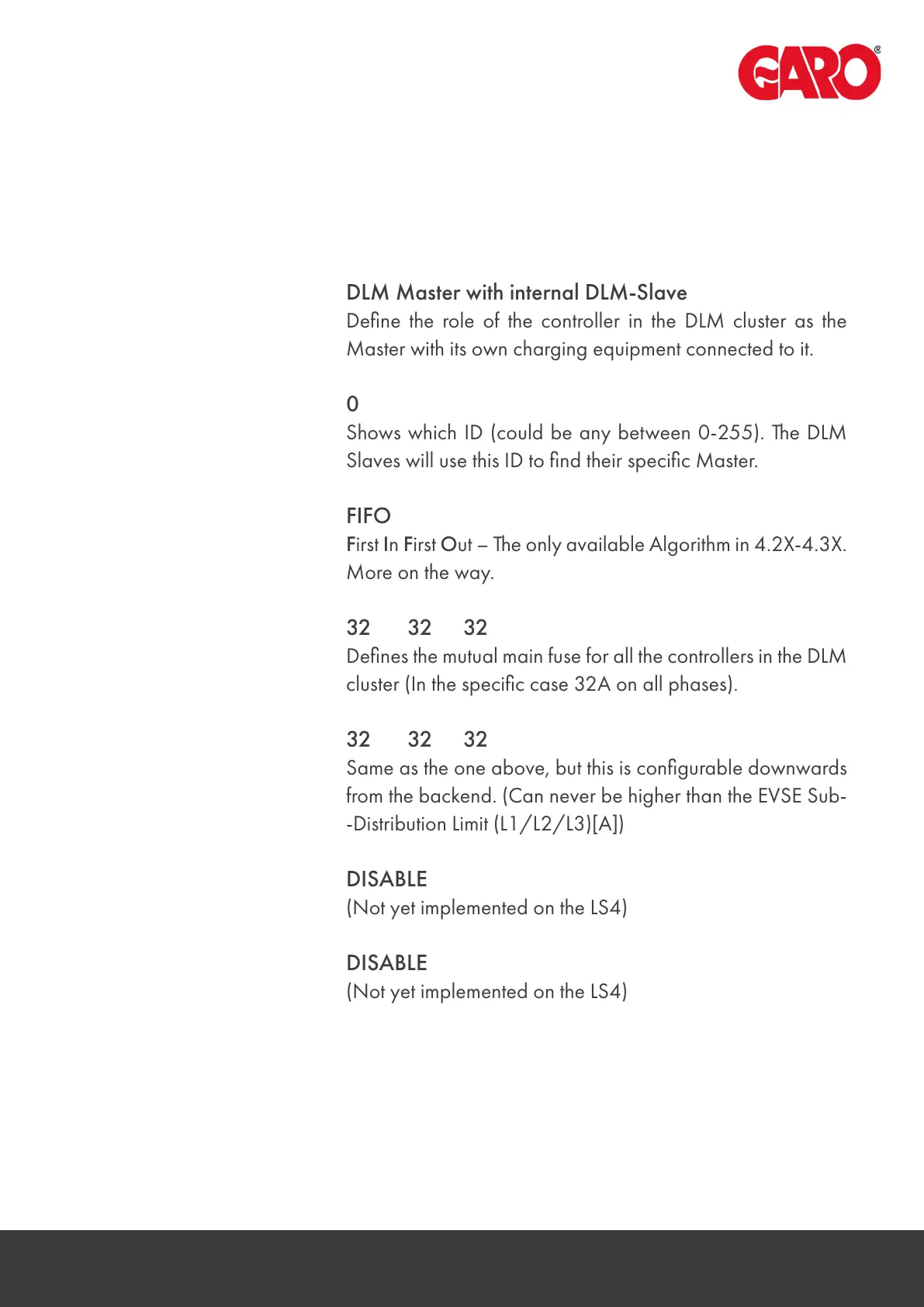

DLM Master with internal DLM‐Slave
Define the role of the controller in the DLM cluster as the
Master with its own charging equipment connected to it.
0
Shows which ID (could be any between 0‐255). The DLM
Slaves will use this ID to find their specific Master.
FIFO
First In First Out – The only available Algorithm in 4.2X‐4.3X.
More on the way.
32 32 32
Defines the mutual main fuse for all the controllers in the DLM
cluster (In the specific case 32A on all phases).
32 32 32
Same as the one above, but this is configurable downwards
from the backend. (Can never be higher than the EVSE Sub-
‐Distribution Limit (L1/L2/L3)[A])
DISABLE
(Not yet implemented on the LS4)
DISABLE
(Not yet implemented on the LS4)
