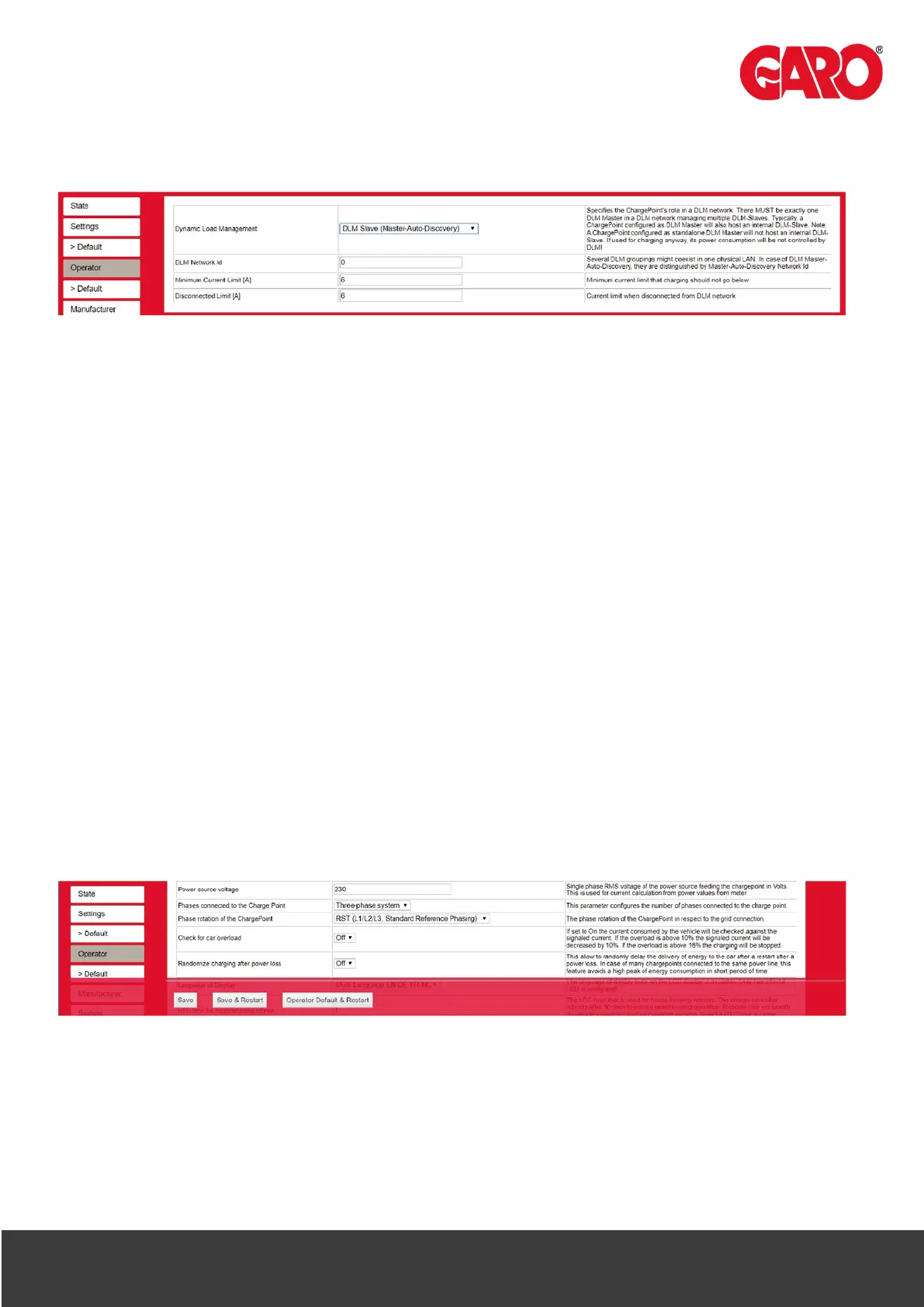

Setting up the DLM Slaves
Dynamic Load
Management
DLM Network ID
Minimum Current
Limit [A]
Disconnected Limit
[A]
DLM Slave (Master‐Auto‐Discovery)
Define the role of the controller in the DLM cluster as a Slave that
automatically will find its master and follow its lead.
0
Shows which ID (could be any between 0‐255). The DLM Slaves
will use the is ID to find their specific Master.
6
The minimum current the chargepoint need to start charging a car.
6
The maximum current the DLM Slave will be allowed to use if
disconnected from the DLM Master. If disconnected the DLM
Master will assume that the DLM Slave is using this current on all
phases and use this in its calculations.
Setting up the DLM Slaves (Phase rotation)
Phase rotation of the
ChargePoint
RST (L1/L2/L3, Standard Reference Phasing
The phase rotation from the grid on the posts incoming terminals.
(The phase rotations is just as important on the DLM Slaves as on
the DLM Masters).
