GARO LS4 - Setting up External Meter

10
Explanation of DLM Master parameters
(Secondary meter)
External Meter Suport
Main Distribution Limit
(L1/L2/L3)[A]
External Meter Disconnected
Fallback (L1/L2/L3)[A]
External Meter Location
External Meter Sample Rate
Minimum Current Limit [A]
Disconnected Limit [A]

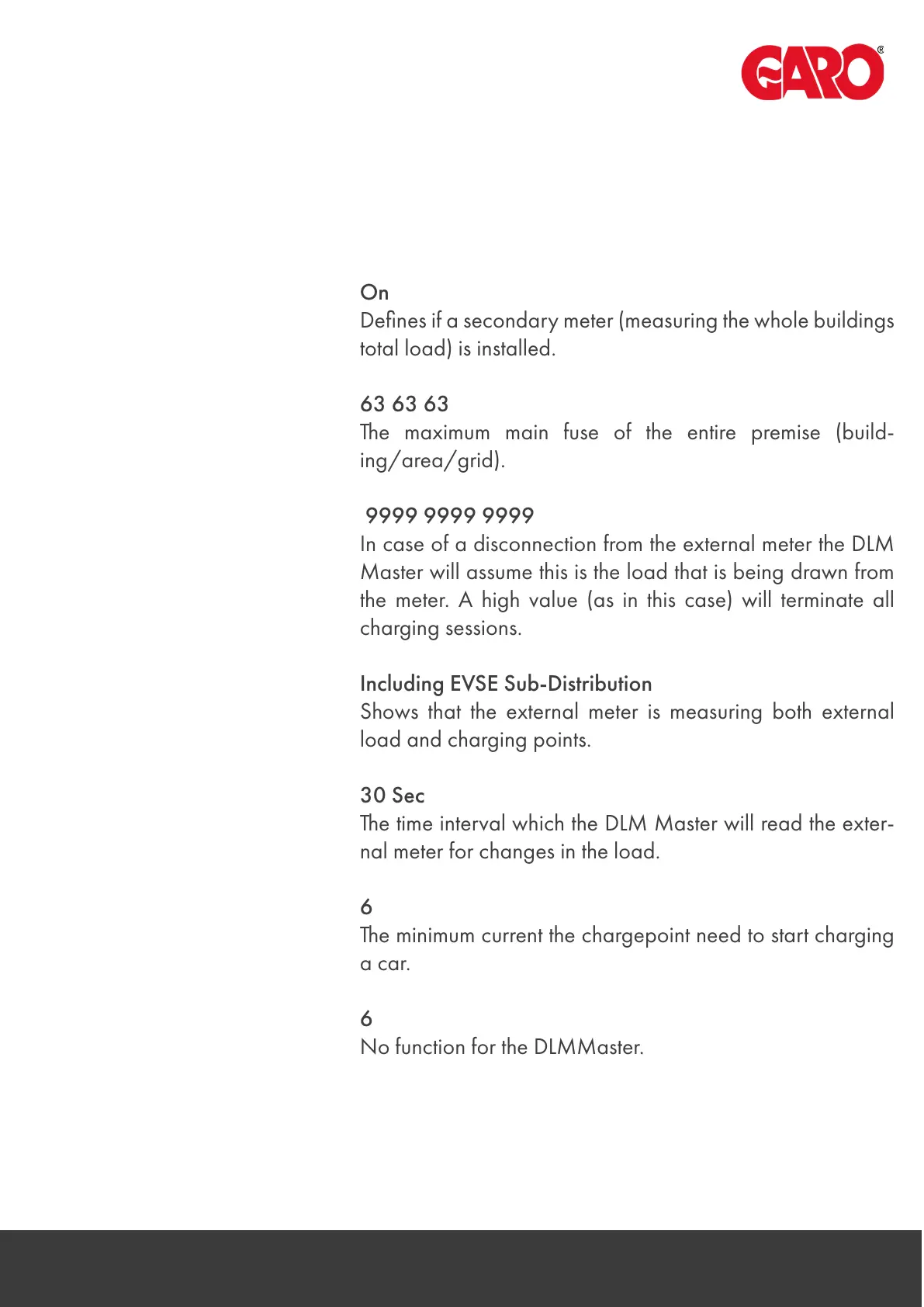

On
Defines if a secondary meter (measuring the whole buildings
total load) is installed.
63 63 63
The maximum main fuse of the entire premise (build-
ing/area/grid).
9999 9999 9999
In case of a disconnection from the external meter the DLM
Master will assume this is the load that is being drawn from
the meter. A high value (as in this case) will terminate all
charging sessions.
Including EVSE Sub‐Distribution
Shows that the external meter is measuring both external
load and charging points.
30 Sec
The time interval which the DLM Master will read the exter-
nal meter for changes in the load.
6
The minimum current the chargepoint need to start charging
a car.
6
No function for the DLMMaster.
