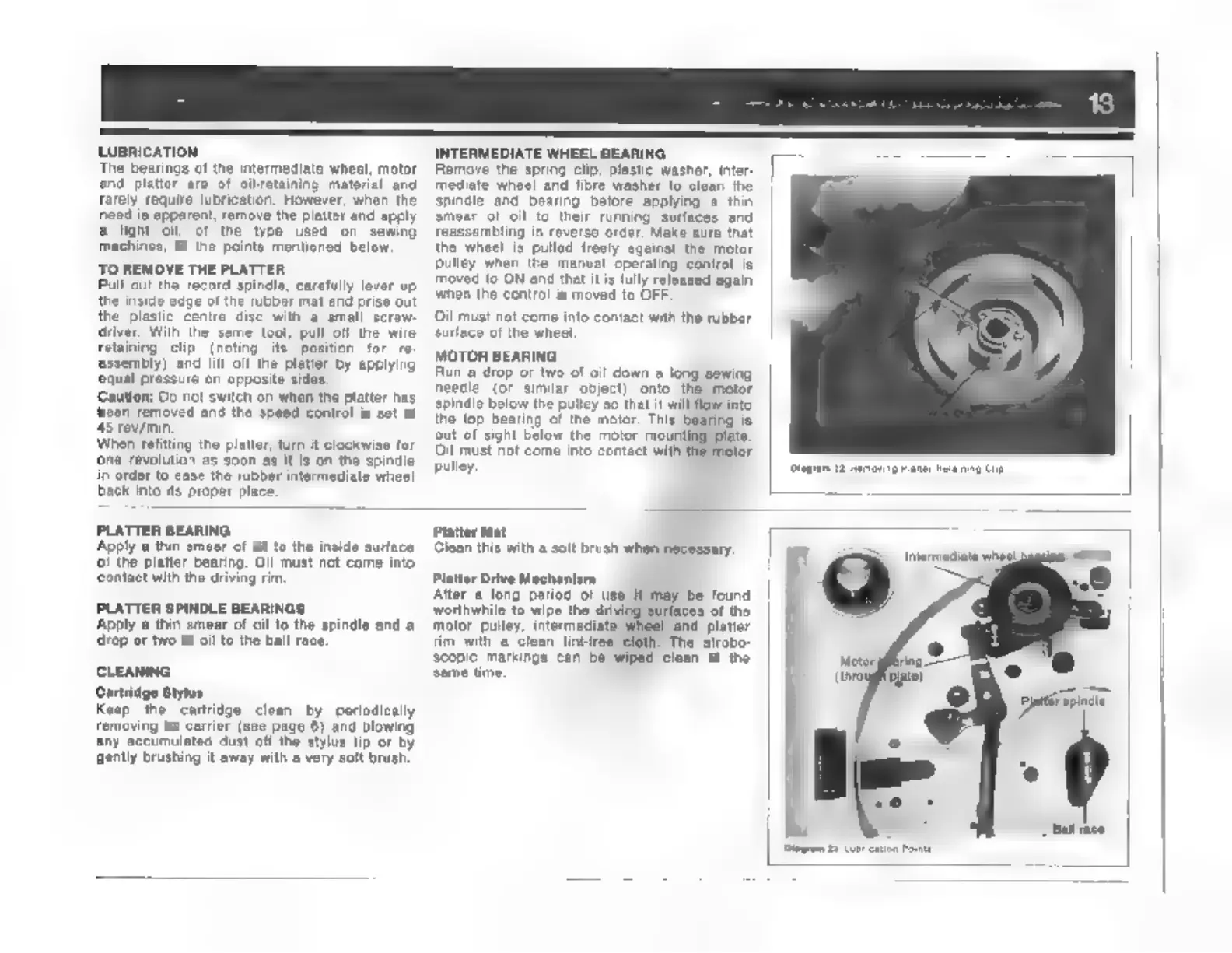

LUBRICATION
‘The
bearings
of
the
intermediate
wheel,
motor
and
platior
aro
of
oilvetaining
material
and
rarely
require
lubrication.
However,
when
the
‘hood
is
apparent,
remove
the
platter
and
apply
light
oll,
of
the
type
used
on
sewing
machinos,
to
the
points
mentioned
below.
‘TO
REMOVE
THE
PLATTER,
ull
out the
record
spindle,
carefully
lever
up
the
inside
edge
of
the
rubber
mat
and
prise
out
the
plastic
centre
disc
with
a
small
scraw-
driver.
With
the
seme
tool,
pull
off
the
wise
retaining
clip
(noting
ite.
position
for
ro
asyembly)
and
lit
olf
the
platier
by
applying
equal
pressure
on
opposite
sides.
Caution:
Do
not
switch
on
when
the
platter
has
een
removed
and
the
speed
control
is
set
at
45
rev/min.
When
refiting
the
platter,
ulm
it
clockwise
for
‘one
revolution
as
soon
as
it
Is
on
the
spindie
in
order
to
ease
the
rubber
intermediate
whee!
back
into
its
proper
place.
INTERMEDIATE
WHEEL
BEARING
Remove
the
spring
clip,
plastic
washer,
mediate
wheel
and
fitre
washer
to
clean
the
spindle
and
bearing
batore
applying
a
thin
smear
of
oll
to
their
running.
sutlaces
and
reassembling
in
reverse
order.
Maka
sure
that
the
wheel
is
pulled
freely
against
the
motor
pulley
when
the
manual
operating
control
is
moved
to
ON
and
that
itis
fully
released
again
whan
the
contra!
is
maved
to
OFF.
il
must
not
come
into
contact
with
the
rubber
surface
of
the
whee
MOTOR
BEARING
Run
a
drop
or
two
of
oll
down
2
long
sewing
needle
(or
similar
object)
onto
the
motor
spindle
below
the
pulley
so
that
it
will
low
into
the
top
bearing
of
the
motor.
This
bearing
is
ut
of
sight
below
the
motor
mounting
plat,
Oil
must
not
come
into
contact
with
the
motor
pulley.
PLATTER
BEARING
‘Apply
a
thin
amear
of
oil
to
the
inside
surface
f
the
platter
Dearing.
Ol
must
not
come
into
contact
with
the
driving
rim.
PLATTER
SPINDLE
BEARINGS
‘Apply
a
thin
smear
of
oil
to
the
spindle
and
a
drop
oF
two
of
ail
to
the
ball
race,
CLEANING
Cartridge
Stylus
Keep
the
cartridge
clean
by
periodically
removing
its
carrier
(see
page
6)
and
blowing
any
accumulated
dust
off
the
stylus
tip
or
by
gently
brushing
it
away
with
a
very
soft
brush,
Platter
Mat
Clean
this
with
a
soft
brush
when
necessary.
ler
Drive
Mechanism
After
a
long
period
of
use
it
may
be
found
‘worthwhile
to
wipe
the
driving
surlaces
of
the
motor
pulley,
intermediate
wheel
and
platter
rim
with
a
clean
lintree
cloth.
The
strobo-
scopic
markings
an
be
wiped
clean
at
the
‘same
time.
