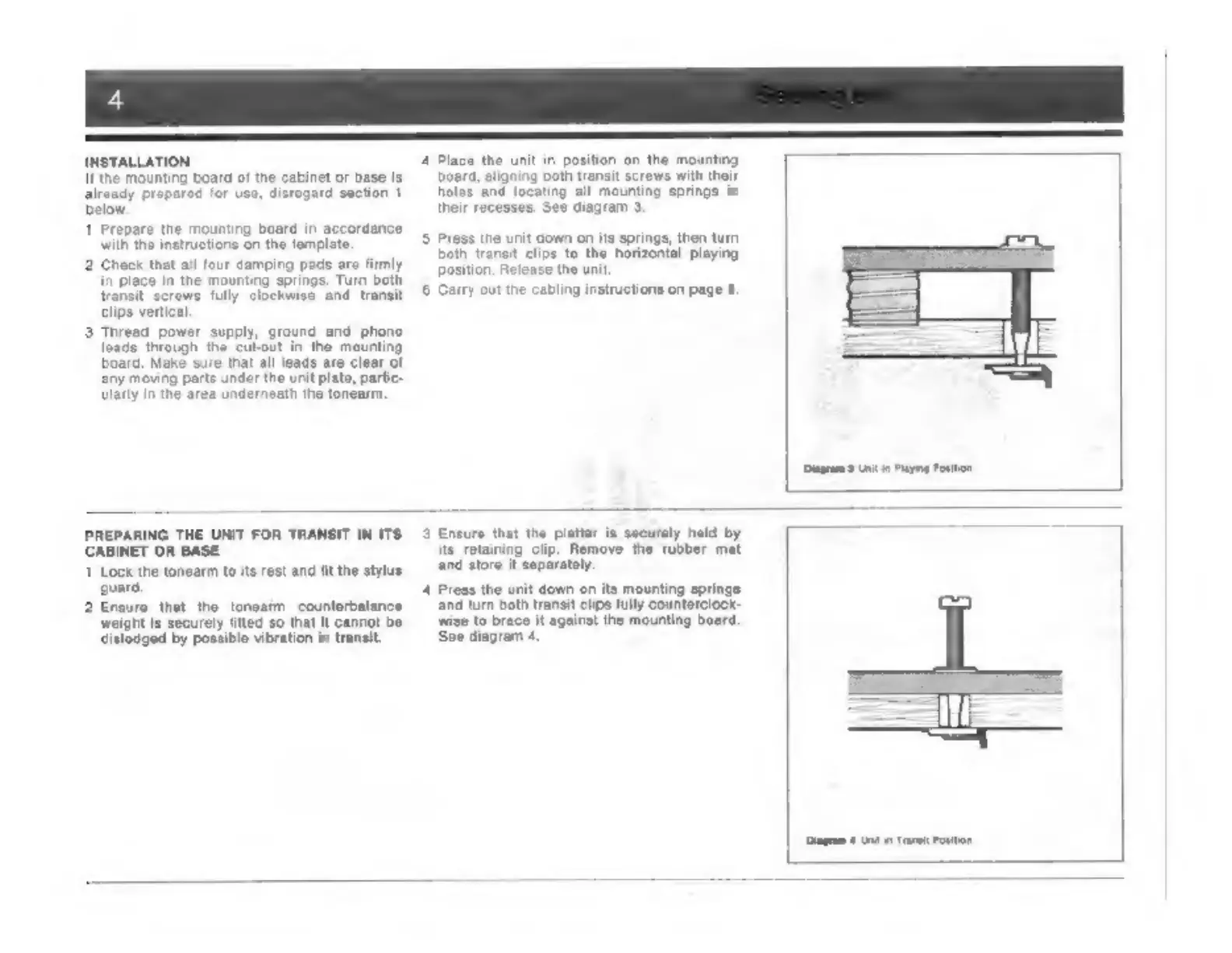

INSTALLATION
It the mounting board of the cabinet or base is.
already propared lor use, disrogard section 1
Delow.
1 Prepare the mounting board in accordance
with tho inetrustions on the template.
2 Check thet all four damping pads are firmly
In place in the mounting springs. Turn both
wansit scrows fully clockwise and transit
clips vertical
3 Thread power supply, ground and phono
leads through the cut-out in the mounting
board. Make sure that all leads are clear of
any meving parts under the unit plate, partec-
Ularly In the area underneath the tonearm,
4 Place the unit in position on the mounting
oerd, aligning both transit screws with their
holes ‘and locating all mounting springs in
their recesses. See diagram 3.
'5 Press the unit down on its springs, then turn
both transit clips to the horizontal playing
position. Release the unit
6 Carry out the cabling instructions on page 5
Diagram 3 Unit Payne
PREPARING THE UNIT FOR TRANSIT IN ITS
CABINET OR BASE
1 Lock the tonearm to its rest and fit the stylus
guard.
2 Engure that tho toneaim counterbalance
weight is securely ‘ited so that it cannot be
dislodged by possible vibration in transit.
2 Ensure that the platter is securely held by
its retaining clip. Remove the rubber mat
land store it separately
4 Press the unit down on its mounting springs
fang turn both transit clips fully counterclock-
wise to brace it against the mounting board,
‘See diagram 4
