Magnum 4K8 Switches Installation and User Guide (10/04)
30
www GarrettCom com
..

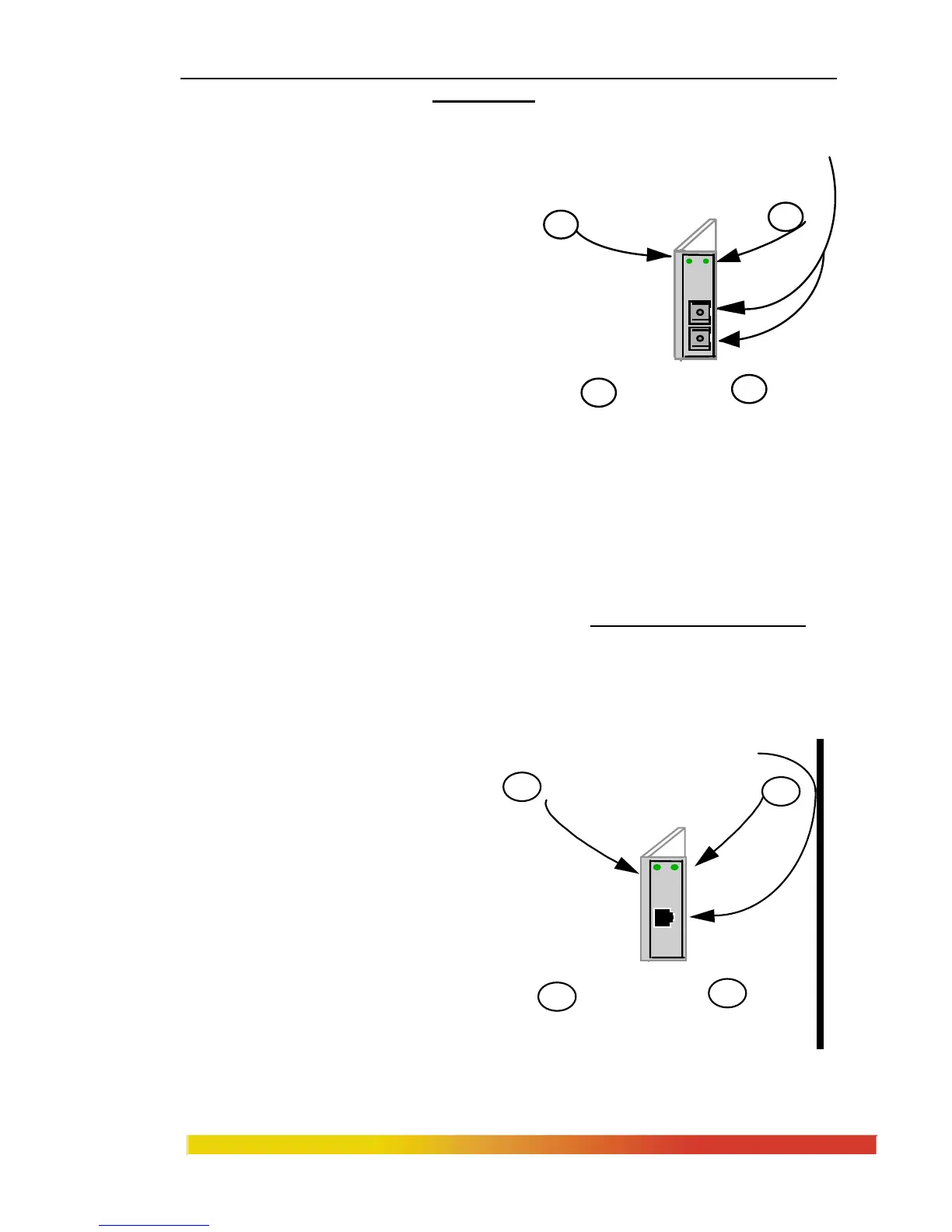

5.2.3 FPM-SSC 100Mbps single-mode
FX-SC-type, “snap-in” connector
The Magnum FPM-SSC is a single-mode
100Mbps fiber optic module equipped with a
dual SC-type connector. It functions as a full
fiber optic transceiver to support single-mode
fiber networks.
The FPM-SSC, when installed in a
Magnum 4K8 Switch, supports fiber
distances the same as 100Mbps multi-mode
ports because of the 100Mbps full duplex
functions capability, so it is only practical for use where single-mode fiber cable is
already installed and must be used.
The FPM-SSC is equipped with an Activity (A) LED, and LINK(L) LEDs
identical to those of the FPM-MSC. To distinguish the single-mode FPM-SSC from the
multi-mode FPM-MSC, the label “Sgl. M.” is at the top of the faceplate of the FPM-SSC.
5.2.4 FPM-MTRJ, 100Mb multi-mode FX, MTRJ small-form-factor
connector
Magnum FPM-MTRJ is a multi-mode fiber optic module equipped with a
small-form-factor MTRJ-type connector. It looks almost like an RJ-45 port, but it is
black in color. The MT-RJ’s small size
and ease of connection make it a good
choice for 100Mbps “fiber-to-the-
desktop” Ethernet connectivity. When
installed in a 4K8 Full-duplex Switch, it
supports fiber optic cable distances up
to 100Mbps full duplex no-collisions
domain distance limits, i.e., typically
2000 meters.
1
ACTIVITY
LINK
2
100BASE-FX, 10BASEFL sgl.mode
SC Connectors
1
2
A L
A L
1
2
100BASE-FX MT-RJ
Connector
1
ACTIVITY
2
LIN
