9 GKR-2011 IVUS Hardware Operator’s Guide
45975 Nokes Boulevard
Suite 115
Sterling, Virginia 20166
(703) 673-3320
www.gatekeepersecurity.com R8-02092019
The GKR-1020 (Dual-View Scanner) (page 19) is the component that captures
an image of the under carriage of a vehicle. A single camera is enclosed in the
Dual-View Scanner. This camera utilizes mirrors to capture a dual view of the
under carriage. Both the front and rear of the vehicle is scanned at a 60° angle.
Using the IVUS software, the images are stitched together allowing the
operator to isolate threats in an expedited manner. The Dual-View Scanner is
installed inside the GKR-1043-2.
GKR-1022-R

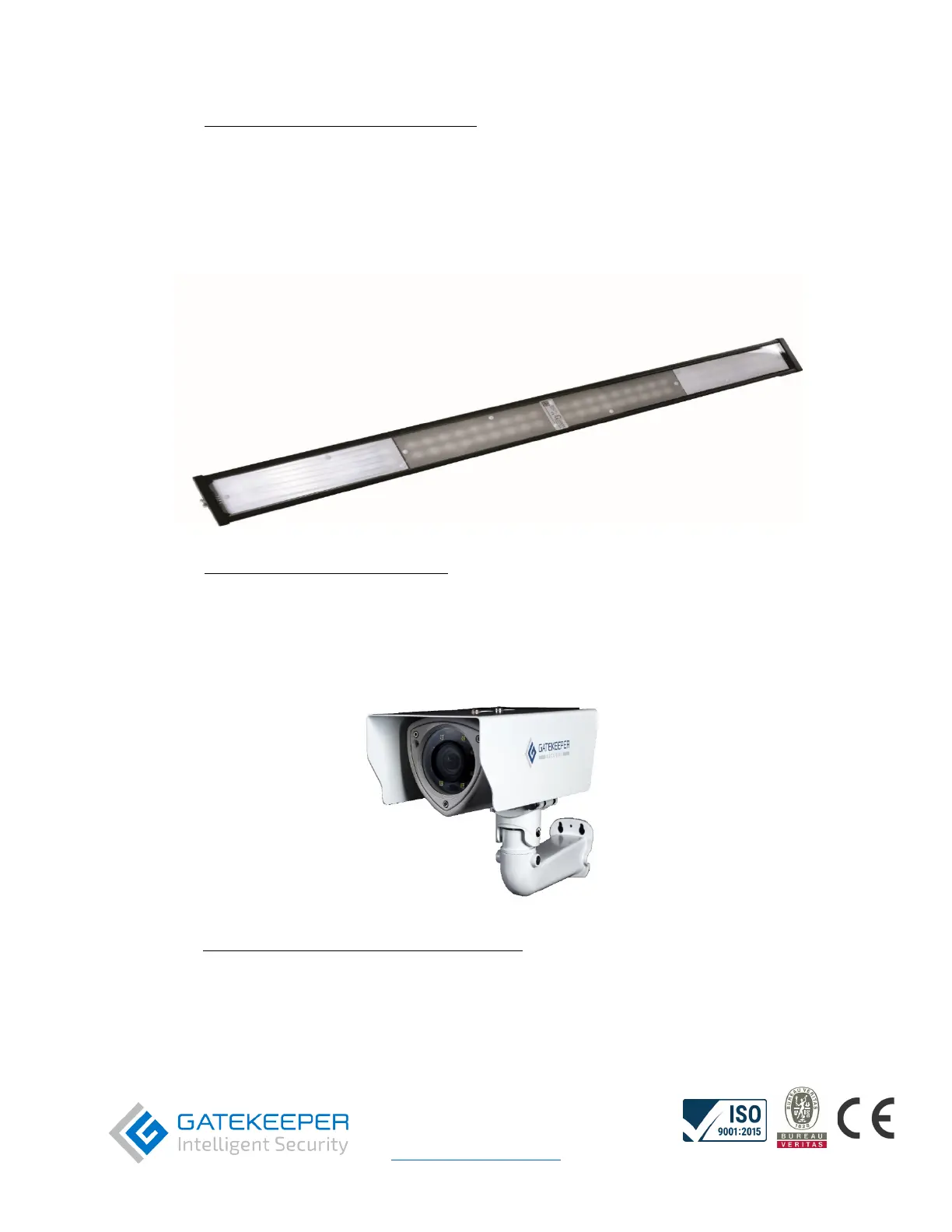

The GKR-1022-R (LED Light Rail) (page 19) works in conjunction with the GKR-
1020 to capture the undercarriage imagery. Each GKR-2011 IVUS System
contains two (2) LED Light Rails. When triggered, each GKR-1022-R floods the
underside of the vehicle with a distinctive red light. This component is installed
on both sides of the GKR-1020 inside the GKR-1043-2.
GKR-7067
The GKR-7067 (Multi-functional Camera) (page 20) captures both a still image
and video of every vehicle crossing the GKR-1011 IVUS System. This camera can
assist in viewing vehicles when the operator does not have a direct view of the
GKR-1011 IVUS System. Additionally, when the ILPA option is selected, the GKR-
7067 captures imagery of the vehicle’s license plate. It is placed on the GKR-
1086.
