Gates MC2000 - Position and Fitting of the dies

MC2000 USER GUIDE
12
3. 5 – POSITION AND FITTING OF THE DIES:
In order to crimp GATES couplings correctly onto GATES hoses, it is necessary to adhere to the
installation positions of the dies and to the crimping positions below:
or

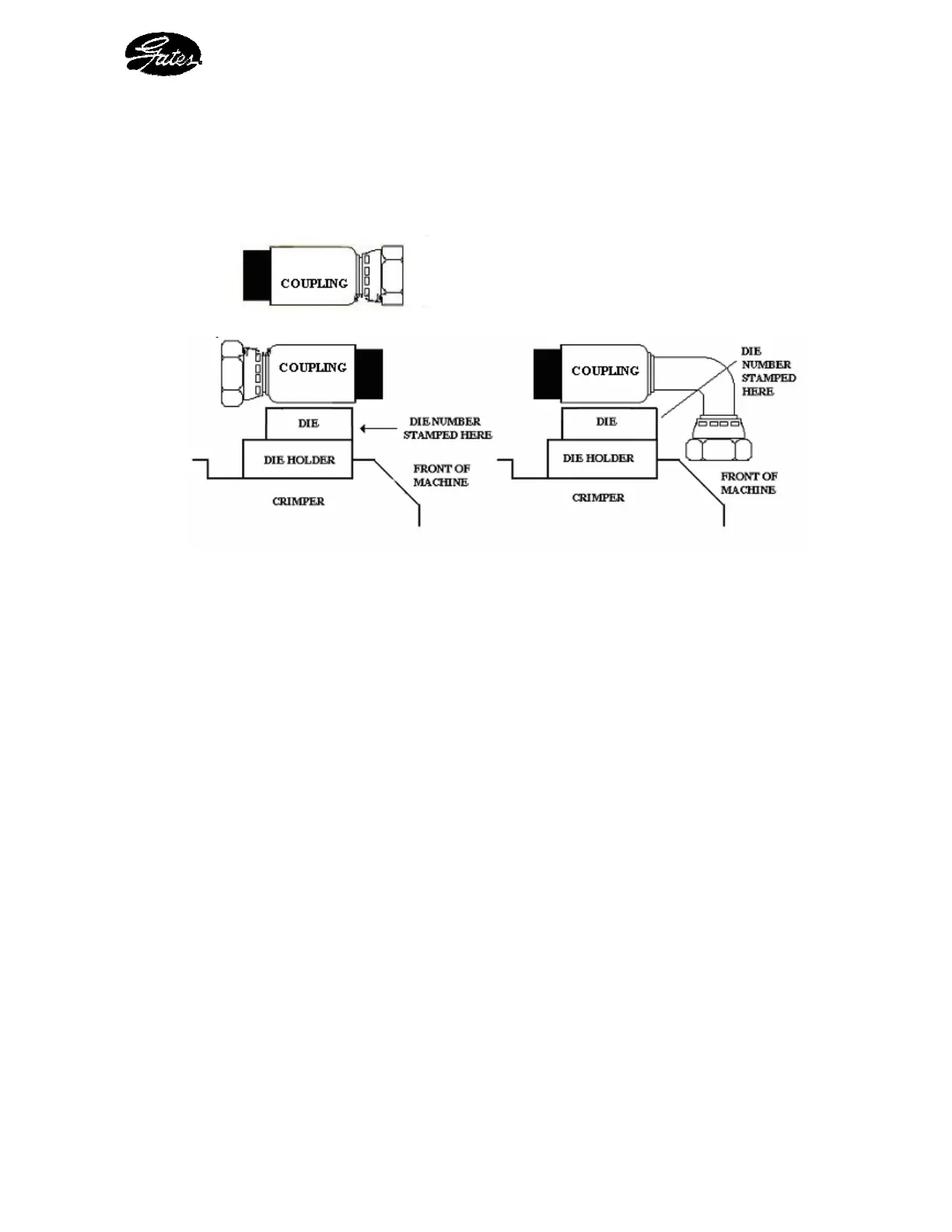

Fig. 5 Crimping positions and installation of dies for crimping G and GS type couplings
