MC2000 USER GUIDE
5
2. 3 - OPERATING PRINCIPLE:
This machine comprises 3 assemblies : the manual hydraulic pump, the crimping head with
manual stop and the electrical system.
2. 3. 1 - PUMP :
This provides the hydraulic power required to move the dies during the crimping process.
Its characteristics are specially designed to provide the best compromise between available
power, die movement speed and ease of handling.
Contents and operating principle
The pump comprises (see figure 1) :
- a hinged lever (1)
- a piston (2)
- a valve (3)
- an oil tank (4)
- 2 non-return valves (5)

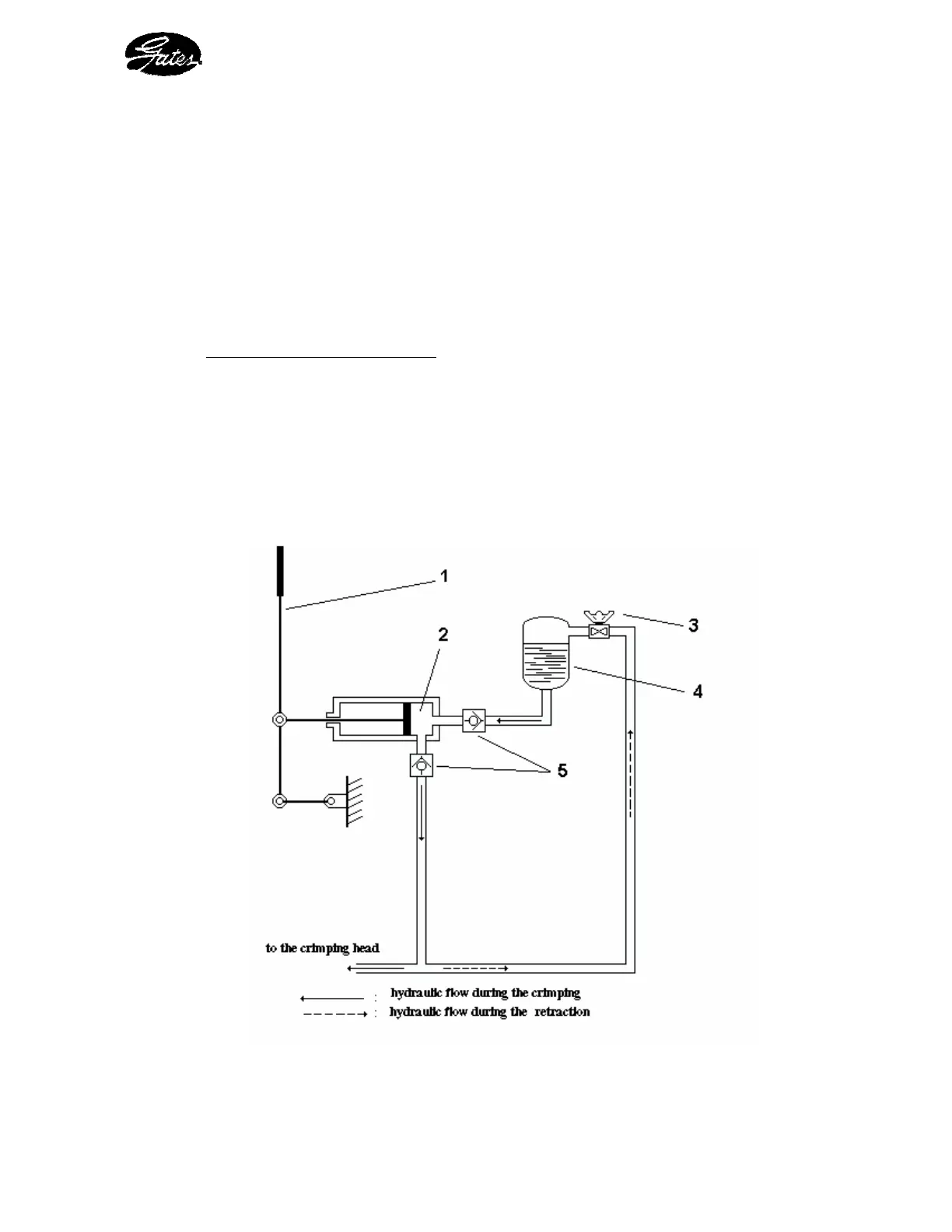

Figure 1 : Schematic diagram of hydraulic circuit
