18
Replacing Gateway 450ROG Components
www.gateway.com

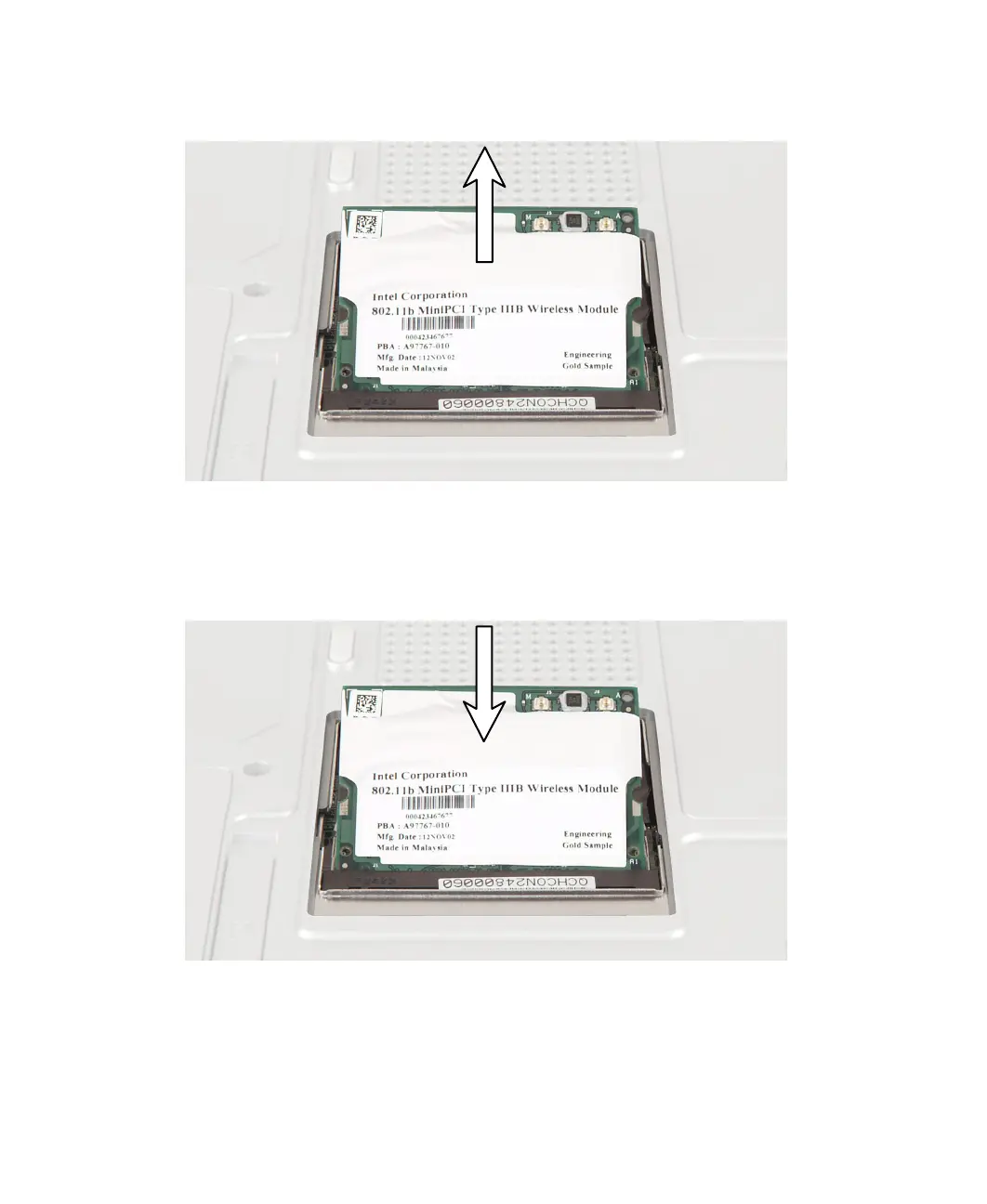

10 Pull the module out of the slot.
11 Hold the new module at a 30-degree angle and press it into the empty slot.
This module is keyed so it can only be inserted in one direction. If the
module does not fit, make sure that the notch in the module lines up with
the tab in the module slot.
12 Move the antenna wires out of the way, then press the module down until
it clicks into place.
To Next Page
