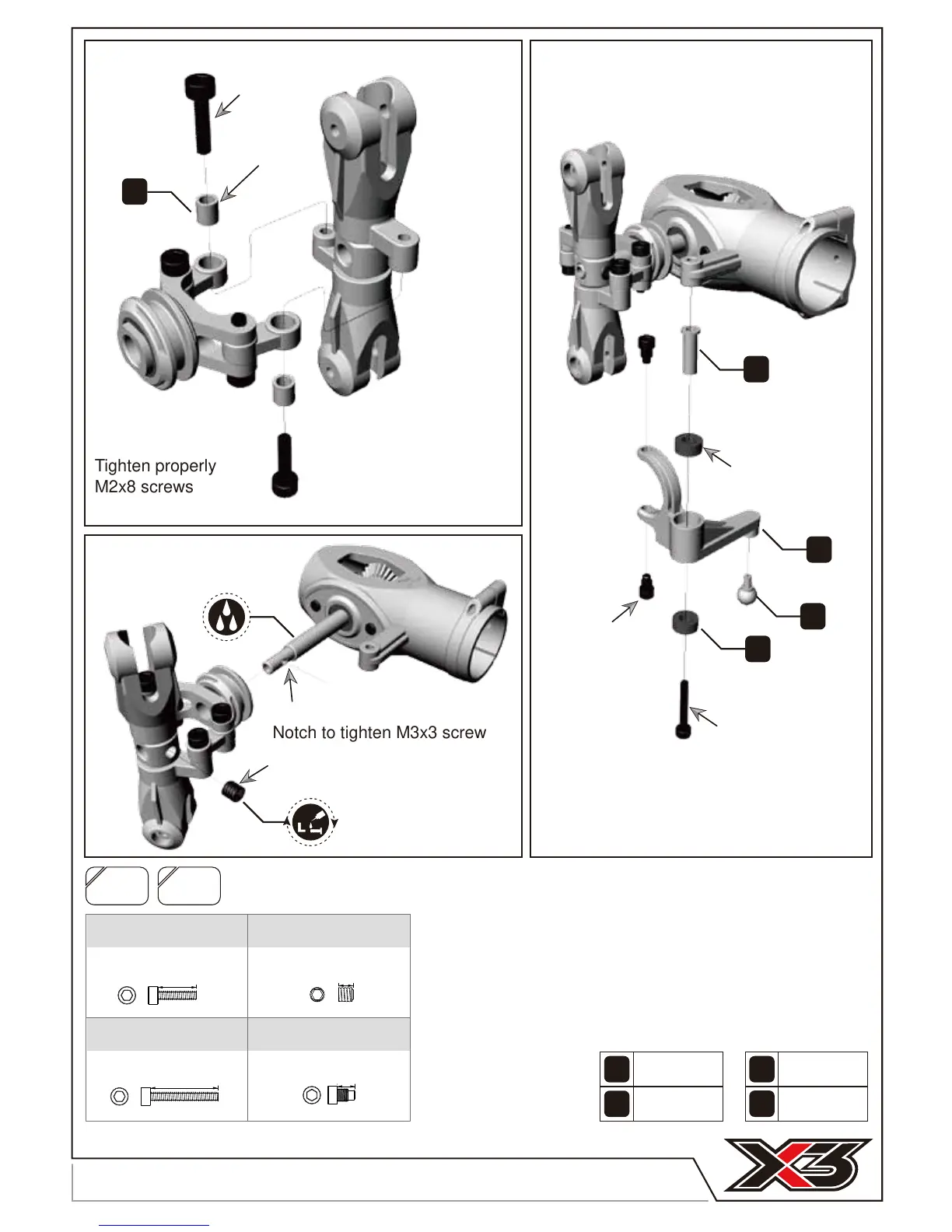

GAUI X3 - Tail Push Rod Assembly

Tighten properly
M2x8 screws
Notch to tighten M3x3 screw
P.20
Tail case assembly
尾殼組裝
8.0
14.0
3.0
3.7
M2x8
M3x3
M2x14
M2.6x3.7
P2x2.95x3.1
M2x14
#842014
x1 pcs
M2.6x3.7
#216143
x2 pcs
#216341
1
3
#883552
2
1
1
#216143
4
2
14
M2x8
#842008
x2 pcs
M3x3
#842029
x1 pcs
15
#805107
3
固定點
適當鎖緊M2x8螺絲。
Bearing
3x6x2.5
4
