GAUI X5 - Motor Assembly; 馬達組立

10
4

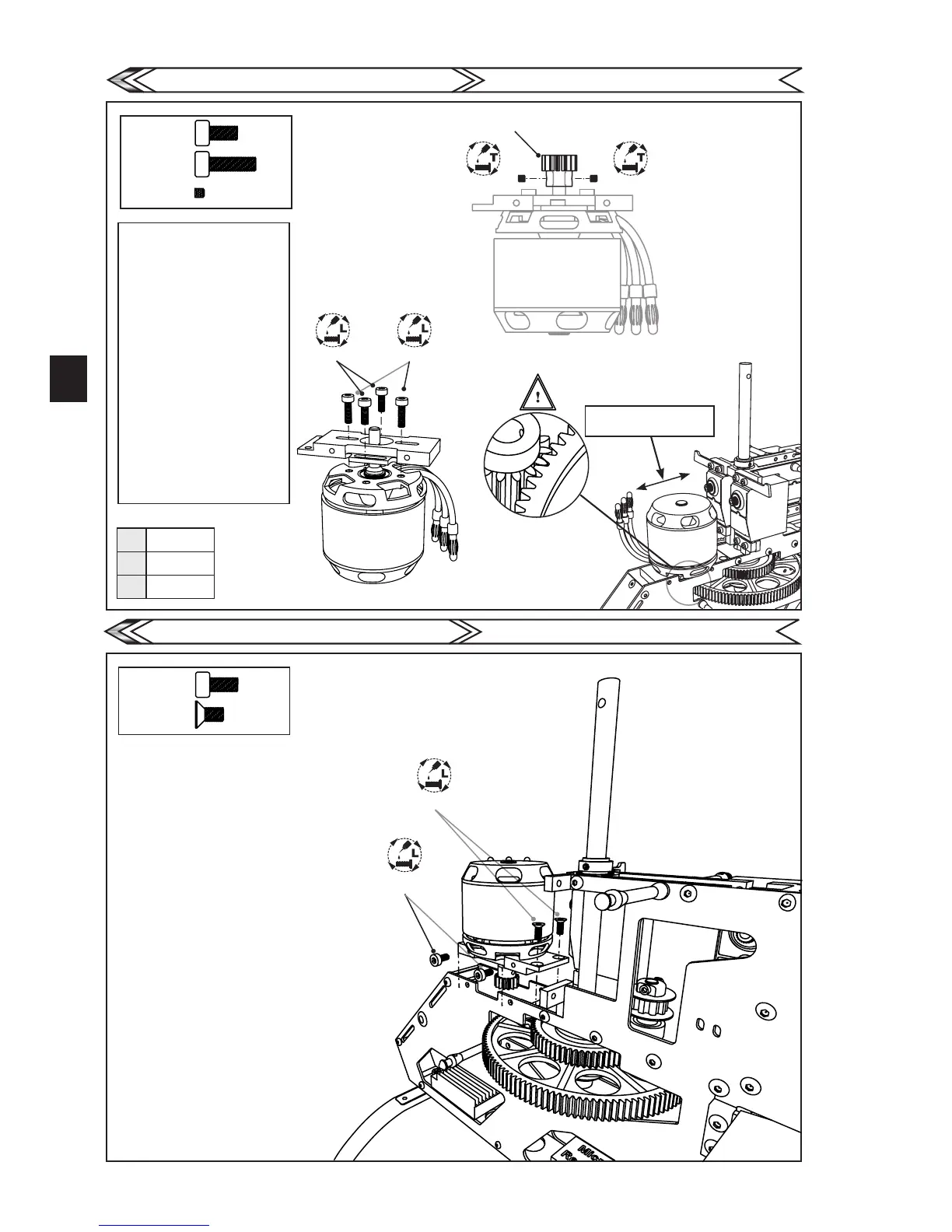

Motor Assembly - 1
Motor Assembly - 2
馬達組立 - 1
馬達組立 - 2
#A
#B
#C
1. Install motor to motor
plate with screws M3x6,
M3x10 (not locking at this
moment), insert 16T motor
gear, check position of
gear and motor shaft, lock
M3x3 screws.
2. Insert motor set into
fuselage, adjust gear
mesh. Finally lock M3x6,
M3x10 rmly.
Adjust Gear Mesh
a.M3x6
a.M3x6
b.M3x10
b.M3x10
c.M3x3
c.M3x3 c.M3x3
1.將馬達組裝至馬達板上並含
上M3x6、M3x10螺絲不鎖緊，
套入16T馬達齒並注意馬達齒
與軸心切齊後鎖緊M3x3。
2.再將馬達總成置入機身調整
適當間距(約0.1mm)，
確認間距無誤再將M3x6、
M3x10鎖緊。
調整間隙
#A
#208786
#B
#208359
#C
#208601
a.M3x6
a.M3x6
b.M3x6
b.M3x6
