GAUI X5 - Tail Rotor Assembly-2; Adjust Gear Mesh and Tail Fin Assembly

13
Adjust Gear Mesh and Tail Fin Assembly
皮帶調整&水平翼組裝
GAUI
4
a.Ø3x3
a.Ø3x3
b.Ø3x8
b.Ø3x8
Pay attention to the
belt installation orientation.
Clip to belt gear and adjust to
sufcient tightness.
#A

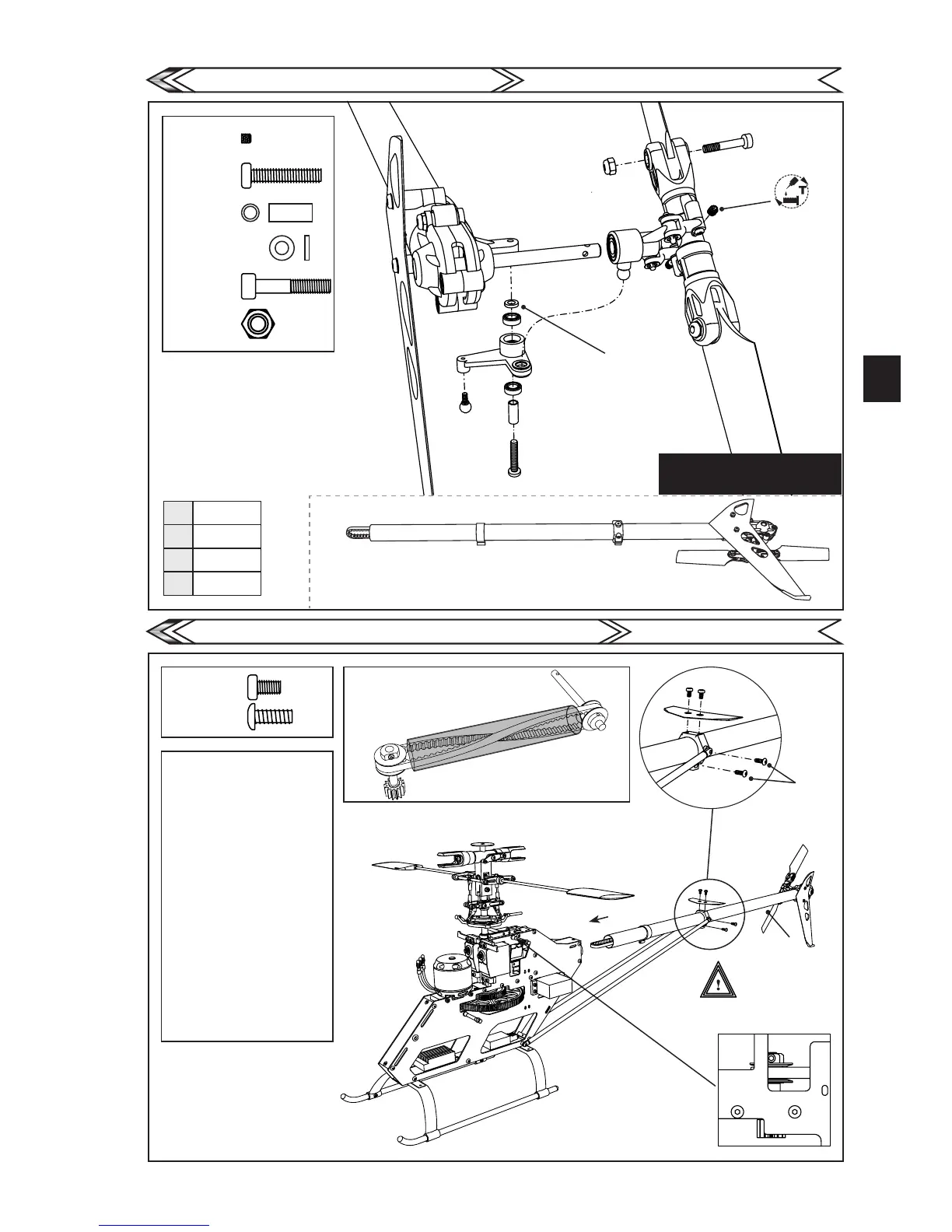

Tail Rotor Assembly-2
尾旋翼總承組立-2
1.將尾管總成置入機身。
2.將皮帶扣上前皮帶齒輪。
3.調整皮帶至適當緊度並保持
垂直尾翼與機身同垂直。
4.鎖緊 P.7 M3x18 螺絲。
5.將支撐桿鎖上尾管夾。
6.鎖上水平翼。
7.將#A穿過尾管夾、拉桿座
含上拉桿頭。
注意皮帶安裝方向。
尾旋翼總成組裝請參考P.20
扣上皮帶齒輪並調整適當緊度
1. Install tail tube set into
fuselage, keep vertical n
aligned to fuselage.
2. Lock M3x18 rmly. Refer P.7
(Check gear mesh).
3. Install support rods to
tail tube support.
4. lock horizontal n.
5. Insert #A through level
support, tail tube support,
ball link.
#D
#208922
#B
#208782
#C
#208921
#A
#208765
a.M3x3
a.M3x3
b.Ø3x15
b.Ø3x15
c.P3x4x9.5
c.P3x4x9.5
d.W3.1x5.5x1.1
d.W3.1x5.5x1.1
Tail Rotor Assembly pleaser refer
to P.20
e.M3X16
e.M3X16
f.N3x5.5L
f.N3x5.5L
#A
#A
#D
#C
#B
GAUI
TAI SHIH HOBBY CORPORATION
