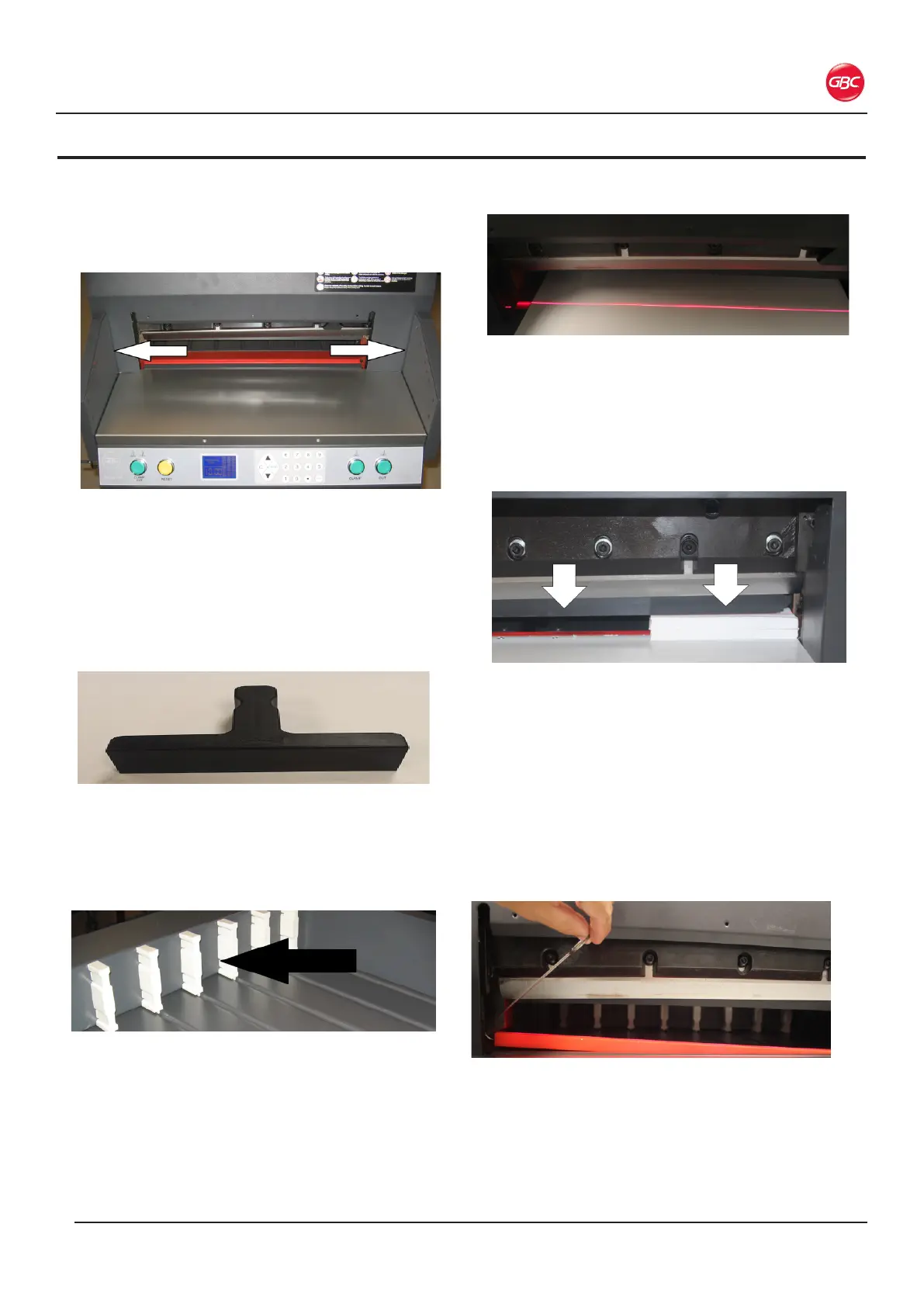

5. Feature GuIde
This chapter identies the main components of the
machine.
InFrared saFety Walls
Figure 3. Infrared Safety Walls
The side walls on the working table contain infrared
sensors which prevent the machine from operating when
the sensors are obstructed. If an obstruction occurs, up
to 65mm above the working table, an alarm sounds and
the cut and clamp functions will not operate.
JoGGInG aId
Figure 4. Jogging Aid
The Jogging Aid is used to register the paper against the
Back Gauge.
Back GauGe
Figure 5. Back Gauge
Sets the proper position for cutting based on the values
entered through the Control Panel. Media is then pushed
against the Back Gauge using the Jogging Aid, to ensure
a straight and accurate cut.
laser cut lIne
Figure 6. Red LED Laser Cut Line
The cut line, as shown in the photo above, is visible
only when the machine is turned ON. The line indicates
where the paper stack will be cut.
the claMP & cuttInG Blade
Figure 7. The Clamp (dark grey) and Cutting Blade
The Clamp activates rst, pressing and holding down the
media to ensure a clean cut. The Cutting Blade then cuts
the stack. The blade should be sharpened or replaced
every 2000 – 3000 cuts based on 20 lb. bond paper.
Cutting Blades can be sharpened multiple times but it
is recommended not to remove more than 8mm off the
blade. The number of times you can sharpen the blade
will depend on the types of media being cut.
cut stIck
Figure 8. Cut Stick (red) and Removal Tool
The Cut Stick provides a clean cut as the Cutting Blade
makes contact with it. The Cut Stick can be rotated to
provide eight cutting surfaces.
