GBC 17P User Manual

Page 5-3
ProCut 17P – Installation and Operating Instructions
When display is in menu mode, the Up and Down arrow
buttons are used to scroll through the menu and to
increase or decrease selected values.
enter:
Use the Enter button to access the menu mode. Once
in menu mode, use the numeric buttons to set the value
when programming or changing cutter settings.
cancel:
The Cancel button is used to:
• Delete current values
• Return to the home screen from the menu mode
• Stop a warning condition
Push:
Use the push button to move the cut sheets out from
under the clamp and blade. This is a safety feature to
keep your hands away from the clamp and blade.
c. oPeratIon Buttons

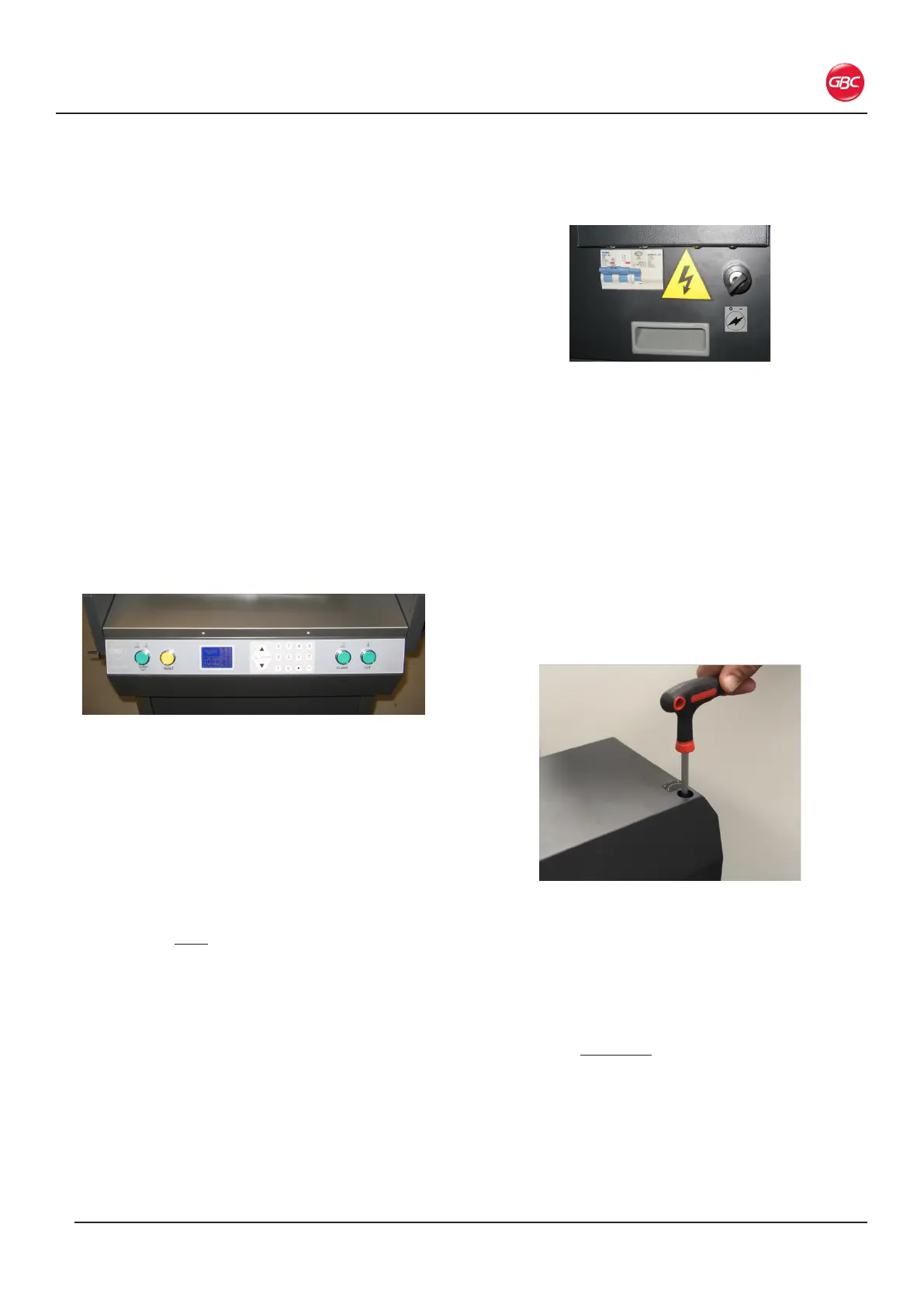

Figure 11. Operation Buttons on Machine Front
1. claMP cut
This button must be pressed simultaneously with either
the Clamp or Cut button.
2. reset
This button resets the Blade and Back Gauge to the
default position. When the machine is initially turned ON,
the Reset button must be pressed before the blade will
cycle.
3. claMP
Press the Clamp and Clamp Cut buttons simultaneously
to engage the Clamp.
4. cut
Press the Cut and Clamp Cut buttons simultaneously to
engage the Blade.
1 2 3 4
d. cIrcuIt Breaker - on/oFF key
Figure 12. Circuit Breaker (blue bar) On/Off Key
If the machine experiences an overload, or short circuit,
the Circuit Breaker will trip removing power from the
machine. If this happens, conrm that the key is in the
OFF position, reset the Circuit Breaker, then switch the
key to the ON position to apply power to the machine.
The On/Off key must be in the ON position to supply
power to the machine. When the machine is not in use,
switch to the OFF position and remove the key to prevent
use of the machine.
e. Blade adJustMent
Figure 13. Blade Adjustment Hole and Hex Wrench
In the event the Blade is not cutting through the entire
stack, the cut stick needs to be rotated. See “Cut Stick
Rotation and Replacement” If after rotating the cut stick
the Blade is still not cutting through the entire stack, then
adjust the depth of the Blade.
Insert the 6mm Hex wrench into the blade adjustment
hole and rotate clockwise to lower the blade. Refer to
“Blade Depth Adjustment” for more information.

GBC 17P Specifications

General

Brand	GBC
Model	17P
Category	Paper Cutters
Language	English
