Page 5-5
640t – Installation and Operating Instructions
me d i a co r e ad a p t e r

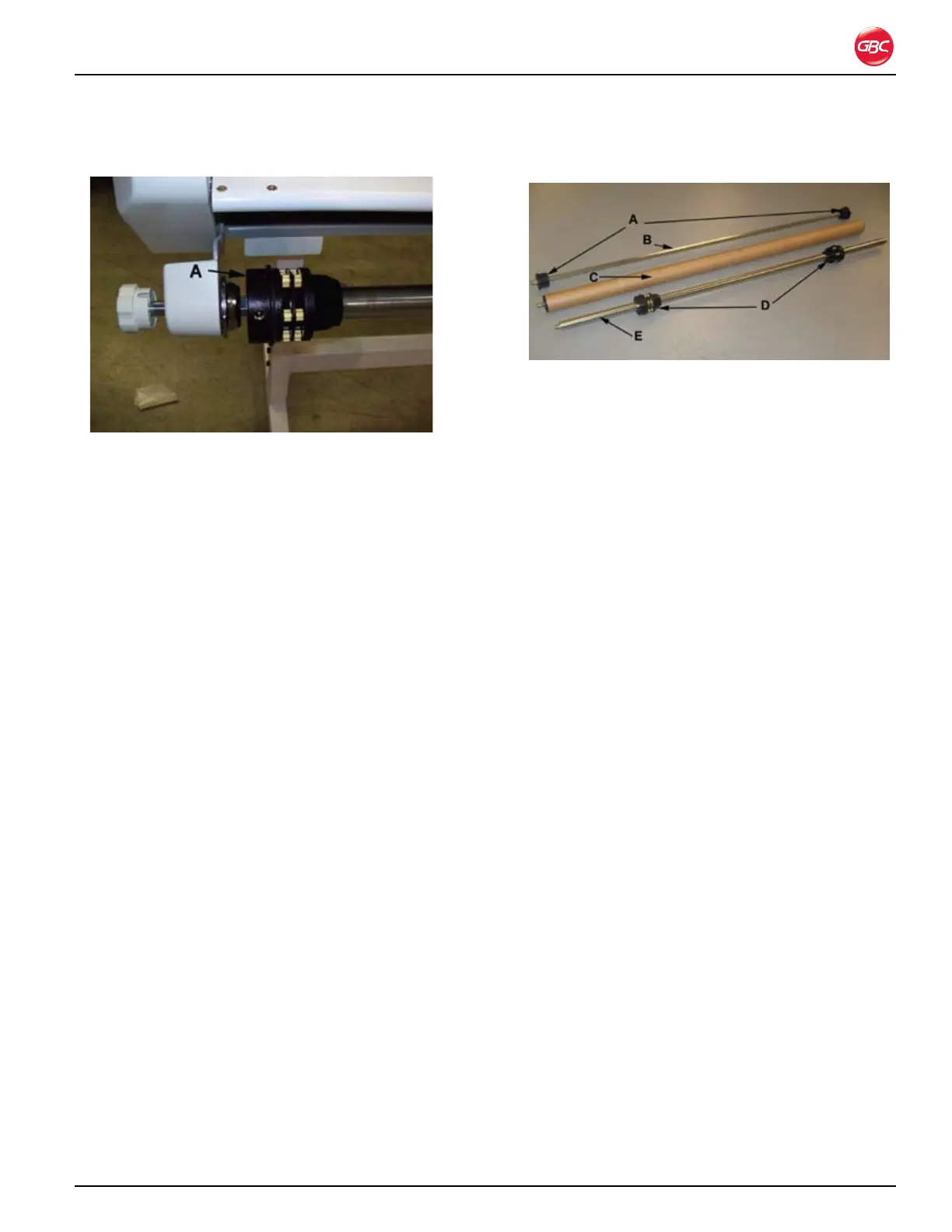

Fig. 5-9. Media Core Adapter.
The Media Core Adapters hold and lock the rolls of
lm and release liner on the shafts to prevent side to
side shifting. Grippers on the Core Adapters ensure
proper tension on the lm. The Supply Shaft Core
Adaptors lock in place with a set screw. The release
liner take-up Core Adaptors are held in place by
friction.
re W i n d e r
Fig. 5-10. Rewinder Components.
a. re W i n d e r co r e ad a p t e r s
The Rewinder Core Adapters are held in place
using friction. They adapt to the provided 2-1/4 inch
cardboard tube and most media tubes.
B. re W i n d e r sh a f t
The Rewinder Shaft supports the Rewinder Core
Chucks and tube.
c. re W i n d e r ca r d B o a r d tu B e
The Rewinder Cardboard tube carries the release
liner and media.
d. co r e ad a p t o r s
The Core Adaptors hold lm and media.
e. un W i n d /su p p l y sh a f t
The Unwind/Supply Shaft holds lm and media.
