12 MM200 MOTOR MANAGEMENT SYSTEM – QUICKSTART GUIDE
OVERVIEW QUICKSTART GUIDE

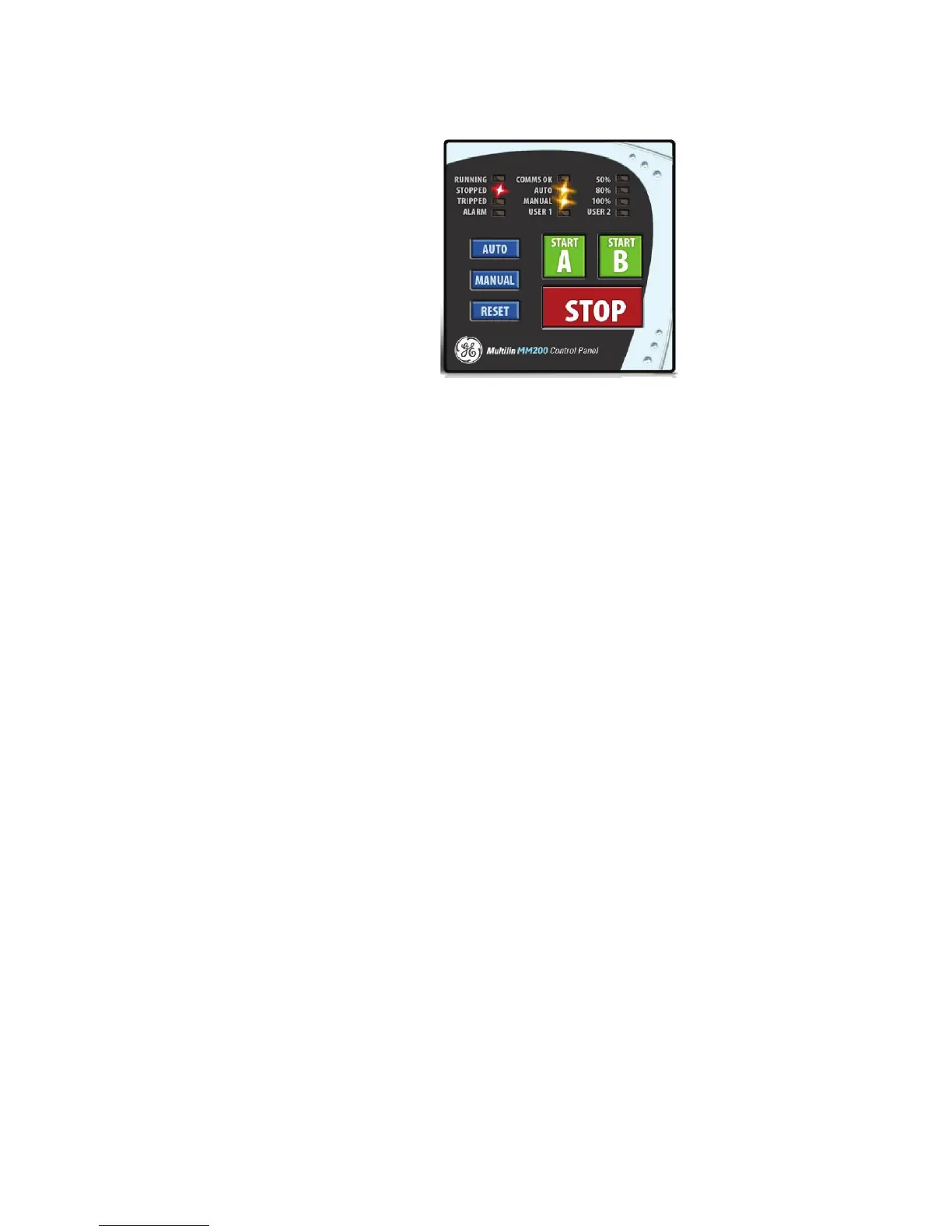

Figure 16: Basic control panel
The following LEDs are provided:
• Two USER LEDs (USER 1 and USER 2). the user can select parameters from a list
• 50%/80%/100% - showing motor load
• RUNNING, STOPPED, TRIPPED, and ALARM
• COMMS OK
•AUTO and MANUAL
