QUICKSTART GUIDE MM200 ORDER CODES
MM200 MOTOR MANAGEMENT SYSTEM – QUICKSTART GUIDE 25
1.6 MM200 order codes
The information to specify an MM200 relay is provided in the following order code figure.

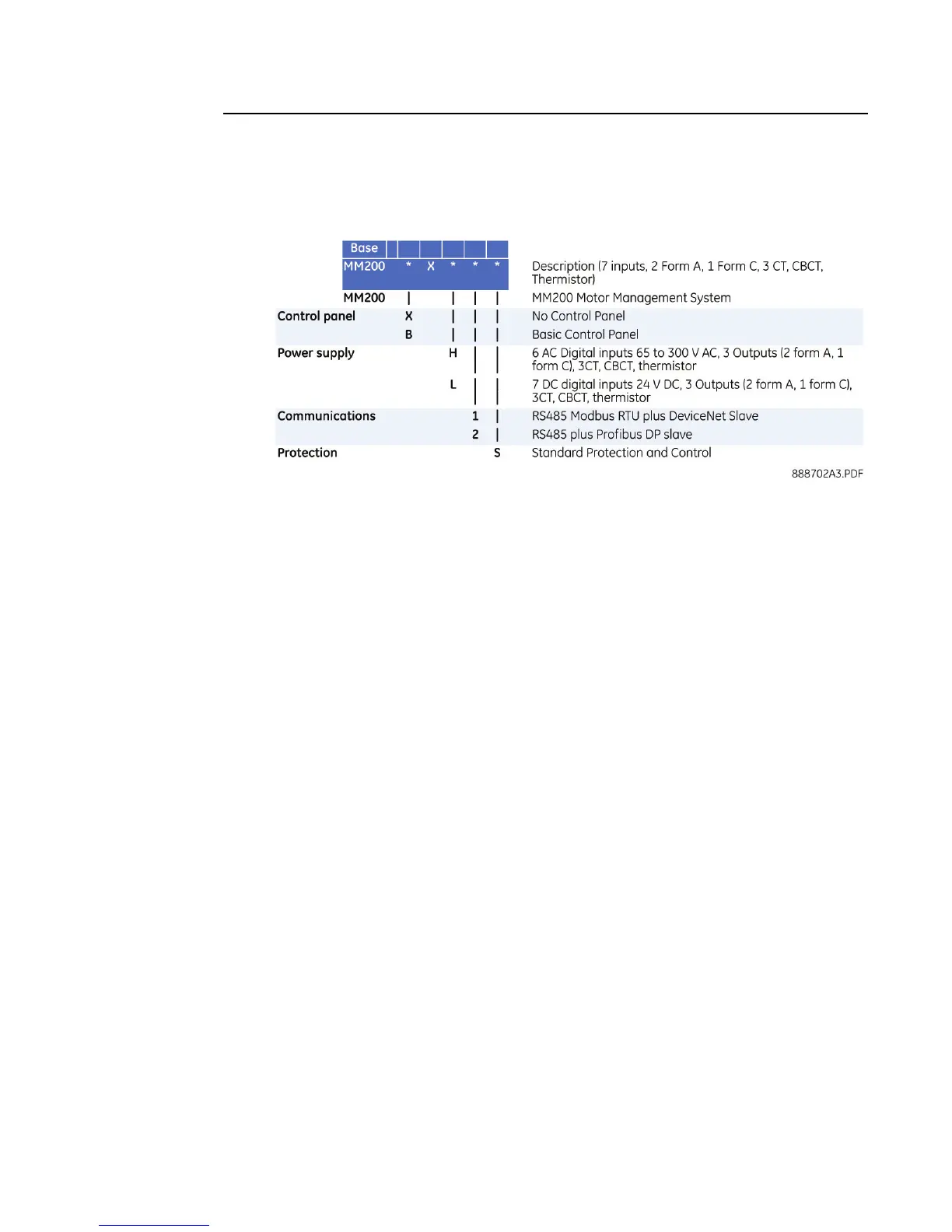

Figure 19: MM200 order codes
1.6.1 Example of an MM200 order code
MM200-BXL1S: MM200 with basic control panel, 24 V DC power supply, RS485 Modbus RTU
communications, three-phase current, thermal overload, undercurrent, Devicenet
communications, protection option.
