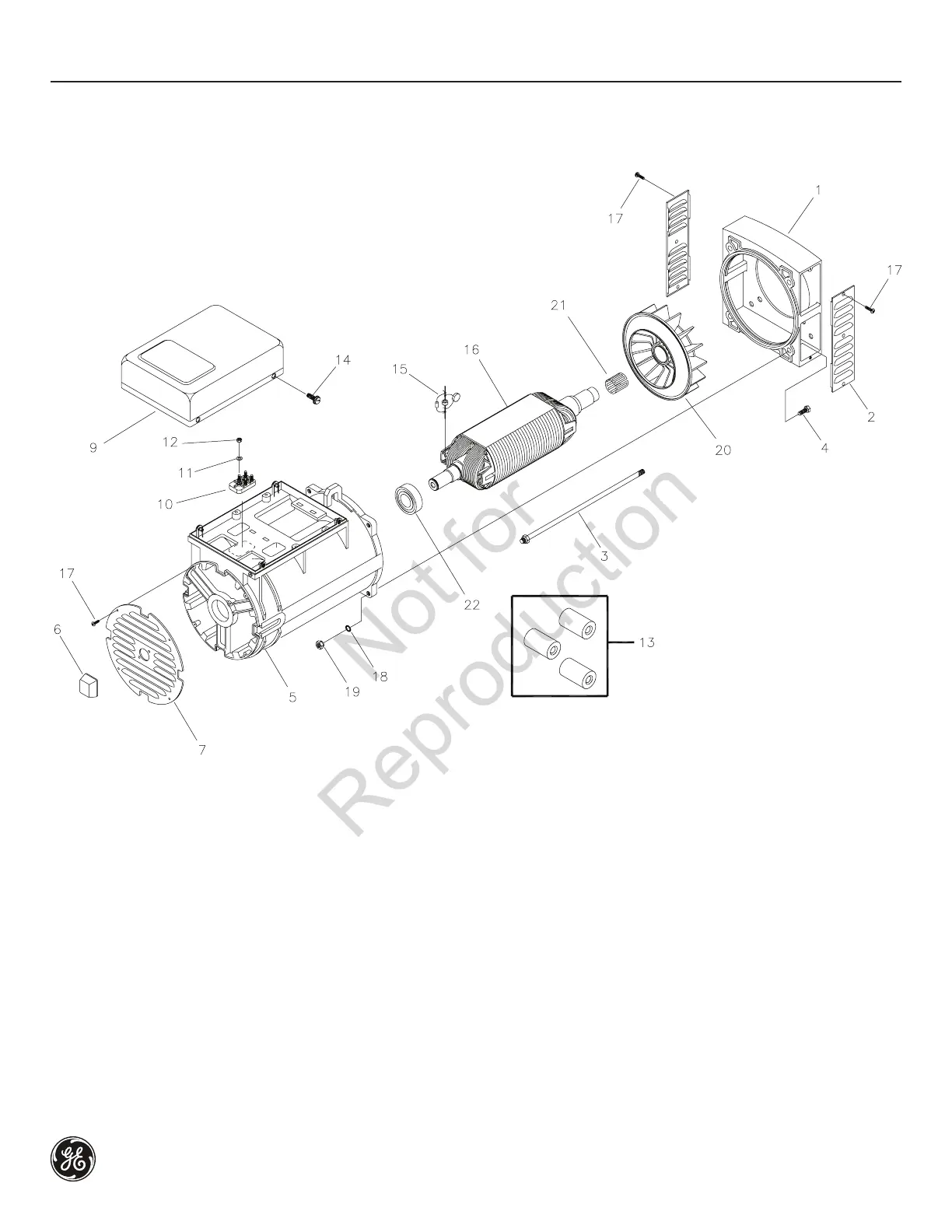

Exploded View & Illustrated Parts List - Alternator
Item Part # Description
1 192970GS ADAPTER-ENGINE
2 192973GS GRID
3 209142GS BOLT
4 31183GS SCREW
5 192969GS STATOR
6 192962GS PLUG
7 192966GS COVER-REAR BEARING
9 192967GS COVER-CAPACITOR
10 192968GS BLOCK-TERMINAL
11 * WASHER-FLAT, #10-M5
12 * NUT-10-32
13 312699GS CAPACITOR
14 * PPHMC-10-32 x 3/4
15 192972GS DIODE
Item Part # Description
16 192971GS ROTOR
17 * SCREW-M8 x 1.25 x 35mm
18 * WASHER-SHAKEPROOF, EXT. M6-1/4
19 * NUT-1/4-20
20 206897GS FAN
21 206927GS RING-FIXING
22 206594GS BEARING
* - Items without part numbers are common fasteners and are
available at local hardware stores.
