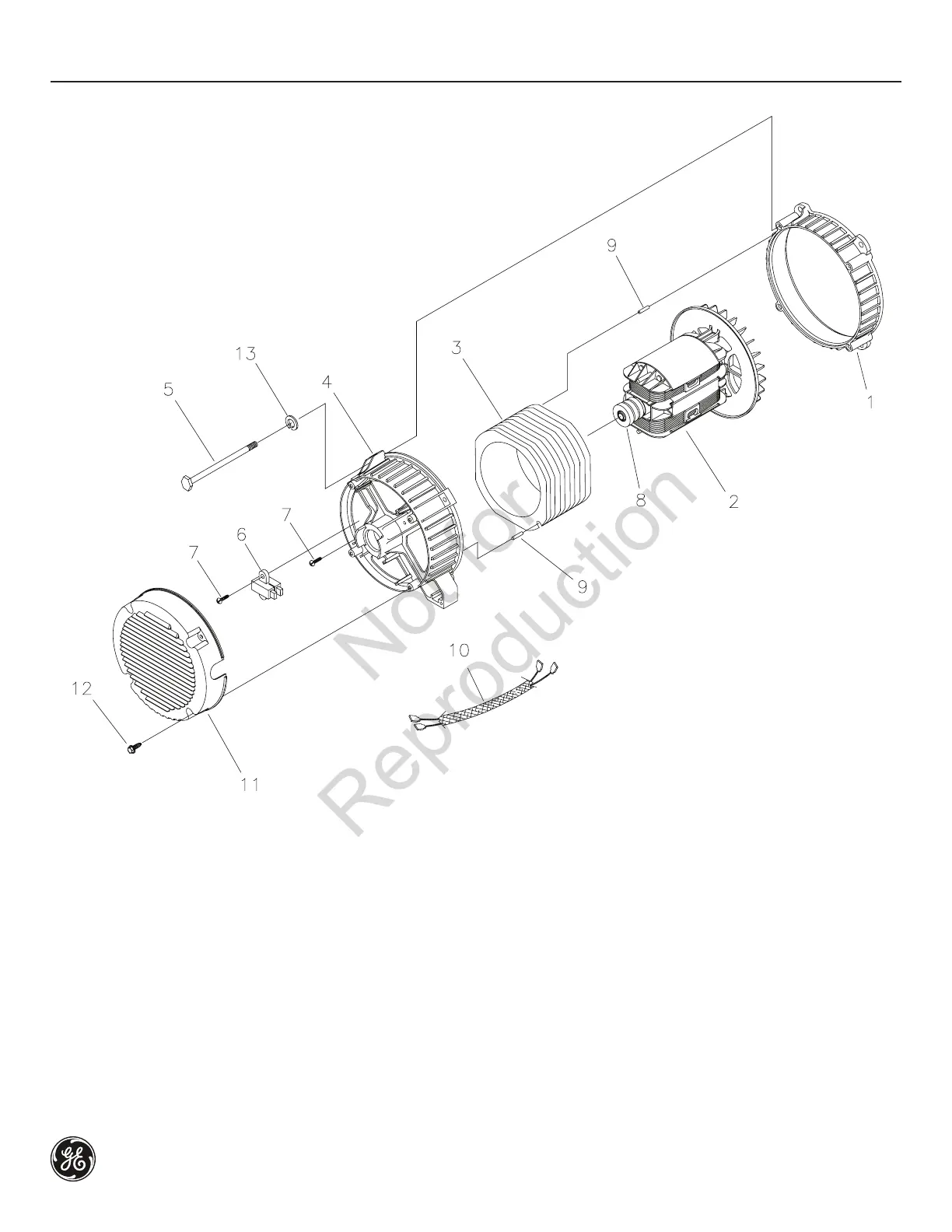

Exploded View & Illustrated Parts List - Alternator
Item Part # Description
1 209599GS ADAPTER-ALTERNATOR
2 201309GS ROTOR
3 207506GS STATOR
4 193336GS RBC (with O-Ring p/n 189197GS)
5 66449LGS BOLT
6 66386GS ASSY-BRUSH
7 66849GS TAPTITE
8 65791GS BEARING
9 81917GS PIN
10 193472GS HARNESS-WIRING
11 192906GS COVER-REAR BEARING
12 74908GS TAPTITE
13 * WASHER-1/4 LOCK
* - Items without part numbers are common fasteners and
are available at local hardware stores.
