240 VAC Setup: Timer Motor & Load same voltage
Connections:
L- Line Input to Timer Motor and Switch 1
1-Line Input to Timer Motor and Switch 2
X-Line Output of time Switch 1
2-Line Output of Time Switch 2
WARNING
• Recommended installation by licensed electrician.
• High Voltage (There may be more that one source of supply)
disconnect all power sources before servicing.
• Risk of electric shock – All terminals are live.
• Use copper wire only.
• Close the cover after setting.
• Tighten connections to 25 lbf-in.
• Use correct gauge wire (8-14 AWG) based on local electrical code
of at least 105C rating.
• Approved for outdoor use.
• Wire strip length ½”
• GROUNDING: National Electrical Code requires that grounding must be
continuous and in proper electrical contact in all grounding conductors,
metallic conduits and grounding terminals.
2XL
H
H
1
LOAD
M

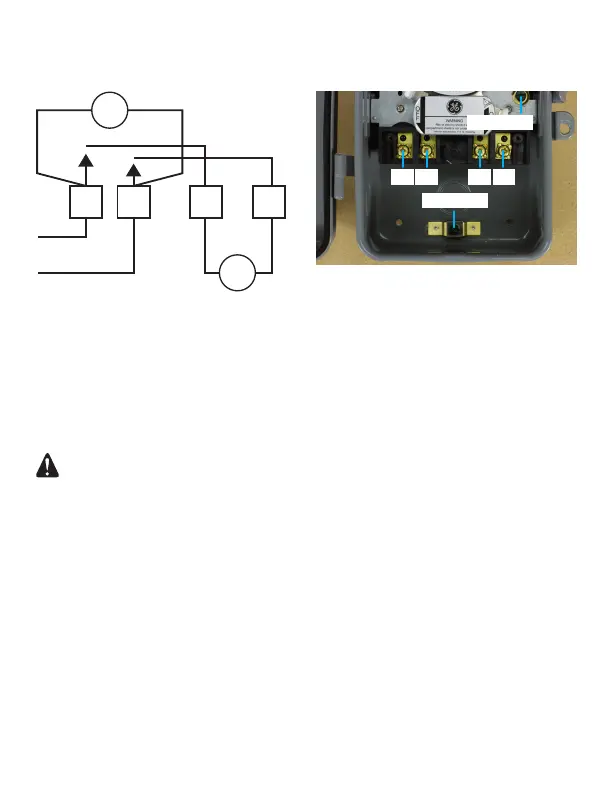

Typical for same voltage in LOAD and MOTOR
GROUND
GROUND
L X1 2
