GE 6100 Series User Manual

27
geappliances.com

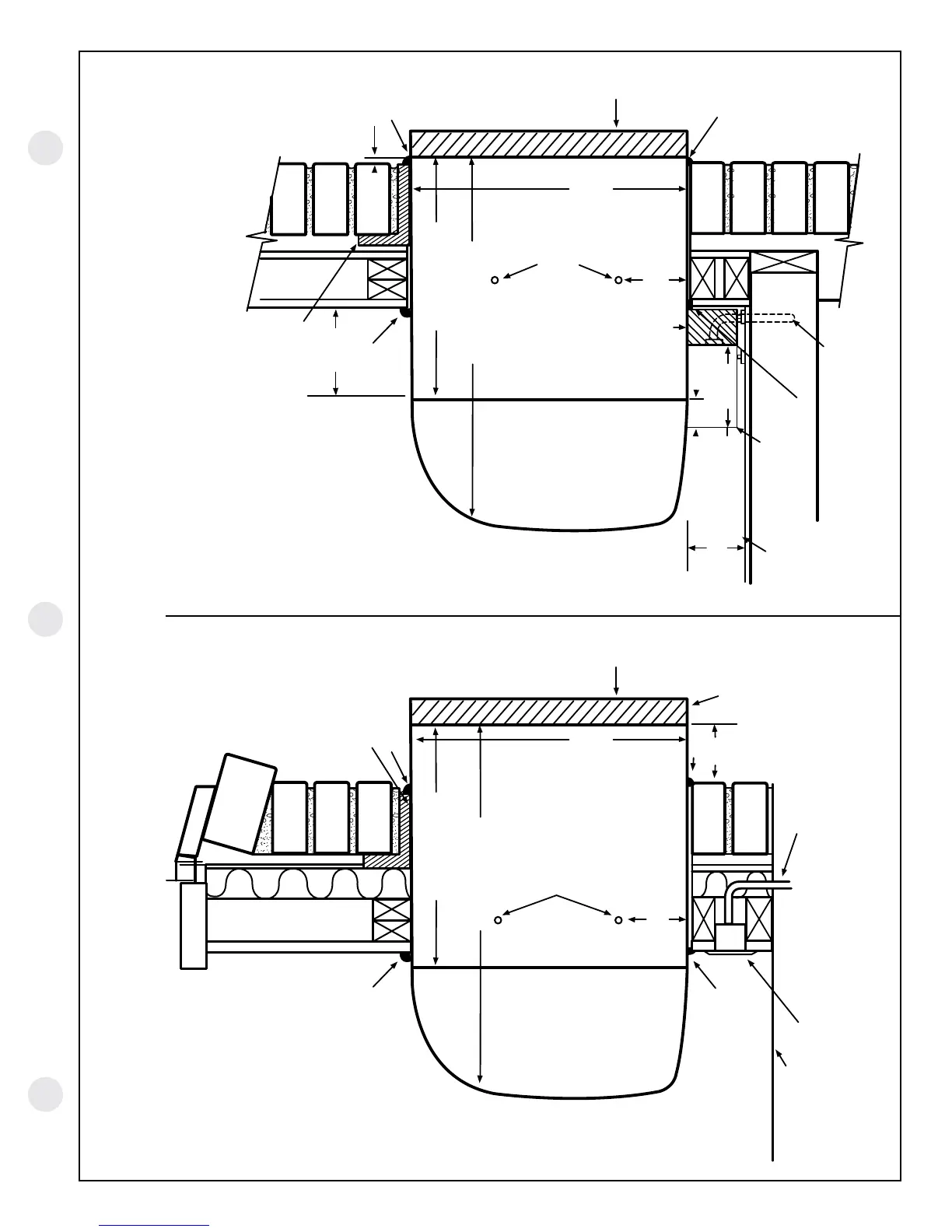

WALL SECTION – DETAILED SIDE VIEW
Frame and Brick Veneer Installation
Cord set connected
CAULK*
Sub-Base Connected
CAULK* STEEL LINTEL
RAB71A 13-3/4" RAB77 13-7/8"
20-7/8" (RAB71A) 21" (RAB77)
ROOM
CABINET
2" MIN.
MOUNTING SCREWS
BY INSTALLER
RAB71A 16" RAB77 16-1/4"
WALL CASE
OUTDOOR
GRILLE
CAULK*
CAULK*
1/4"
MIN.
RAG60 1/4" RAG61, 62, 63 1-3/8" RAG67 1-1/4"
POWER SUPPLY
CONDUIT
WALL RECEPTACLE
(BY OTHERS)
FINISHED FLOOR
OR TOP OF
CARPET
*Caulk around perimeter of wall case all four sides where it joins the building - Interior and Exterior.
CAULK* 1/4"
CAULK*
LINTEL
RAB71A 13-3/4" RAB77 13-7/8"
20-7/8" (RAB71A) 21" (RAB77)
ROOM
CABINET
2" MIN.
MOUNTING SCREWS
BY INSTALLER
RAB71A 16" RAB77 16-1/4"
WALL CASE
OUTDOOR
GRILLE
SIDE CHANNEL
3" MIN. 5" MAX.
1-5/16"
FINISHED FLOOR
OR TOP OF
CARPET
SUB-BASE
(RAK204)
CAULK*
POWER SUPPLY CONDUIT
(ALTERNATE ENTRY)
3-11/16"
*Caulk around perimeter of wall case all four sides where it joins the building - Interior and Exterior.
2-3/8"
