28

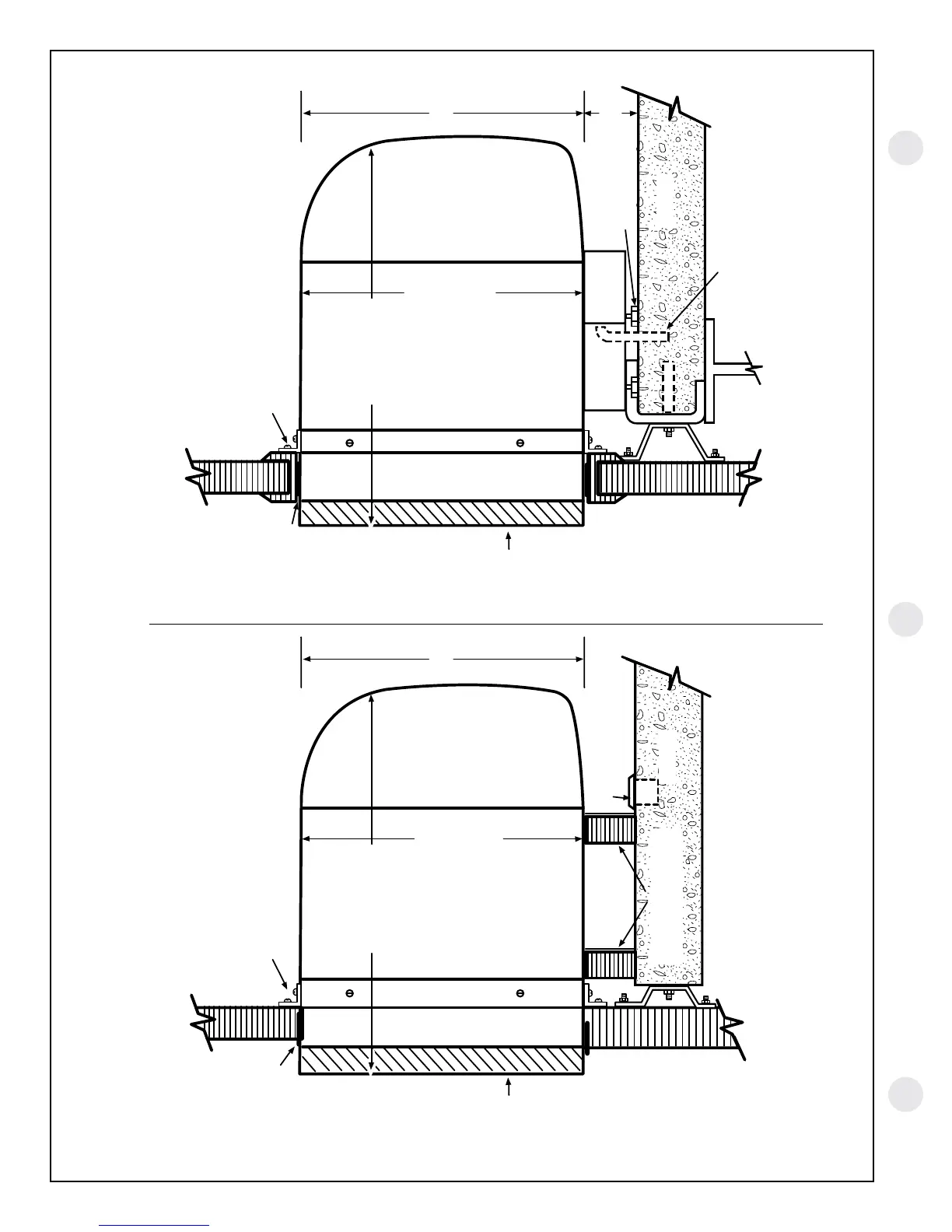

WALL SECTION – DETAILED SIDE VIEW
Window, 2" curtain or panel wall installation with rag rear grille extended beyond outer wall surface
ROOM
CABINET
Gasket and caulk around perimeter of wall case all four sides where it joins the building
WALL CASE
OUTDOOR
GRILLE
Gasket and caulk around perimeter of wall case all four sides where it joins the building
CASE ANGLE (FIELD SUPPLIED)
RAB71A 22-1/4"
RAB77 22-3/8"
WITH RAG61-63
RAB71A 21-1/8"
RAB77 21-1/4"
WITH RAG60
RAB71A
16"
RAB77
16-1/4"
RECEPTACLE
(BY OTHERS)
MIN. 2 SUPPORTS
FIELD SUPPLIED
FLOOR
USE NO
SCREWS IN
BOTTOM OF
CASE
16"
ROOM
CABINET
WALL CASE
OUTDOOR
GRILLE
CASE ANGLE (FIELD SUPPLIED)
RAB71A 22-1/4"
RAB77 22-3/8"
WITH RAG61-63
RAB71A 21-1/8"
RAB77 21-1/4"
WITH RAG60
RAB71A
16"
RAB77A
16-1/4"
16"
WALL OR WINDOW
GASKET (FIELD SUPPLIED)
SIDE
CHANNEL
(RAK204)
SUB-BASE
POWER SUPPLY
CONDUIT
(ALTERNATE ENTRY)
LEVELING LEG
3" MIN.
5" MAX.
FLOOR
Sub-Base ConnectedCord Set Connected
