3–32 869 MOTOR PROTECTION SYSTEM – INSTRUCTION MANUAL
SOFTWARE INTERFACE CHAPTER 3: INTERFACES
Quick Setup
The Quick Setup item is accessed from the EnerVista software from different screens.
Online and offline settings changes are made from the corresponding Quick Setup screen.

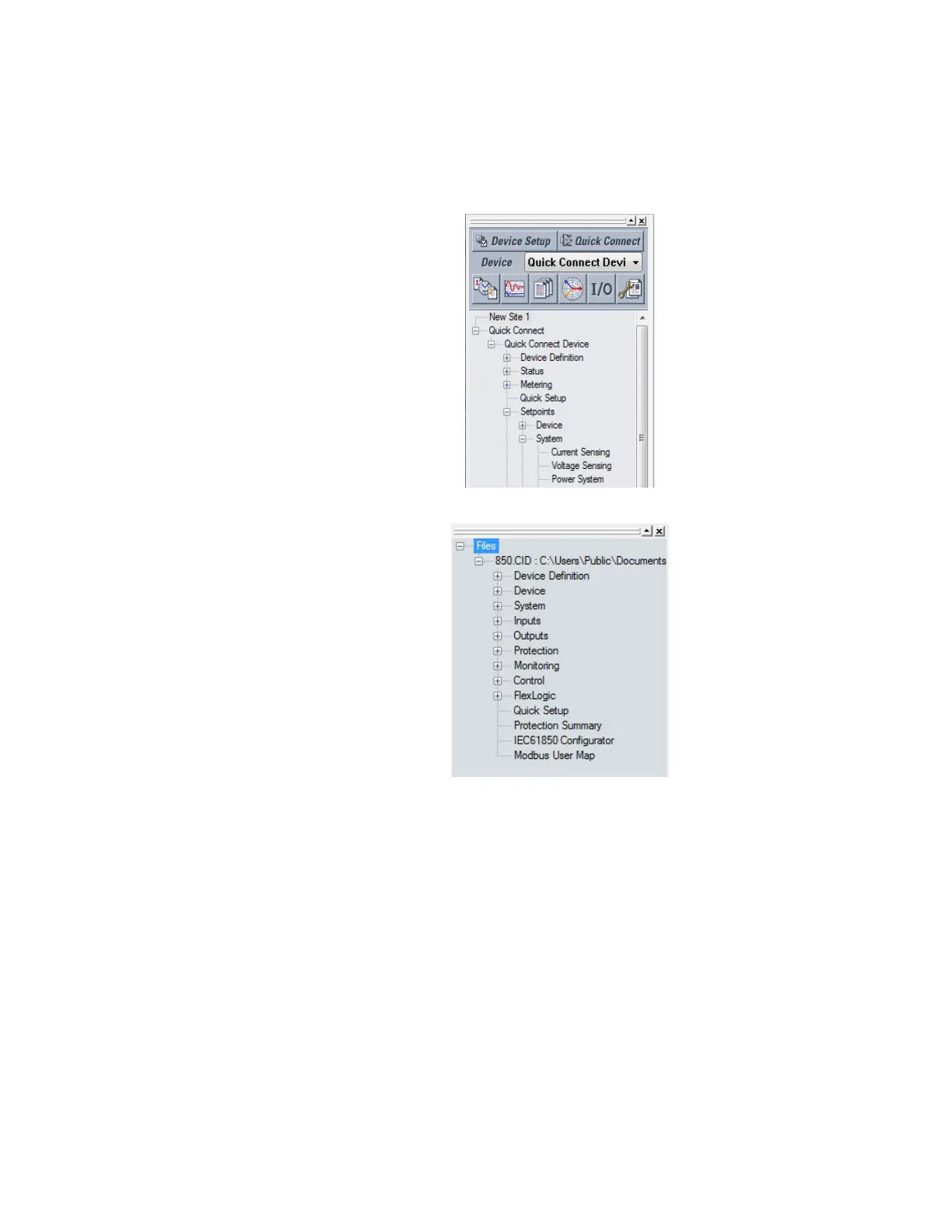

Figure 3-14: 869 Quick Setup (Online) tree position
Figure 3-15: 869 Quick Setup (Offline) tree position
Quick Setup is designed to allow quick and easy user programming. Power system
parameters, and settings for some simple overcurrent elements are easily set. The Quick
Setup screen is shown as follows:
