5–8 889 GENERATOR PROTECTION SYSTEM – INSTRUCTION MANUAL
VIRTUAL OUTPUTS CHAPTER 5: STATUS

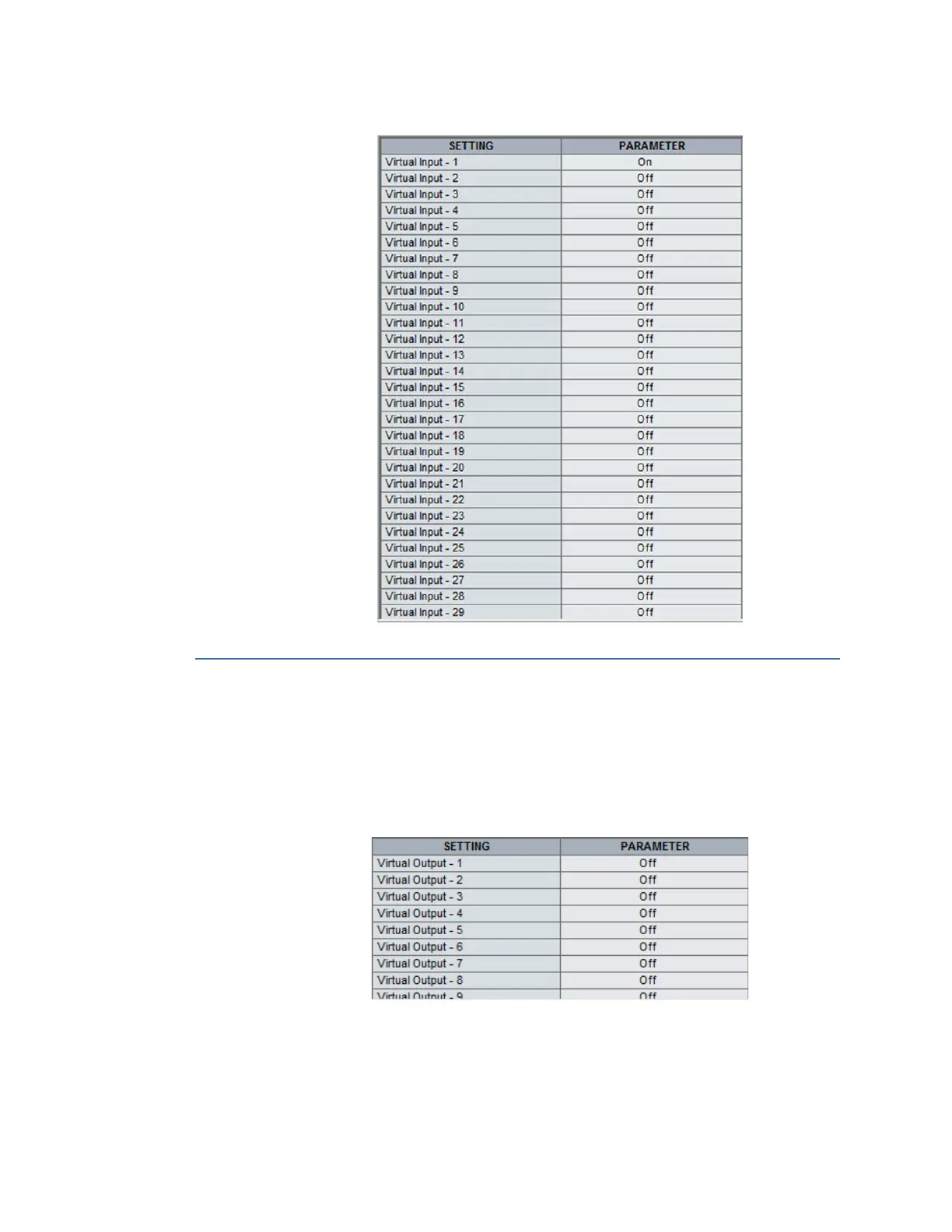

Figure 5-6: Status of Virtual Inputs
Virtual Outputs
Path: Status > Virtual Outputs
The state of all virtual outputs is shown here, see next figure. The value for each Virtual
Output is shown on the control panel graphically as a toggle switch in either the On (|) state
or the Off (O) state.
Figure 5-7: Status of Virtual Outputs
