12 49-7838
INSTALLATION INSTRUCTIONS
Installation Instructions

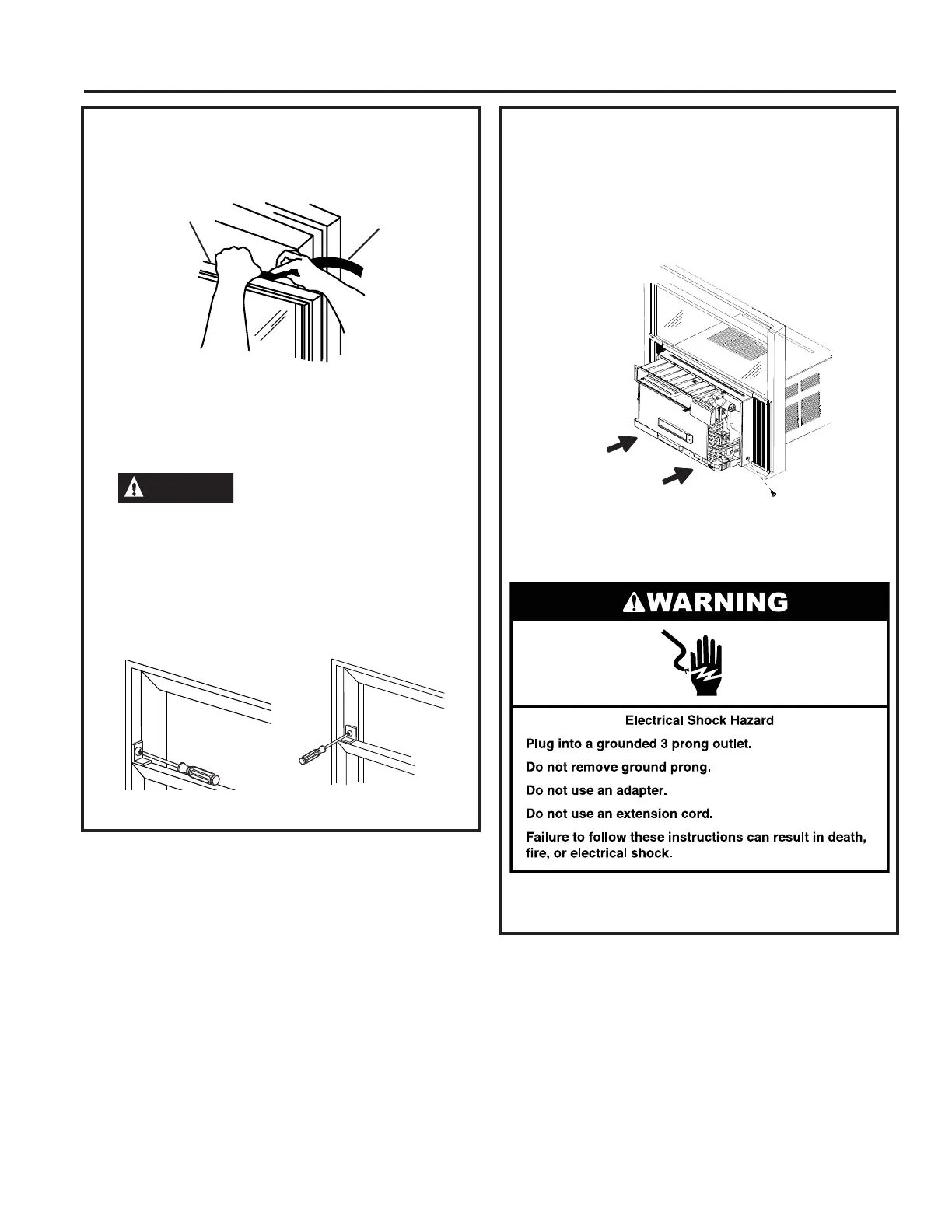

7. COMPLETE INSTALLATION
A. Insert the foam seal behind the top of the lower
window sash and against the glass of the upper
window.
B3ODFHWKHZLQGRZORFNEUDFNHWDVVKRZQ8VHD
´GULOOELWWRGULOODVWDUWHUKROHWKURXJKWKHKROH
in the window lock bracket and into the upper
window.
CAUTION
To prevent broken glass or damage to windows,
on vinyl or other similarly constructed windows,
attach the window locking bracket to the window
side jamb with one Type B screw.
C. Attach the window lock bracket to the upper
window with a type C screw to secure the
window in place.
A
B
A. Top of lower window sash
B. Foam seal
9LQ\O
Wood
8. RETURN CHASSIS TO THE
OUTER CASE
A. Once the case is securely attached to the
window, reinstall the air conditioner. Have two
people lift the air conditioner and slide it into the
case. Make sure that the corded front panel
is positioned so that it does not interfere with
sliding the air conditioner into the case.
B. Snap the front grille back onto the air
FRQGLWLRQHU8VHWKHVFUHZVUHPRYHGDWWKH
beginning of the installation to secure the grille.
Re-use screws from Step 3 on page 9.
C. Plug into a grounded 3-prong outlet.
D. Press RESET on the power supply cord. See
Electrical Requirements.
