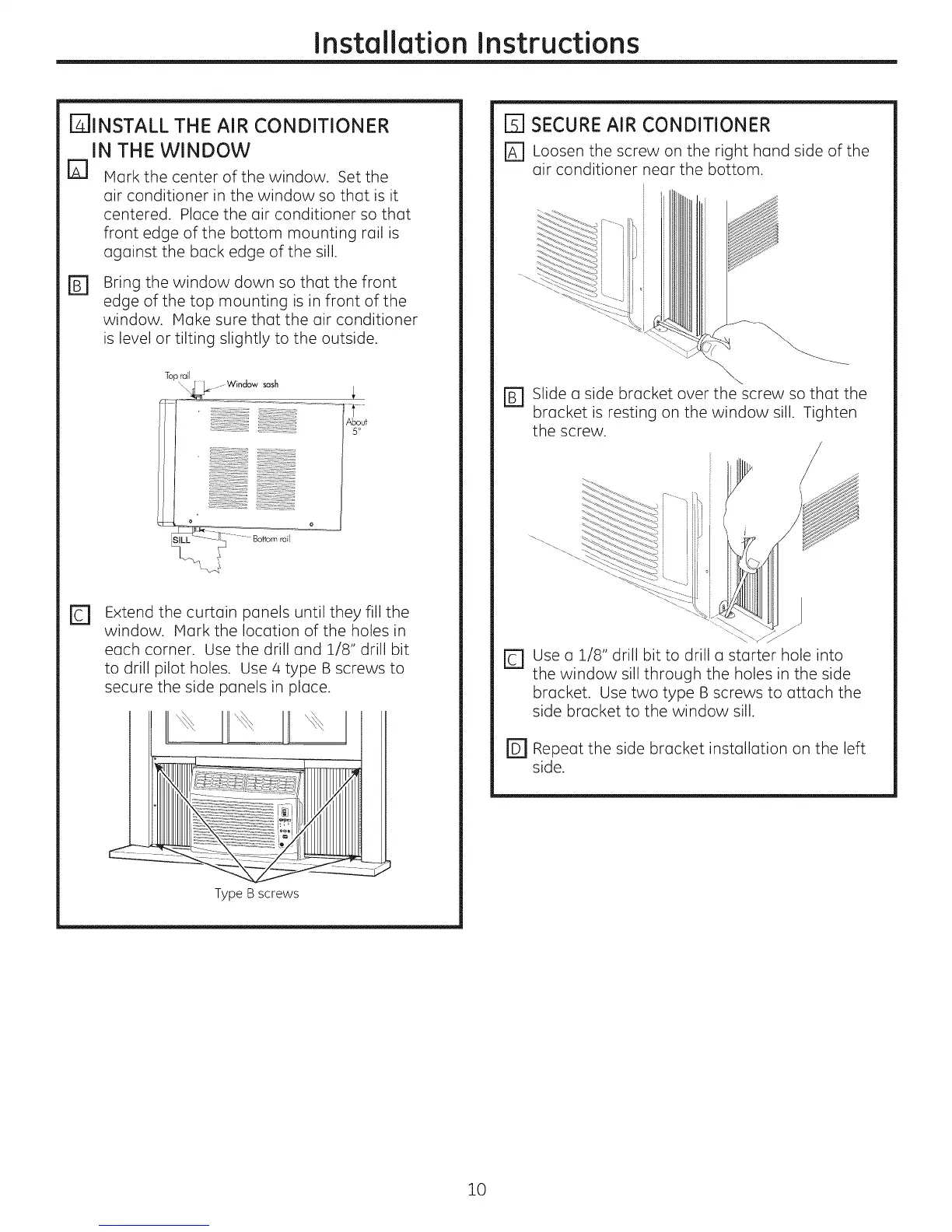

Installation Instructions
[_INSTALL THE AIR CONDITIONER
IN THE WINDOW
E] Hark the center of the window. Set the
air conditioner in the window so that is it
centered. Place the air conditioner so that
front edge of the bottom mounting rail is
against the back edge of the sill.
%
Bring the window down so that the front
edge of the top mounting is in front of the
window. Make sure that the air conditioner
is level or tilting slightly to the outside.
Top rail
,__- Window sash
i
t; ,:, : j
About
5o
I3
Extend the curtain panels until they fill the
window. Hark the location of the holes in
each corner. Use the drill and 1/8" drill bit
to drill pilot holes. Use 4 type B screws to
secure the side panels in place.
! [_ii
Type B screws
I-_ SECURE AIR CONDITIONER
r_ Loosen the screw on the right hand side of the
air conditioner near the bottom.
\
r_ Slide a side bracket over the screw so that the
bracket is resting on the window sill. Tighten
the screw.
_L_t _i_
]
E1 Use a 1/8" drill bit to drill a starter hole into
the window sill through the holes in the side
bracket. Use two type B screws to attach the
side bracket to the window sill.
F1 Repeat the side bracket installation on the left
side.
10
