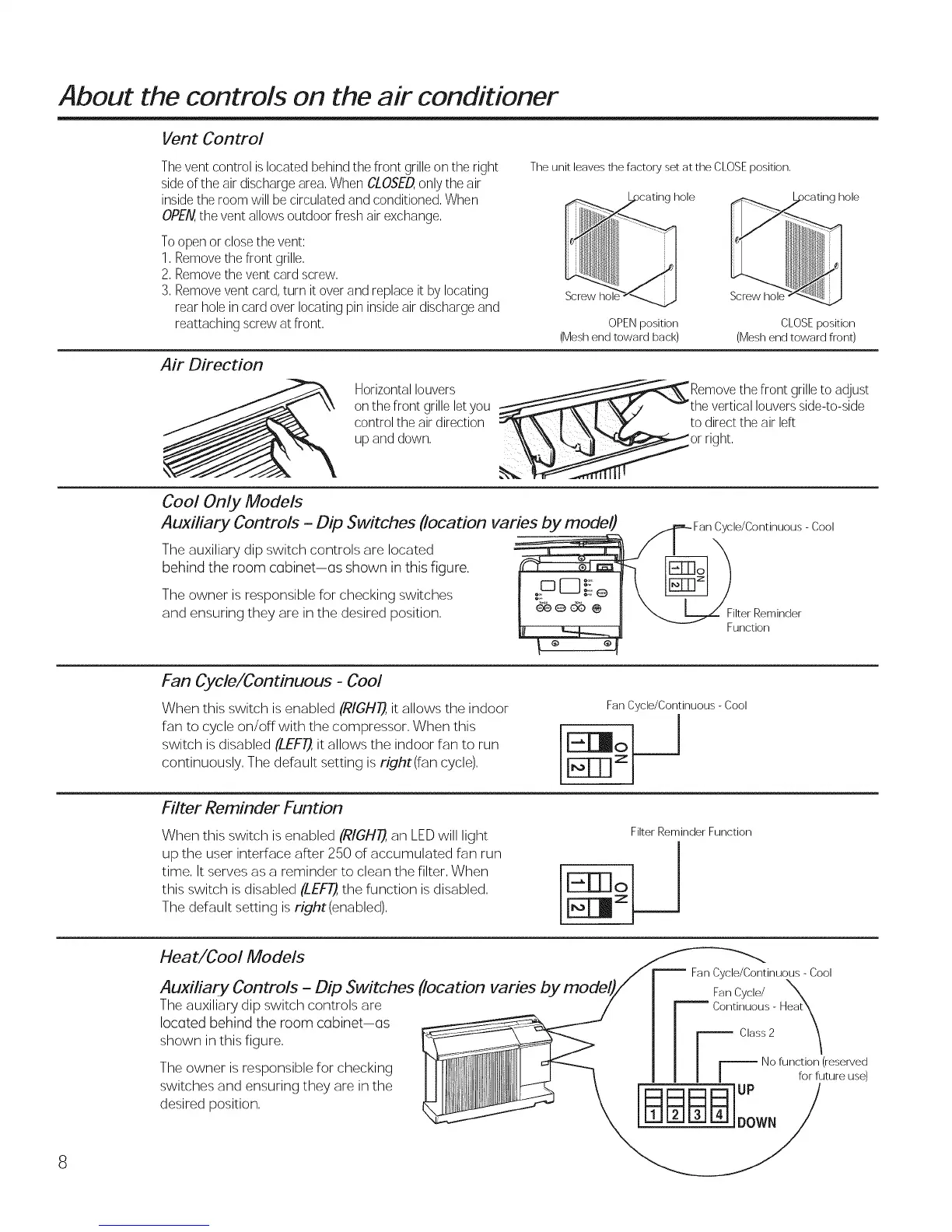

About the controls on the air conditioner
Vent Control
Thevent control islocated behind the front grilleon the right
side of the air discharge area.When CLOSED,only the air
insidethe room will be circulated and conditioned. When
OPENthe vent allows outdoor fresh air exchange.
To open or closethe vent:
1. Removethe front grille.
2. Removethe vent card screw.
3. Removevent card,turn it over and replace it by locating
rear hole in card over locating pin inside air discharge and
reattaching screw at front.
The unit leaves the factory set at the CLOSE position.
A Locating hole
OPEN position
(Mesh end toward back)
hole
Screw hok
CLOSE position
(Mesh end toward front)
Air Direction
Cool Only Models
Horizontal louvers
on the front grille let you
control the air direction
up and down.
"Remove the front grille to adjust
vertical louvers side-to-side
to direct the air left
right.
Auxiliary Controls - Dip &witches (location varies by model)
The auxiliary dip switch controls are located
behind the room cabinet-as shown in this figure.
The owner is responsible for checking switches
and ensuring they are in the desired position.
Cycle/Continuous - Cool
Filter Reminder
Function
Fan Cycle/Continuous - Cool
When this switch is enabled (RIGHt, it allows the indoor
fan to cycle on/off with the compressor. When this
switch is disabled (LEFt, it allows the indoor fan to run
continuously. The default setting is right(fan cycle).
Fan Cycle/Continuous - Cool
E[:lo
Filter Reminder Funtion
When this switch is enabled (RIGH_ an LEDwill light
up the user interface after 250 of accumulated fan run
time. It serves as a reminder to clean the filter. When
this switch is disabled (LEFt, the function is disabled.
The default setting is right(enabled).
Filter Reminder Function
Heat/Cool Models
Auxiliary Controls - Dip Switches (location varies b,
The auxiliary dip switch controls are
located behind the room cabinet-as
shown in this figure,
The owner is responsible for checking
switches and ensuring they are in the
desired position,
Fan Cycle/Continuous - Cool
Fan Cycle/ H_
F Continuous -
Class 2
_ No function (reserved
for future use)
I BBBI::w.
8
