INSTALLATION REQUIREMENTS
Installation Requirements
TOOLS AND PARTS
Gather the required tools and parts before starting installation.
TOOLS NEEDED
• Flat-blade Screwdriver
• Phillips Screwdriver

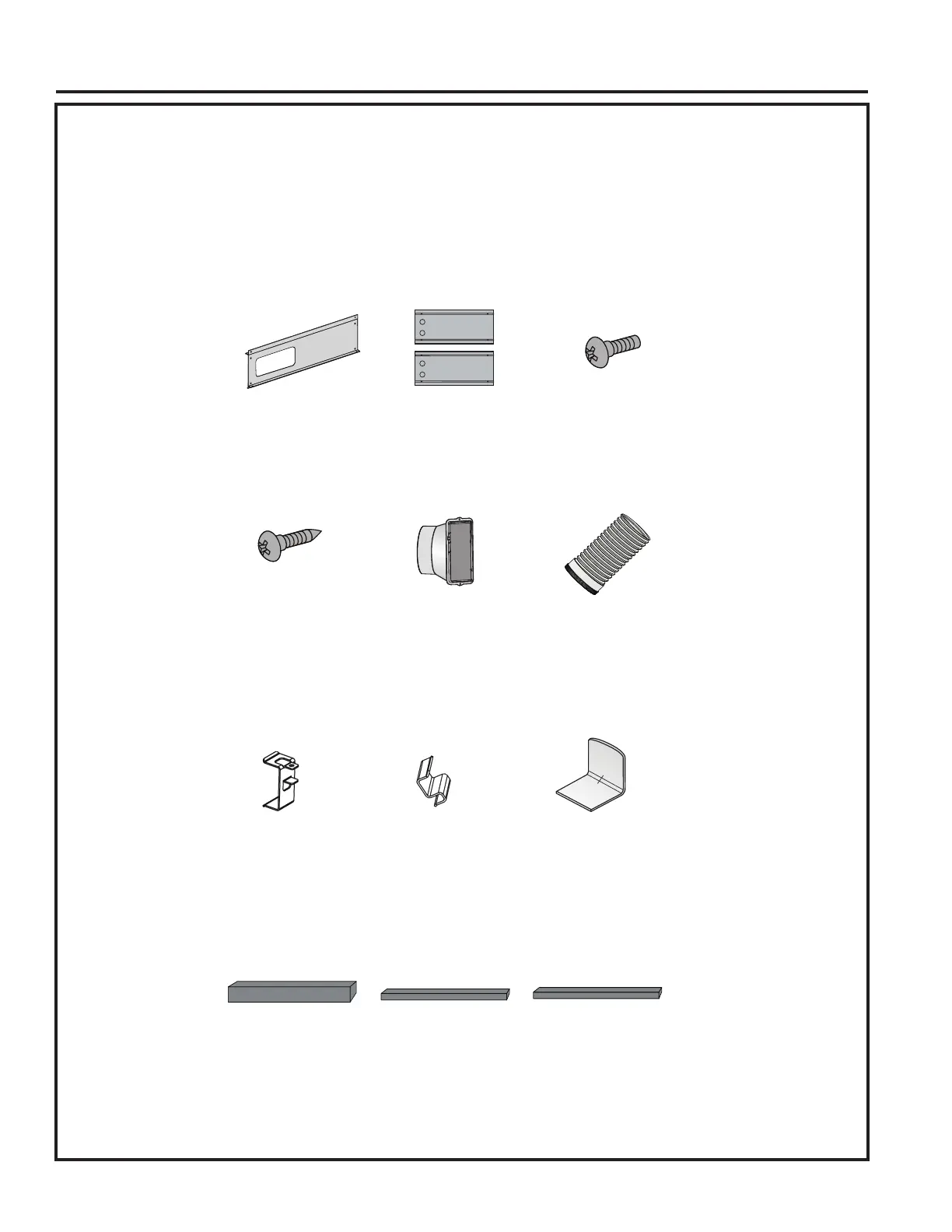

PARTS SUPPLIED
Pointed Screws (7)
2 for top window
brackets
1 for security bracket
4 for main
window panel
Exhaust
Nozzle
Exhaust Hose
Top Window
Bracket (2)
Use for Vinyl
Windows
Bottom
Window
Bracket (2)
Use for Vinyl
Windows
Security
Bracket
Main Window
Panel
Extension
Panels (2)
Flat Screws (6)
4 for extension
panels
2 for nozzles
Stuffer Seal
Strip (15 mm x 33
mm x 1200 mm)
Bottom
Foam Seal
(3 mm x 10
mm x 102 cm
Top Foam
Seal
(10 mm x 10
mm x 102 cm
