Equipment Overview
Controls and indicators
317A, 420B, 432A
Graph
When pressed, a 20-second graph strip is
printed on the writer or printer.
(not available) When pressed, a blue border displays
around the event bed and an alarm tone
sounds at the CIC Pro center. The message
Remote Event displays under the ECG
parameter window for approximately ten
seconds.It also generates a 20-second graph
and saves the event.

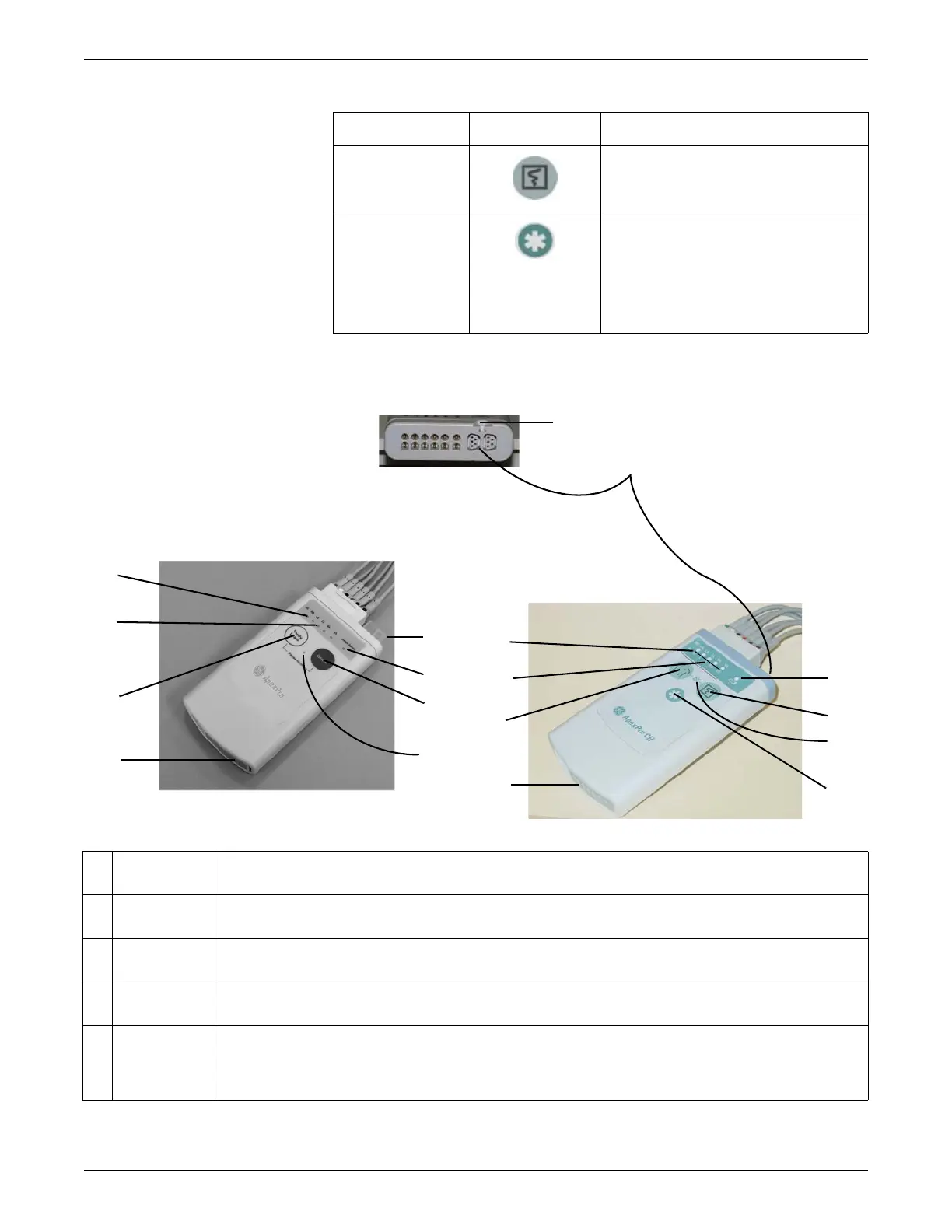

ApexPro ApexPro CH & T14 Function
A RA LED Used in troubleshooting (Frequent lead fail on page 5-21) and when manually viewing or programming the TTX
number (Manually view/program TTX on page 3-19.)
B Good Lead
LEDs
These light when testing the verify leads function.
C Verify Leads
button
Checks the lead/skin preparation quality. Pressing the Verify Leads button enables the good lead LEDs. After
pressing this button, the LEDs for good leads illuminate for 1 minute.
D Battery
compartment
Holds 2 AA alkaline batteries. The sliding cover of the compartment also functions as the on/off switch.
E Interface
connector
ports
The interface connector ports (on the end of the transmitter) are used to connect the transmitter to the APEX
Programming Device. The TTX number and desired reference lead are programmed using the APEX Programming
Device. These interface connector ports may also be used to connect additional parameter devices to the
transmitter.
