GE AvantaPure - Equipment Installation

10
Equipment Installation

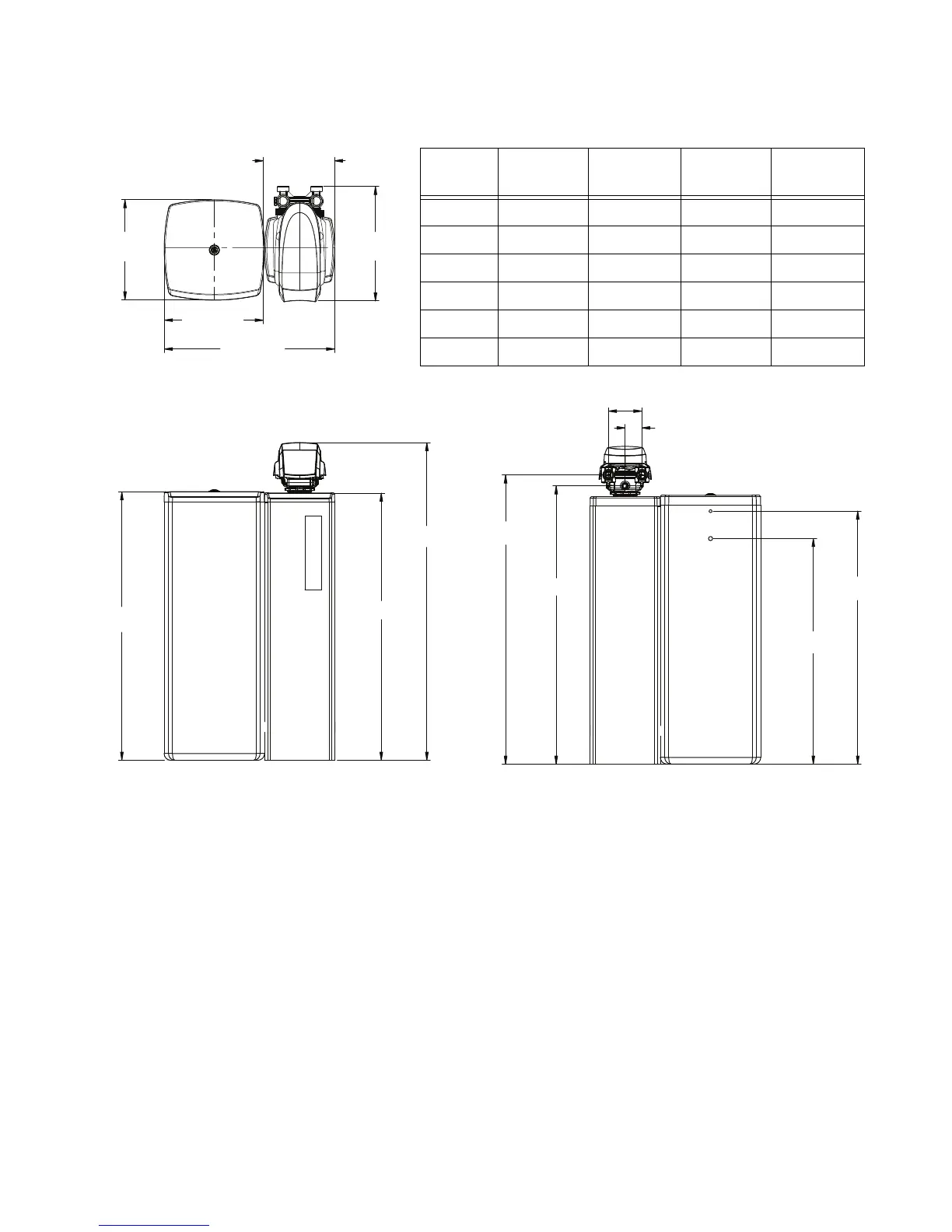

Dimensions
Figure 4
A
B
40.1 (101.8)
17.1 (43.4)
14.9 (37.8)
14.8 (37.5)
10.6 (26.9)
25.4 (64.5)
5 (12.7)
2.5 (6.3)
D
C
E
F
In (cm)
Dimension
10 x 40" Tank
(25 x 102 cm)
10 x 44" Tank
(25 x 112 cm)
10 x 54" Tank
(25 x 137 cm)
10 x 54" Filter
(25 x 137 cm)
A 39.9 (101) 43.9 (111) 53.9 (137) 53.9 (137)
B 47.4 (120) 51.4 (130) 61.4 (156) 61.4 (156)
C 43.2 (110) 47.2 (120) 57.2 (145) 57.2 (145)
D 41.6 (106) 45.6 (116) 55.6 (141) 55.6 (141)
E 33.7 (85.6) 33.7 (85.6) 33.7 (85.6) —
F 37.8 (96) 37.8 (96) 37.8 (96) —
