Installation Instructions

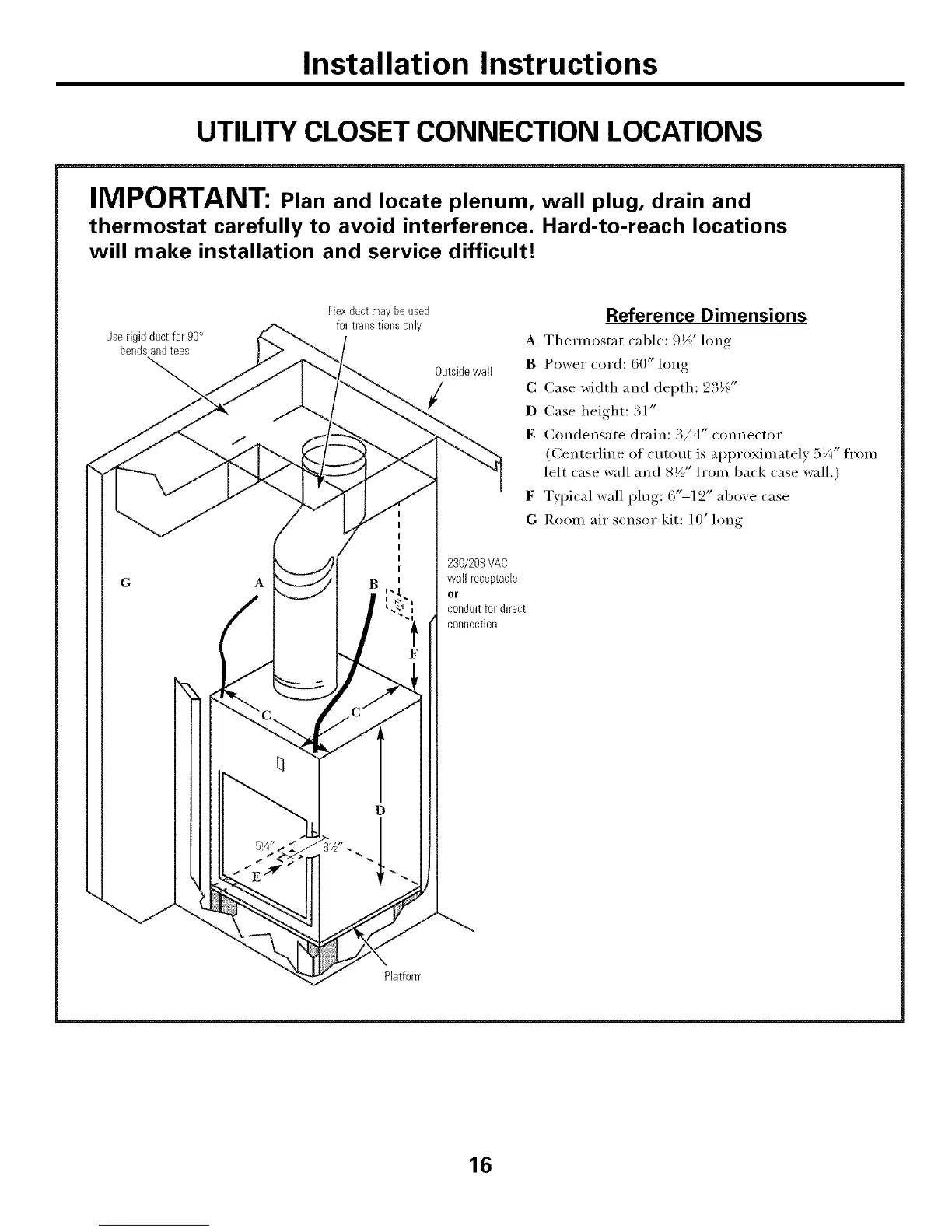

UTILITY CLOSET CONNECTION LOCATIONS
IMPORTANT: Plan and locate plenum, wall plug, drain and
thermostat carefully to avoid interference. Hard-to-reach locations
will make installation and service difficult!
Userigid ductfor 90°
bendsand tees
Flexduct roaybe used
for transitionsonly
Outsidewall
/
I
I
I
I
I
D
230/208VAC
wall receptacle
or
conduit for direct
connection
Reference Dimensions
A Them/ostat cable: 9½' long
B Power cord: 60" long
C Case width and depth: 23½"
D Case height: 31"
E (_ondensate drain: 3/4" connector
(Cei_terline of cutout is approxinmtely 5¼" from
left case wall and 8½" fl'om back case wall.)
F Typical wall plug: 6"-12" above case
G Room air sensor kit: 10' long
Platform
16
