– 39 –
The door lock motor has an approximate resistance
value of 3 k.
(Continued next page)
To remove the upper oven door lock assembly
(Café models):
1. Remove the cooktop. (See
Cooktop.)
2. Remove the heat shield and ber barrier to
expose a cover over the latch assembly. (See
Touch Panel and Electronic Range Control (ERC),
steps 6-7.)

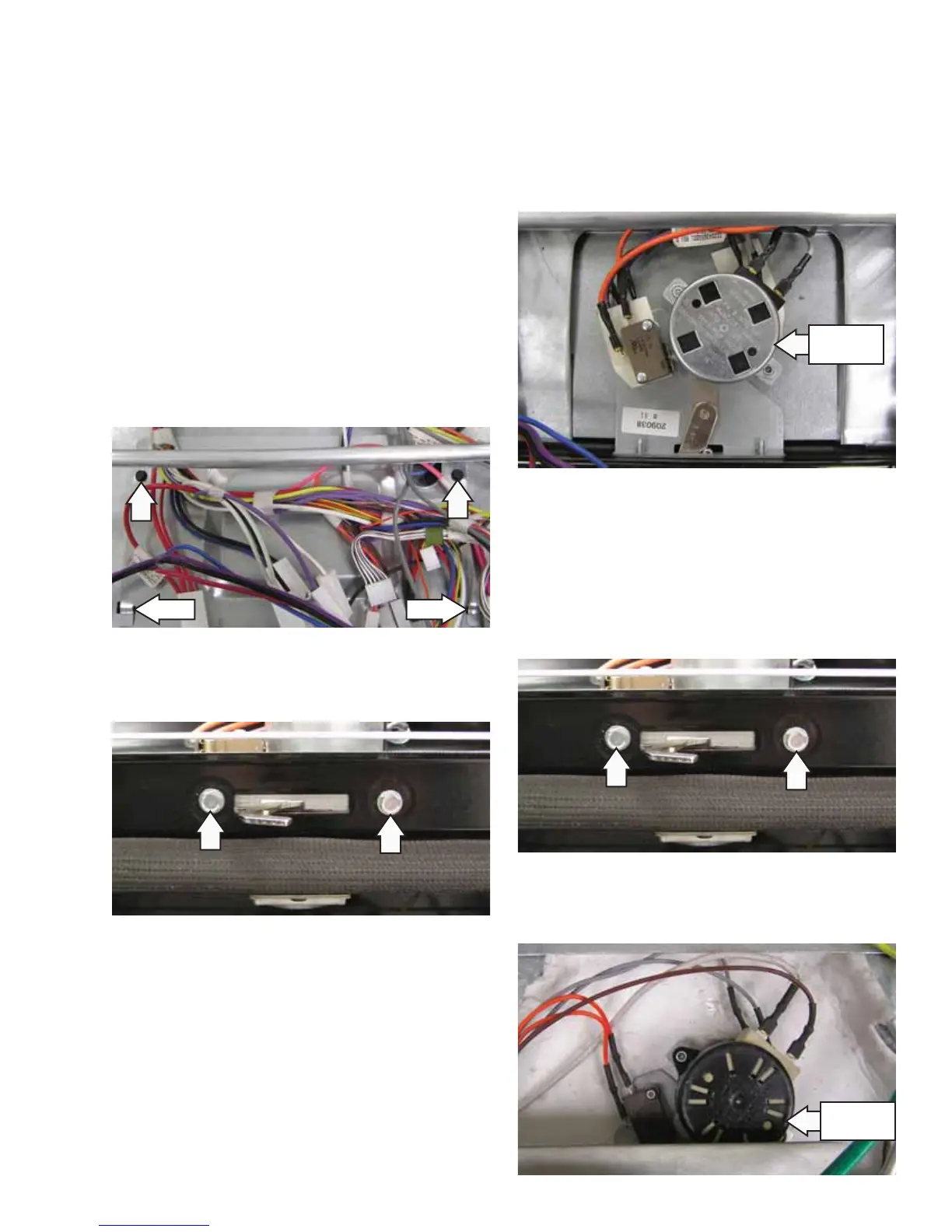

3. Remove the two 1/4-in. hex-head screws from
the lock assembly cover.
4. Slide the lock assembly cover back to release it
from the tabs.
TabTab
5. Remove the two 1/4-in. hex-head screws
holding the door lock assembly to the frame.
Door Lock
Assembly
Caution: It is possible to connect the switch wiring
incorrectly to the lock assembly. When connecting
the wiring, make sure it is properly connected to the
lock assembly before turning the power back on.
6. Remove the door lock assembly from the range,
then mark and disconnect the 8 wires.
To remove the upper oven door lock assembly
(Pro le and GE models):
1. Remove the cooktop. (See Cooktop.)
2. Remove the two 1/4-in. hex-head screws
holding the door lock assembly to the frame.
3. Remove the door lock assembly from the range,
then mark and disconnect the 6 wires.
Door Lock
Assembly
