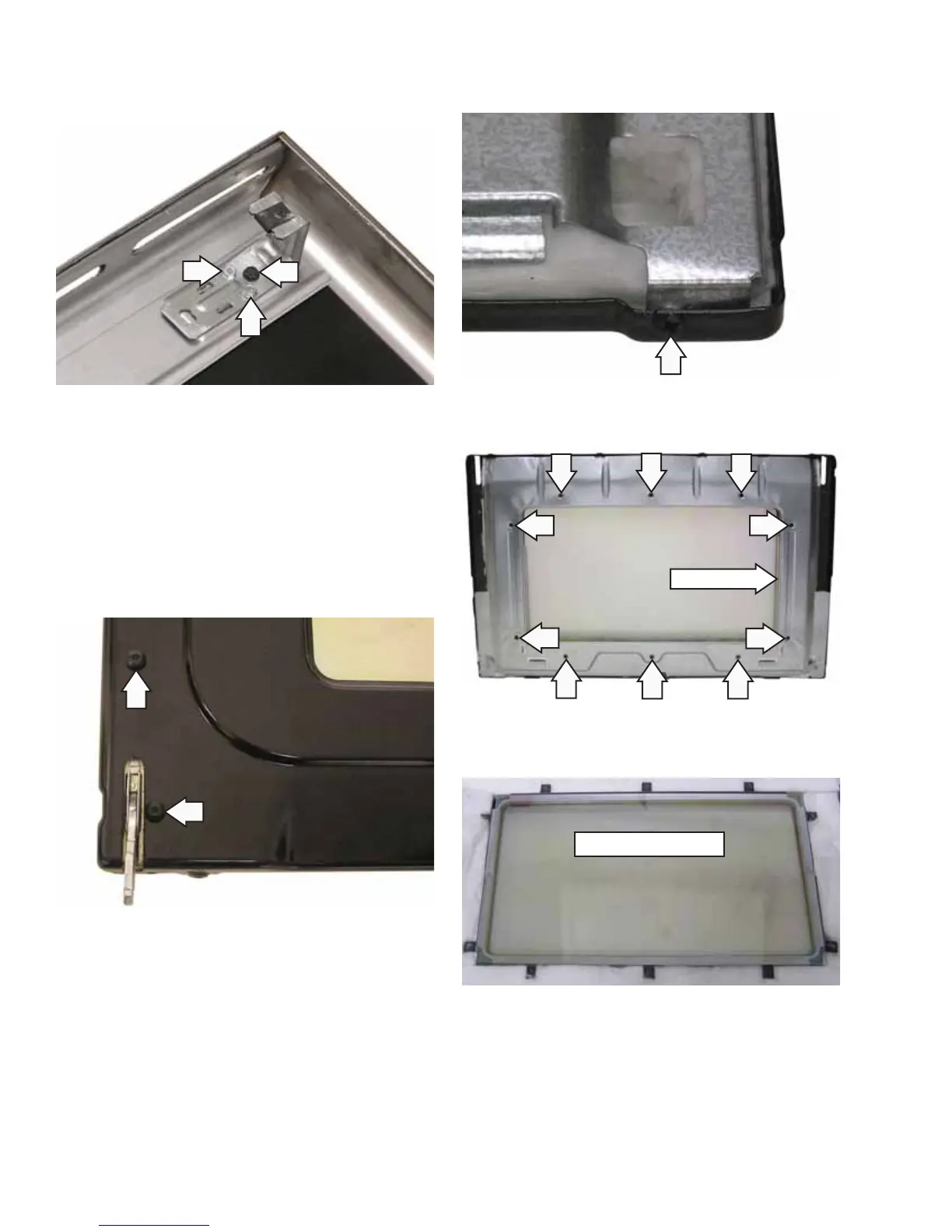

To replace the lower inner door assembly:
1. Remove the outer door assembly. (See To
remove the lower outer door assembly.)
2. Remove the four T-15 Torx screws (2 on each
side) that attach each door hinge to the inner
door. Carefully turn the door over and remove
both door hinges.
3. Remove the 2 Phillips-head screws (1 on each
side) from the bottom of the inner door.
(Continued next page)
6. Remove the six 1/4-in. hex-head screws (3 on
each side) that hold the door handle to the outer
door assembly.
4. Remove the 10 Phillips-head screws and the
heat barrier from the inner door panel.
5. Remove the inner glass assembly from the inner
door.
Heat Barrier
Inner Glass Assembly
