– 45 –
6. Remove the door gasket and insulation from the
inner door.
Insulation
Door Gasket

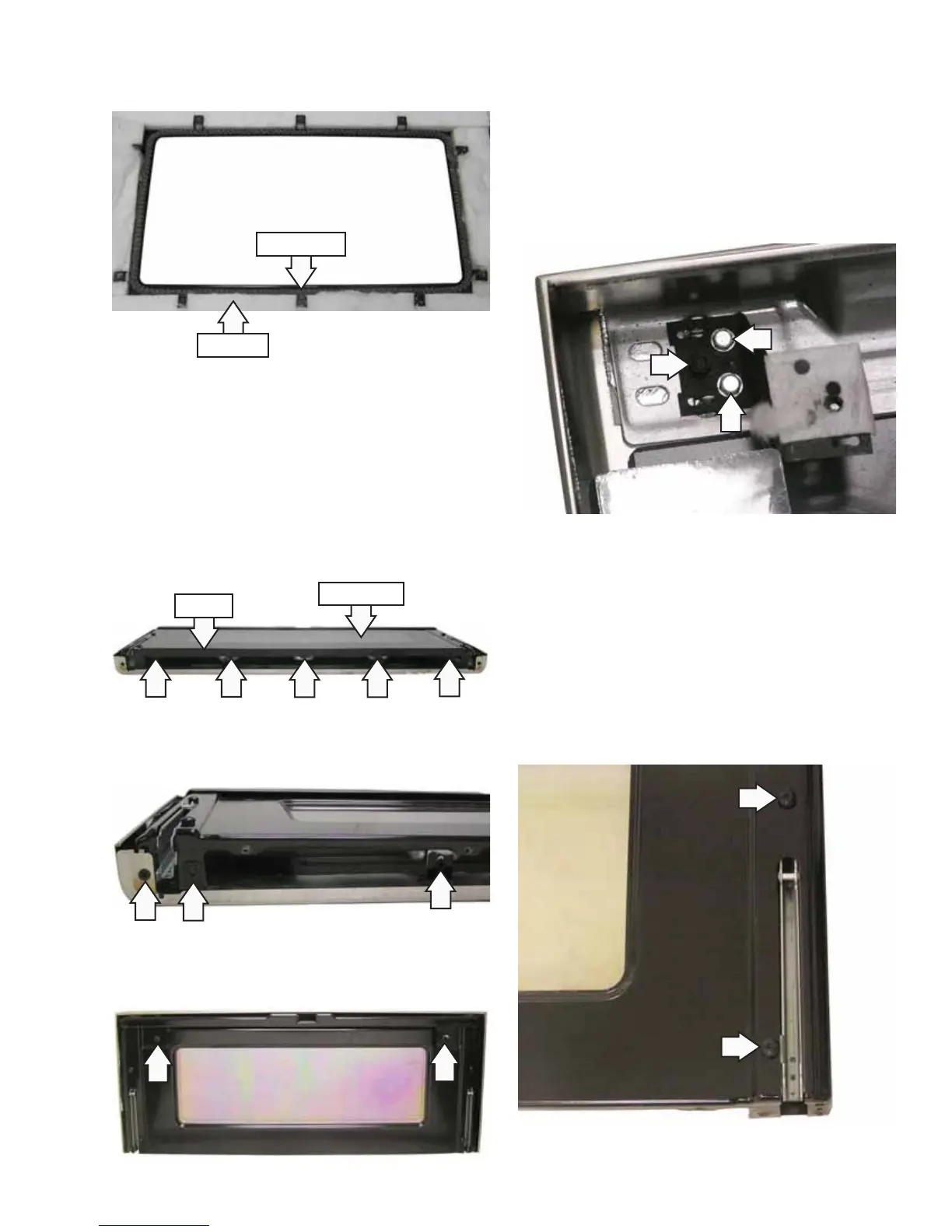

To remove the upper outer door assembly:
1. Remove the door. (See Oven Door Removal.)
2. Place the door assembly on a protective surface
with the gasket side up.
3. Remove the 5 Phillips-head screws, bracket, and
inner glass panel.
Bracket
Glass Panel
4. Remove the 6 Phillips-head screws (3 on each
side) from the bottom of the outer door.
5. Remove the 2 Phillips-head screws from the
inner door.
Note: The inner door assembly is heavier than the
outer door assembly.
6. Separate the inner door assembly from the
outer door assembly.
7. Remove the six 1/4-in. hex-head screws (3 on
each side) that hold the door handle to the outer
door.
(Continued next page)
To replace the upper inner door assembly:
1. Remove the outer door assembly. (See To
remove the upper outer door assembly.)
2. Remove the four T-15 Torx screws (2 on each
side) that attach each door hinge receiver to
the inner door. Carefully turn the door over and
remove both door hinge receivers.
To Next Page
