– 50 –
The lock valve is a ball-type valve that rotates
1/4 turn per command. The ball, placed in the
passageway (thru which gas fl ows), has a hole thru
it that enables the valve to open and close. When
the ball is positioned with its hole lined up with the
passageway, the gas fl ows thru the hole and the
valve is considered open. When the ball is positioned
so the hole is perpendicular to the passageway, the
gas cannot pass thru and the valve is considered
closed. The ball is controlled by the cam located
outside the valve.

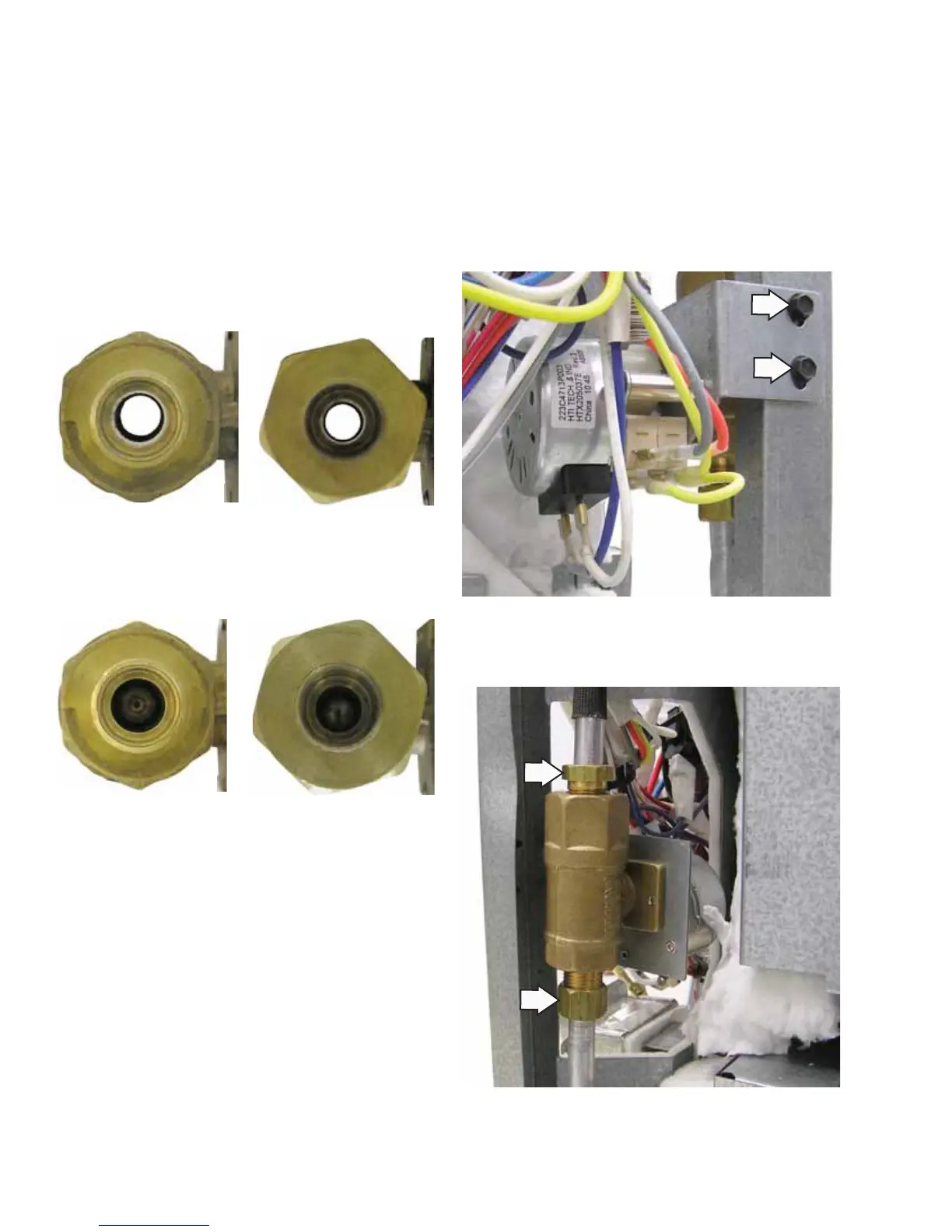

BALL POSITION – LOCKOUT VALVE OPEN
INLET VIEW
OUTLET VIEW
INLET VIEW
OUTLET VIEW
BALL POSITION – LOCKOUT VALVE CLOSED
On café models, the resistance of the lock motor
can be checked by removing the rear cover. (See
Rear Cover.) The lock motor has an approximate
resistance value of 2.1 k.
On Profi le and GE models, the resistance of the lock
motor can be checked on the ERC. Place the control
panel in the service position. (See Touch Panel and
Electronic Range Control (ERC).) Test between N and
COOK for the approximate resistance value.
5. Use an 11/16-in. wrench to disconnect the inlet
and outlet tube hex-head nuts from the valve.
To remove the lockout valve:
1. Remove the rear cover. (See Rear Cover.)
2. Remove the left side panel. (See Side Panel.)
3. Mark and disconnect the 6 wires from the
lockout valve.
4. Remove the two 1/4-in. hex-head screws from
the lockout valve bracket.
To Next Page
