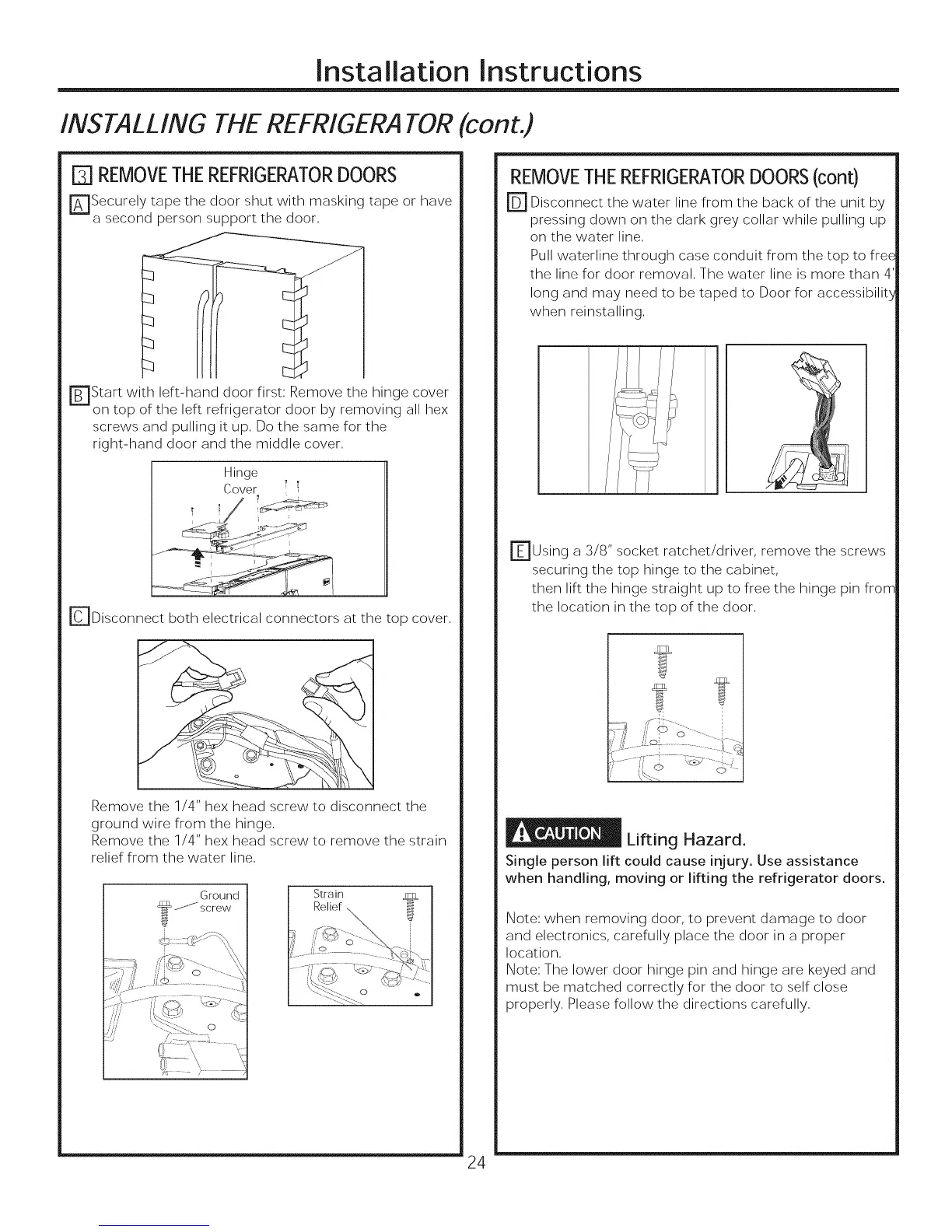

Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
r_ REMOVETHEREFRIGERATORDOORS
r_Securely tape the door shut with masking tape or have
a second person support the door,
r_Start with left-hand door first; Remove the hinge cover
on top of the left refrigerator door by removing all hex
screws and pulling it up, Do the same for the
right-hand door and the middle cover,
Hinge
Cover _
r_Disconnect both electrical connectors at the top cover,
Remove the 1/4" hex head screw to disconnect the
ground wire from the hinge,
Remove the 1/4" hex head screw to remove the strain
relief from the water line,
Ground
j jr screw
Strain ]
Relief ?
.... o ....
REMOVETHEREFRIGERATORDOORS(cont}
r_ Disconnect the line from the back of the unit
water
by
pressing down on the dark grey collar while pulling up
on the water line,
Pull waterline through case conduit from the top to frec
the line for door removal, The water line is more than 4'
long and may need to be taped to Door for accessibilit)
when reinstalling,
/
r_using a 3/8" socket ratchet/driver, remove the screws
securing the top hinge to the cabinet,
then lift the hinge straight up to free the hinge pin frorr
the location in the top of the door,
Lifting Hazard.
Single person lift could cause injury. Use assistance
when handling, moving or lifting the refrigerator doors.
Note: when removing door, to prevent damage to door
and electronics, carefully place the door in a proper
location,
Note: The lower door hinge pin and hinge are keyed and
must be matched correctly for the door to self close
properly, Please follow the directions carefully,
24
