GE cafe User Manual

Installation Instructions

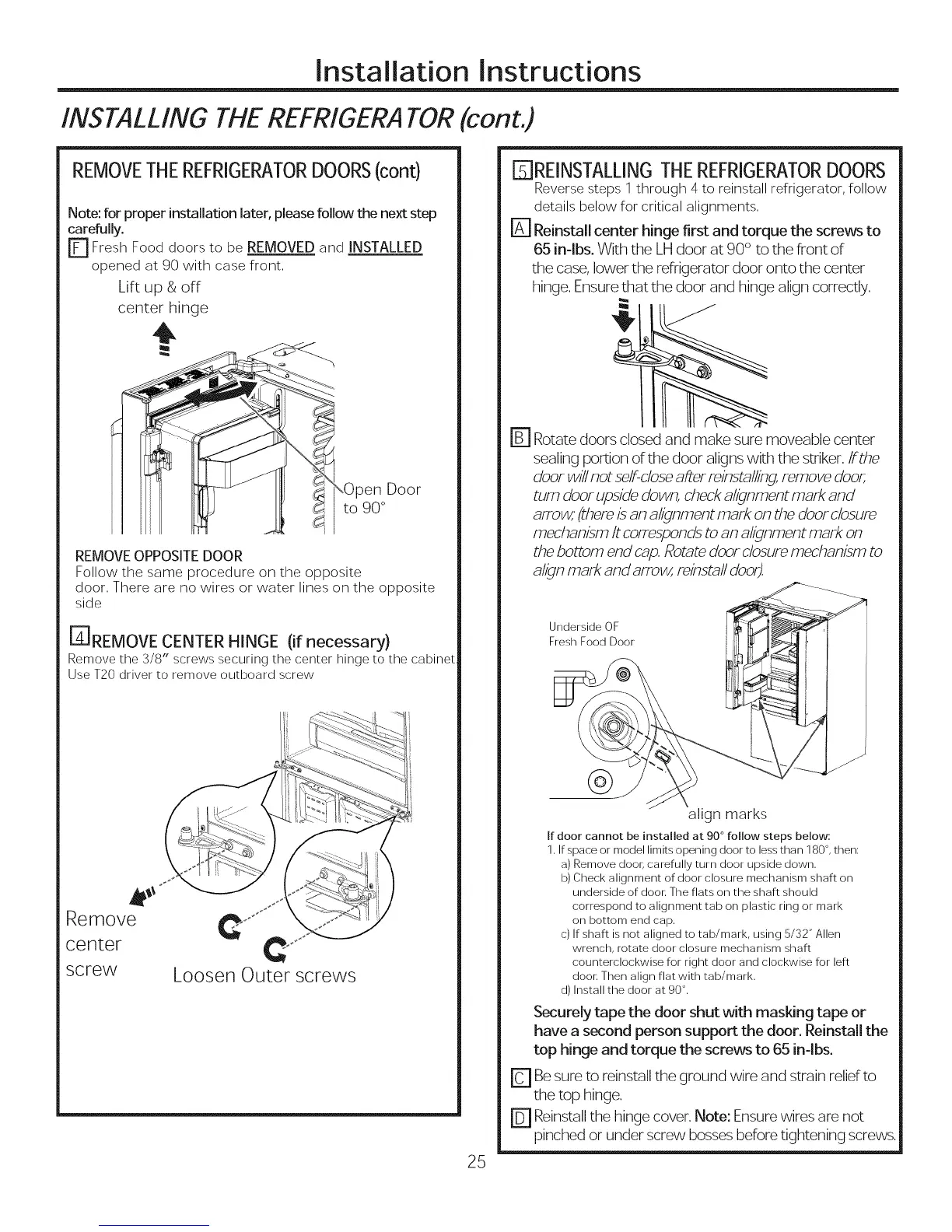

INSTALLING THE REFRIGERATOR (cont.)
REMOVETHEREFRIGERATORDOORS(cent}
Note:for proper installation later, pleasefollow the next step
carefully.
r_ Fresh Food doors to be REMOVEDand INSTALLED
opened at 90 with case front,
Lift up & off
center hinge
)en Door
to 90°
REMOVE OPPOSITE DOOR
Follow the same procedure on the opposite
door, There are no wires or water lines on the opposite
side
F]REMOVE CENTER HINGE (if necessary)
Remove the 3/8" screws securing the center hinge to the cabinet,
Use T20 driver to remove outboard screw
Remove
center
screw Loosen Outer screws
25
[ REINSTALLINGTHEREFRIGERATORDOORS
Reversesteps 1through 4 to reinstall refrigerator, follow
details below for critical alignments.
r_ Reinstall center hinge first and torque the screws to
65 in-lbs. With the LHdoor at 90° to the front of
the case, lower the refrigerator door onto the center
hinge. Ensurethat the door and hinge align correctly.
r_ Rotate doors closed and make sure moveable center
sealing portion of the door aligns with the striker./fthe
door w/71not self-closeafter reinstalling,remove door,
turn door upside down, check alignment mark and
arrow; (thereis an alignment mark on the door closure
mechanism It corresponds to an alignment mark on
the bottom end cap. Rotate door closure mechanism to
align mark and arrow, reinstall door).
Underside OF
Fresh Food Door i_
align marks
If door cannot be installed at 90 ° follow steps below:
1. If space or model limits opening door to less than 180", then:
a) Remove door, carefully turn door upside down.
b) Check alignment of door closure mechanism shaft on
underside of door. The flats on the shaft should
correspond to alignment tab on plastic ring or mark
on bottom end cap.
c) If shaft is not aligned to tab/mark, using 5/32" Allen
wrench, rotate door closure mechanism shaft
counterclockwise for right door and clockwise for left
door. Then align flat with tab/mark.
d) Install the door at 90 _'.
Securely tape the door shut with masking tape or
have a second person support the door. Reinstall the
top hinge and torque the screws to 65 in-lbs.
FC]Be sure to reinstall the ground wire and strain relief to
the top hinge.
r_ Reinstallthe hinge cover, Note; Ensure wires are not
pinched or under screw bosses before tightening screws,
